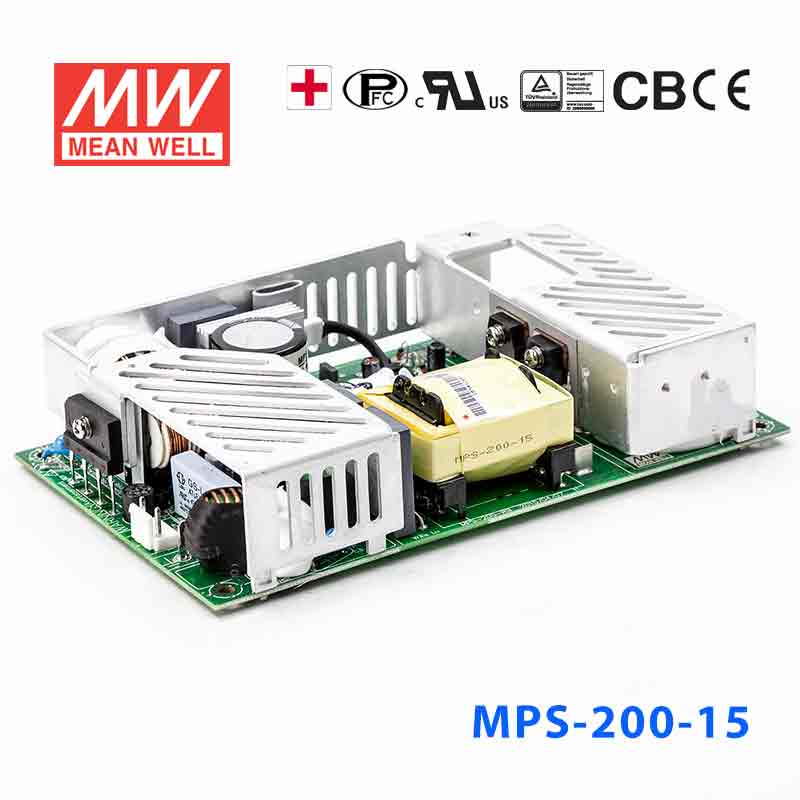

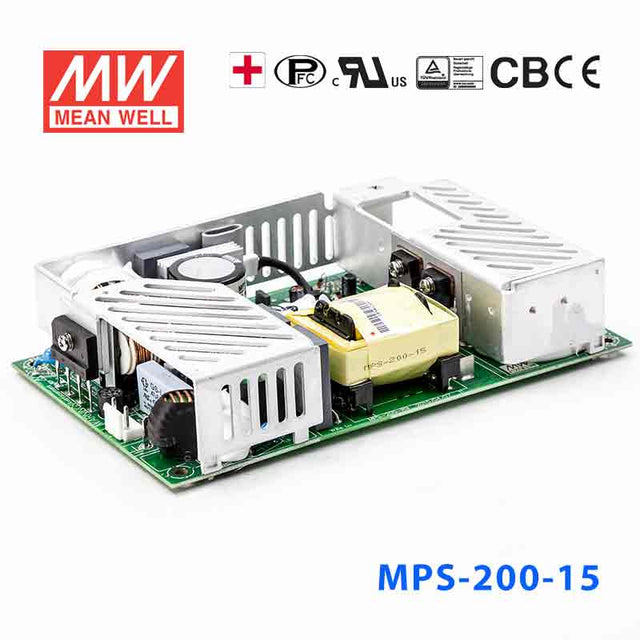

Mean Well MPS-200-15 Power Supply 200W 15V he rated current is base...
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-200-15 for 15V industrial control equipment?
Yes, this model provides a constant 15V output up to 13.4A, with 200W total capacity. It is a fit for 15V industrial electronics and automation loads that specifically require a regulated 15V DC source.
Is the MPS-200-15 suitable for a higher-load 15V embedded system?
It can be used where a 15V embedded system needs up to 13.4A and 200W. Compared with lower-power 15V versions in the series, this model is intended for substantially heavier 15V DC demand.
Can this power supply run multiple 15V devices in an automation cabinet?
Yes, provided the total load remains within 13.4A at 15V and does not exceed 200W. The 90-264VAC input range also makes it suitable for installations fed from a broad range of AC mains inputs.
Is this model appropriate for outdoor installations?
The operating temperature is specified at -20°C to +70°C, which defines the thermal range. However, no IP rating is listed in the provided specs, so outdoor or moisture-exposed use is not confirmed by the available data.
How does the MPS-200-15 compare to the other 15V models in this series?
The listed 15V models are MPS-30-15 at 30W and 2A, MPS-45-15 at 45W and 3A, MPS-65-15 at 63W and 4.2A, MPS-120-15 at 120W and 8A, and MPS-200-15 at 200W and 13.4A. This unit is the highest-capacity 15V version in that group.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. | 200W | 5V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-48 Power Supply 200W 48V he rated current is based on there being a fan that can provide 25CFM. | 200W | 48V | 4.2A | Indoor | $135.48 | View |
| Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 132W | 3.3V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-24 Power Supply 200W 24V he rated current is based on there being a fan that can provide 25CFM. | 200W | 24V | 8.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-12 Power Supply 200W 12V he rated current is based on there being a fan that can provide 25CFM. | 200W | 12V | 16.7A | Indoor | $135.48 | View |
