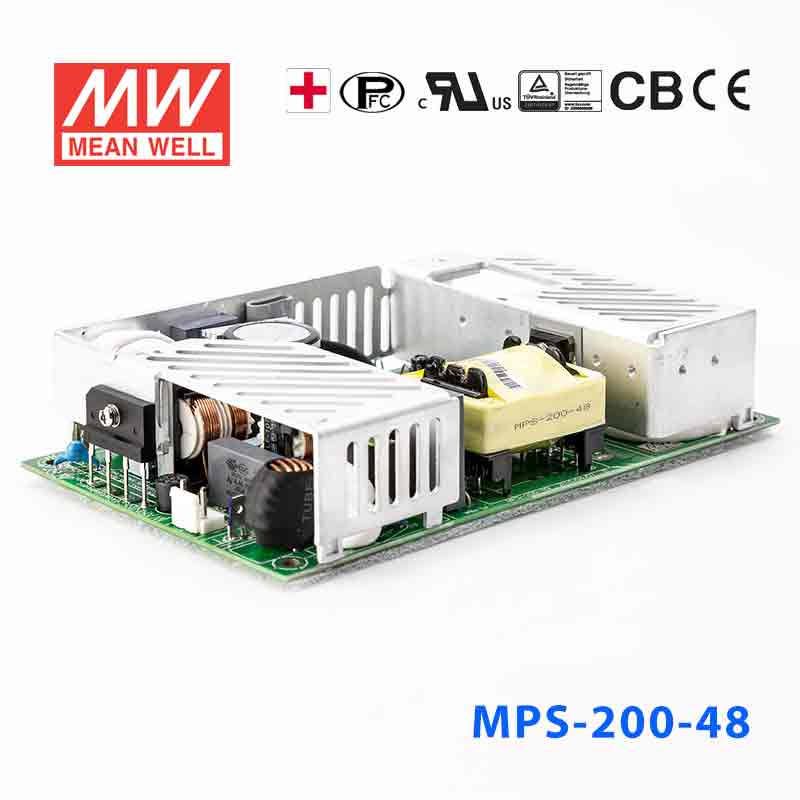

Mean Well MPS-200-48 Power Supply 200W 48V he rated current is base...
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage48 Volt
-
Rated Current4.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can I use the MPS-200-48 for 48V industrial automation or control systems?
Yes, this model provides 48V constant-voltage output at 200W and 4.2A. It is suitable for 48V automation, control, and industrial electronics that are designed for a 48V DC supply within that output range.
Is the MPS-200-48 appropriate for 48V networking or telecom equipment?
It can be a fit for 48V telecom, networking, and communications hardware that expects a constant 48V DC input. The 4.2A output gives more current capacity than smaller 48V models when a single supply needs to support a heavier 48V load.
Would this 48V power supply work for embedded or industrial PoE-adjacent systems that run on 48V DC?
It is suitable for embedded and industrial systems that take a 48V constant-voltage input and stay within 200W and 4.2A. Buyers typically choose this type of output where 48V distribution is preferred over lower-voltage, higher-current rails.
Can the MPS-200-48 power a 48V bench setup or validation rig?
Yes, it can serve as a 48V source for development benches, validation rigs, and industrial test equipment that need a constant-voltage supply. Its 90-264VAC input is useful when the bench may be operated from different AC mains sources.
Is the MPS-200-48 rated for outdoor exposure?
The published specs include an operating temperature range of -20°C to +70°C, but no IP rating is listed. That points to indoor or enclosure-protected use instead of direct outdoor exposure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. 40A | 200W | 5V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is based on there being a fan that can provide 25CFM. 40A | 132W | 3.3V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-24 Power Supply 200W 24V he rated current is based on there being a fan that can provide 25CFM. 8.4A | 200W | 24V | 8.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-15 Power Supply 200W 15V he rated current is based on there being a fan that can provide 25CFM. 13.4A | 200W | 15V | 13.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-12 Power Supply 200W 12V he rated current is based on there being a fan that can provide 25CFM. 16.7A | 200W | 12V | 16.7A | Indoor | $135.48 | View |
