Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

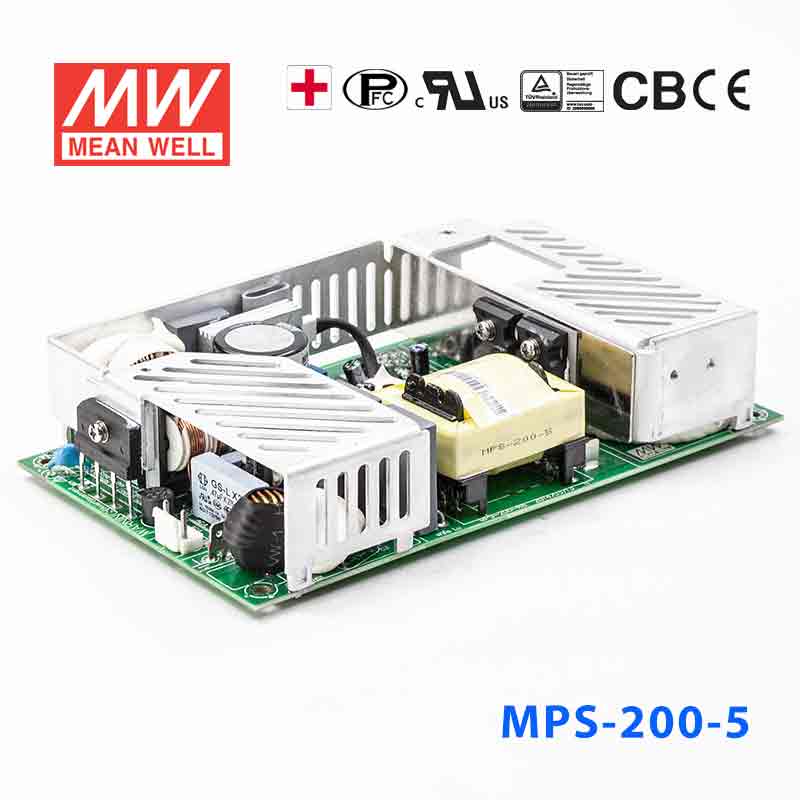

Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based ...
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-200-5 for 5V industrial controllers or logic hardware?
Yes, this is a 5V constant-voltage supply rated for 200W and 40A. It suits high-current 5V industrial logic, controller boards, and processing hardware that need a regulated 5V DC source within that output capacity.
Is the MPS-200-5 suitable for powering multiple 5V single-board computers or embedded devices?
It can be, as long as the combined 5V load stays within 200W and 40A. The high current output makes it useful for grouped 5V embedded systems, production fixtures, and compute-oriented electronics that draw more current than small desktop adapters provide.
Would this model work for 5V USB-adjacent control electronics or industrial peripherals?
It is appropriate for 5V control electronics and peripherals that require a constant-voltage DC bus and remain within the 40A maximum output current. In industrial and embedded settings, 5V models like this are commonly used where many low-voltage loads share one central supply.
Can the MPS-200-5 be used in a factory test station for 5V boards?
Yes, it is a practical option for 5V board test stations, burn-in racks, and embedded validation setups that need a stable 5V source. The 200W rating gives it substantially more output capacity than smaller 5V supplies in the same series.
Is the MPS-200-5 intended for outdoor environments?
The unit is specified for -20°C to +70°C operation, but no IP rating is shown in the product data. It should therefore be treated as a supply for indoor or protected enclosure use rather than exposed outdoor service.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-48 Power Supply 200W 48V he rated current is based on there being a fan that can provide 25CFM. | 200W | 48V | 4.2A | Indoor | $135.48 | View |
| Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 132W | 3.3V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-24 Power Supply 200W 24V he rated current is based on there being a fan that can provide 25CFM. | 200W | 24V | 8.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-15 Power Supply 200W 15V he rated current is based on there being a fan that can provide 25CFM. | 200W | 15V | 13.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-12 Power Supply 200W 12V he rated current is based on there being a fan that can provide 25CFM. | 200W | 12V | 16.7A | Indoor | $135.48 | View |
