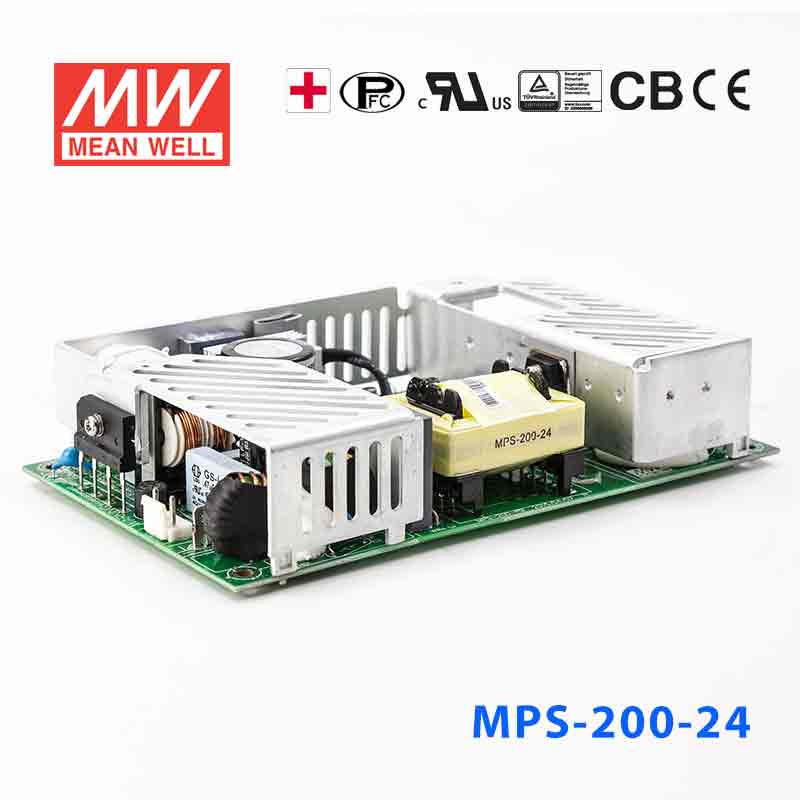

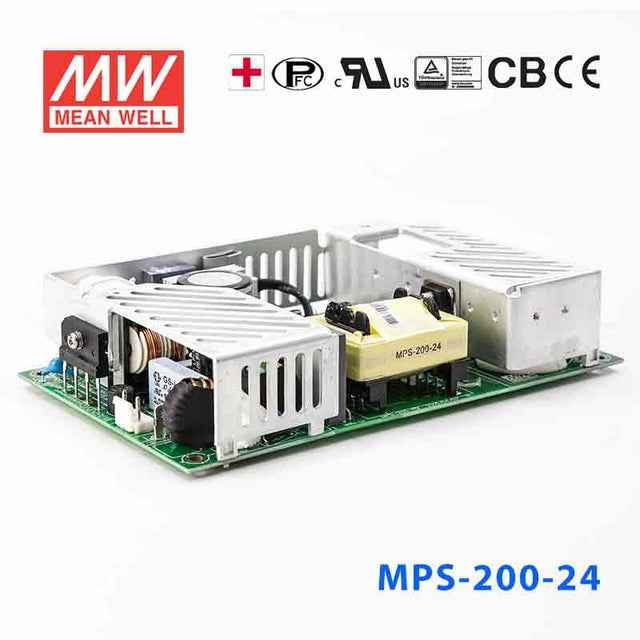

Mean Well MPS-200-24 Power Supply 200W 24V he rated current is base...
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-200-24 for a 24V PLC or industrial control cabinet?
Yes, this model is a 24V constant-voltage power supply rated for 200W and 8.4A. That makes it suitable for 24V PLCs, control panels, relays, sensors, and other industrial automation loads that require a 24V DC bus within that output rating.
Is the MPS-200-24 a good fit for 24V embedded systems or test benches?
It can be a practical fit for 24V embedded equipment, development fixtures, and lab benches that need a stable 24V constant-voltage source. The 200W and 8.4A rating gives more headroom than lower-power 24V models when several 24V devices share one supply.
Can this 24V power supply run multiple 24V automation devices from one source?
Yes, if the combined 24V load stays within 200W and 8.4A. It is intended for constant-voltage operation, so it is suited to grouped 24V control and embedded loads that are designed to share a 24V DC supply.
Would the MPS-200-24 work for 24V HMI, IPC, or industrial communication equipment?
It is appropriate for 24V HMI panels, industrial PCs, communication hardware, and other control electronics that accept a 24V DC input. The wide 90-264VAC input also helps when the AC source varies across different facilities or regions.
Is the MPS-200-24 suitable for outdoor or harsh-environment use?
The listed specs show an operating temperature range of -20°C to +70°C, but no IP rating is provided. That means it is better treated as a supply for indoor or protected enclosures rather than exposed outdoor locations.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. | 200W | 5V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-48 Power Supply 200W 48V he rated current is based on there being a fan that can provide 25CFM. | 200W | 48V | 4.2A | Indoor | $135.48 | View |
| Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is based on there being a fan that can provide 25CFM. | 132W | 3.3V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-15 Power Supply 200W 15V he rated current is based on there being a fan that can provide 25CFM. | 200W | 15V | 13.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-12 Power Supply 200W 12V he rated current is based on there being a fan that can provide 25CFM. | 200W | 12V | 16.7A | Indoor | $135.48 | View |
