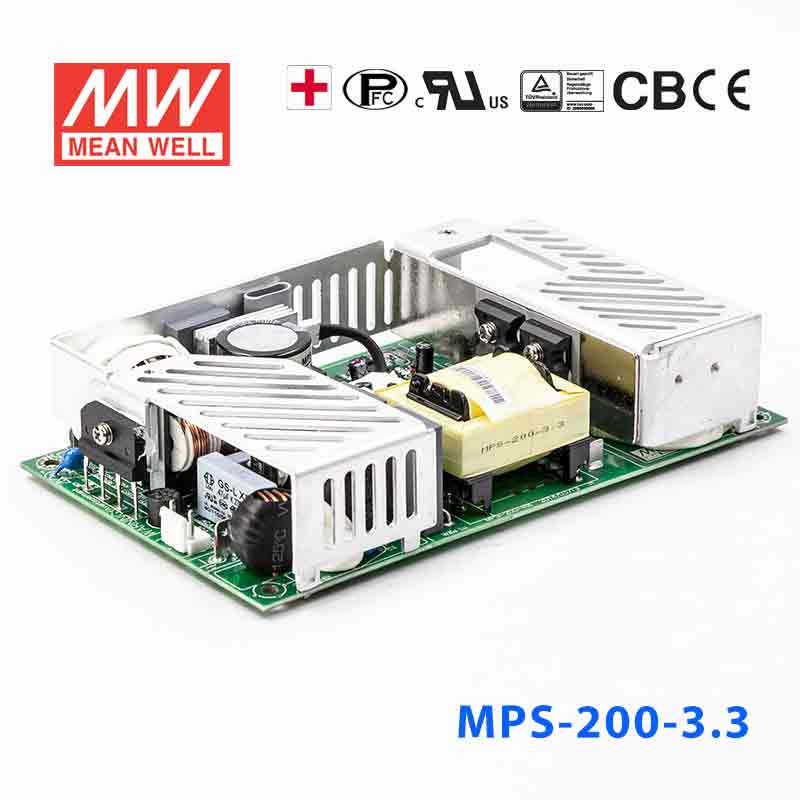

Mean Well MPS-200-3.3 Power Supply 132W 3.3V he rated current is ba...
Description
Description
MEAN WELL MPS-200 Series Power Supplies are 200W medical type power supplies with high reliability and 3 years warranty.
Key Features
- ✓Universal AC input
- ✓Full range
- ✓Low leakage Current<180uA
- ✓Protections:
- ✓Short circuit
- ✓Overload/Over voltage/Over temperature
- ✓Free air convection for 140W and forced air convection 200W
- ✓ANSI/AAMIES60601-1 medical safety approved
- ✓With power good and fail signal output
- ✓Built-in remote ON-OFF control
- ✓Built-in remote sense function
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating132 Watt
-
Output Voltage3.3 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7 in
-
Width4.22 in
-
Height1.4 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MPS-200-3.3 for 3.3V industrial logic or control electronics?
Yes, this is a 3.3V constant-voltage supply rated for 132W and 40A. It fits high-current 3.3V industrial logic, controller boards, and embedded electronics that need a regulated 3.3V rail within that output limit.
Is the MPS-200-3.3 suitable for FPGA, SBC, or embedded compute platforms that run on 3.3V?
It can be used where the equipment is designed for a 3.3V constant-voltage input and the total draw stays within 132W and 40A. The high current capacity makes it more suitable for dense 3.3V electronics than lower-current 3.3V models in the same series.
Can this power supply support multiple 3.3V boards in a production test fixture?
Yes, if the combined 3.3V load remains within 132W and 40A. That output profile is well aligned with factory test fixtures, embedded validation racks, and grouped low-voltage electronics that share a common 3.3V bus.
Would the MPS-200-3.3 work for telecom or networking control boards that need 3.3V DC?
It is a strong candidate for 3.3V telecom, networking, and processor-adjacent control boards that require a constant-voltage source. The 90-264VAC input also makes it easier to use in installations with different AC input standards.
Can the MPS-200-3.3 be used in outdoor cabinets or only indoors?
The operating temperature range is -20°C to +70°C, which supports a broad indoor equipment environment. Since no IP rating is listed, it should be used in a protected enclosure rather than an exposed outdoor location.
Other MPS-200 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPS-200-5 Power Supply 200W 5V he rated current is based on there being a fan that can provide 25CFM. | 200W | 5V | 40A | Indoor | $135.48 | View |
| Mean Well MPS-200-48 Power Supply 200W 48V he rated current is based on there being a fan that can provide 25CFM. | 200W | 48V | 4.2A | Indoor | $135.48 | View |
| Mean Well MPS-200-24 Power Supply 200W 24V he rated current is based on there being a fan that can provide 25CFM. | 200W | 24V | 8.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-15 Power Supply 200W 15V he rated current is based on there being a fan that can provide 25CFM. | 200W | 15V | 13.4A | Indoor | $135.48 | View |
| Mean Well MPS-200-12 Power Supply 200W 12V he rated current is based on there being a fan that can provide 25CFM. | 200W | 12V | 16.7A | Indoor | $135.48 | View |
