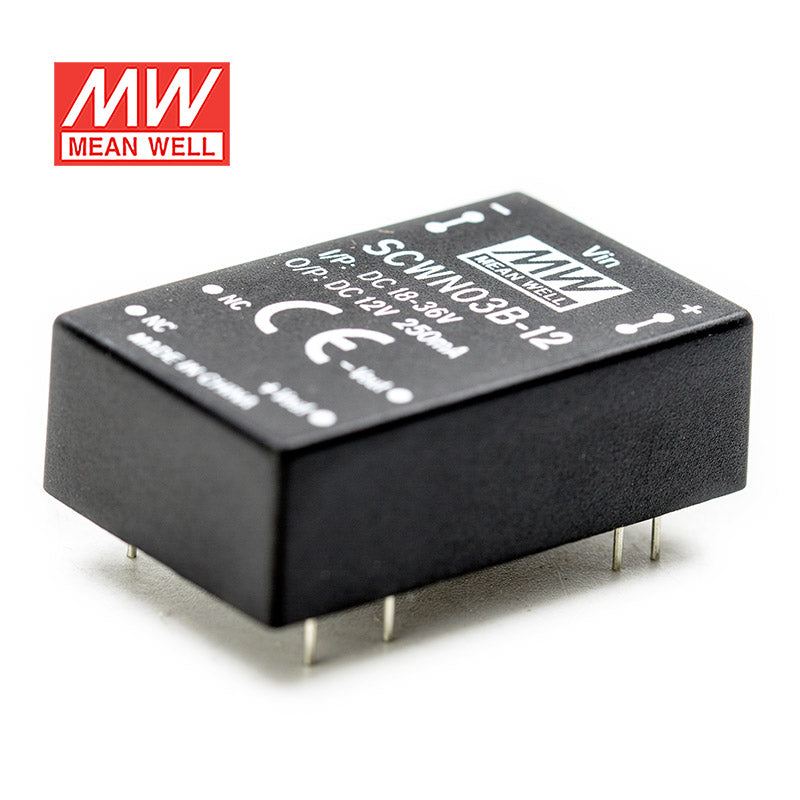

Mean Well SCWN03B-12 DC-DC Converter - 3W 18~36V DC in 12V out

$9.61 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

DIP24 package with industry-standard pinout
2:1 wide input range
Operating temperature range -40~+90°C
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protections: Short circuit(Continuous)/Overload/Input under voltage
3KVDC I/O isolation
3 years warranty

General Specification

Voltage set point accuracy ±1.5% (max.)
Line regulation ±0.5% (max.)
Load regulation Single output models:±0.5%, Dual output models:±1%
Overload protection 120%~250%, auto-recovery
Efficiency 87% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage I/P-O/P:3KVDC
I/O isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance 250pF (max.)
Working temperature -40~+90°C
Storage temperature -40°C to +105°C
EMC Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
Case material Non-conductive black plastic(UL 94V-0 rated)

Specifications

  • Brand
    Mean Well
  • Series
    SCWN Series
  • Power Rating
    3 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.25 Ampere
  • Input Voltage
    18V~36V
  • No of Output
    1
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    3 Year
  • Length
    1.25 in
  • Width
    0.8 in
  • Height
    0.4 in
  • Weight
    0.03 lb
