Description
Description
Features
DIP24 package with industry-standard pinout |
2:1 wide input range |
Operating temperature range -40~+90°C |
No minimum load required |
Comply to BS EN/EN55032 radiated Class A without additional components |
High efficiency up to 87% |
Protections: Short circuit(Continuous)/Overload/Input under voltage |
3KVDC I/O isolation |
3 years warranty |
General Specification
Voltage set point accuracy | ±1.5% (max.) |
Line regulation | ±0.5% (max.) |
Load regulation | Single output models:±0.5%, Dual output models:±1% |
Overload protection | 120%~250%, auto-recovery |
Efficiency | 87% (typical) |
Short circuit protection | Continuous, auto-recovery |
I/O isolation voltage | I/P-O/P:3KVDC |
I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
Isolation capacitance | 250pF (max.) |
Working temperature | -40~+90°C |
Storage temperature | -40°C to +105°C |
EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8 |
Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
Dimension (LxWxH) (mm) | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) |
Case material | Non-conductive black plastic(UL 94V-0 rated) |
Specifications
Specifications
-

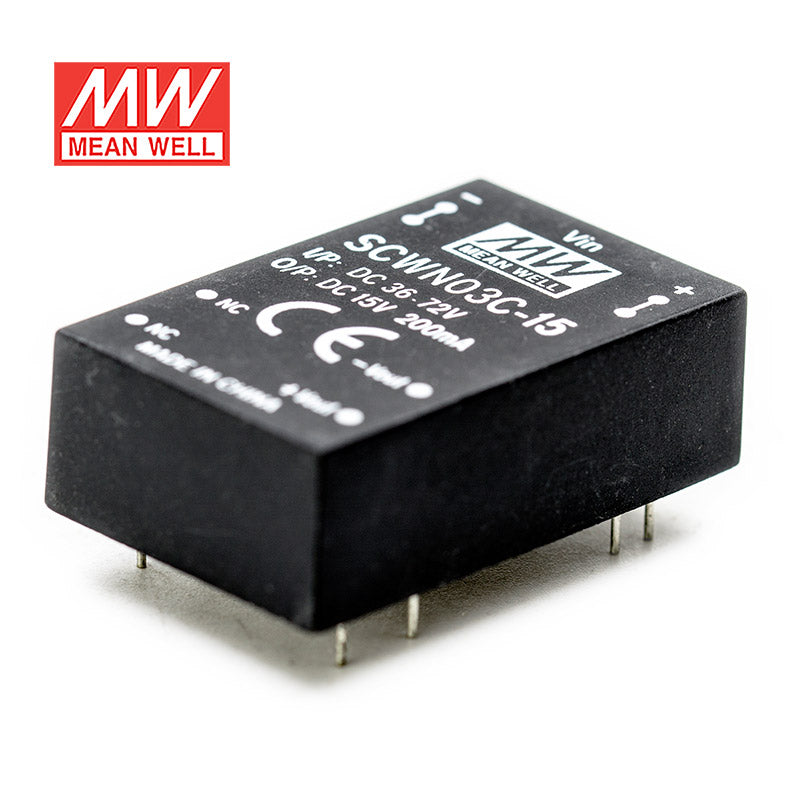

BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
