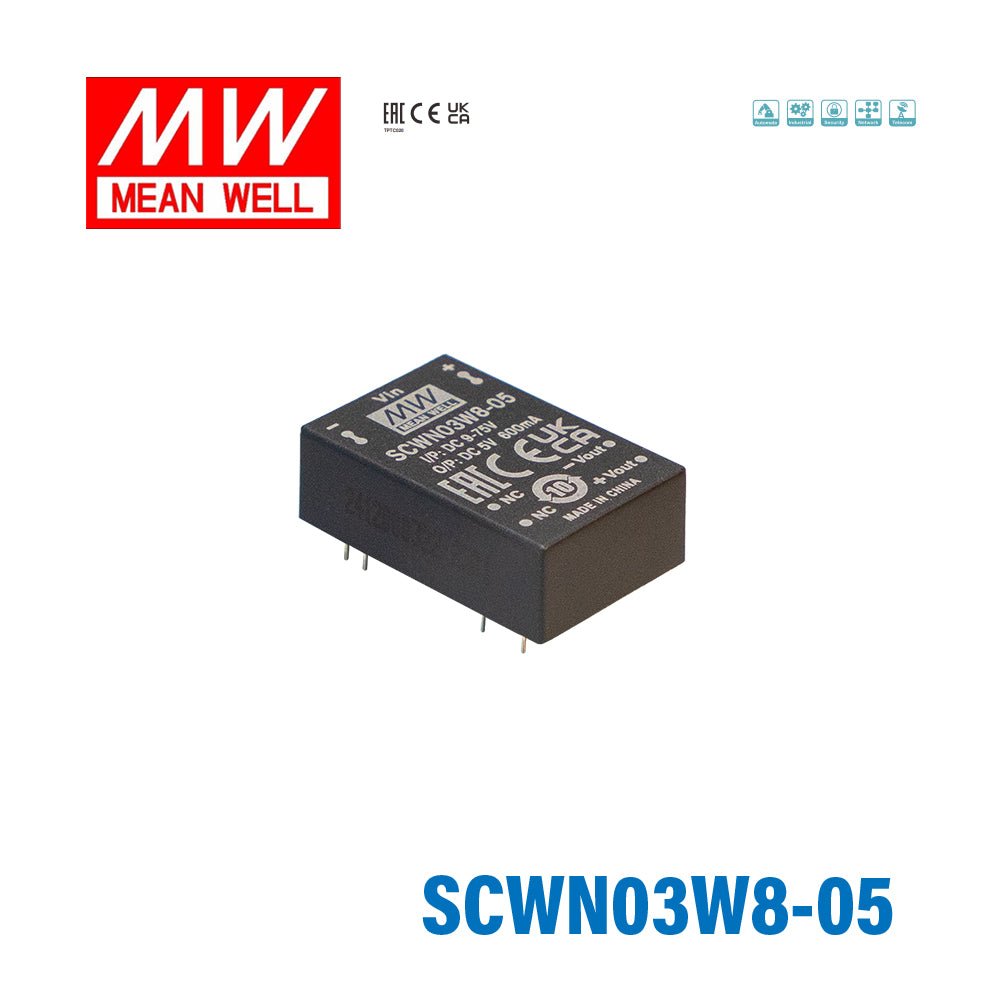

Mean Well SCWN03W8-05 DC-DC Converter - 3W 9~75V DC in 5V out
8:1(9~75VDC) ultra-wide input range, no minimum load required, 3KVdc I/O isolation
SKU:
SCWN03W8-05
$9.82 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SCWN03W8-05 DC-DC Converter - 3W 9~75V DC in 5V out
$9.82 USD
Unit price /
Unavailable
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9~75Vdc) ultra-wide input range
- ✓Operating temperature range -40 ~ +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓High efficiency up to 84%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
