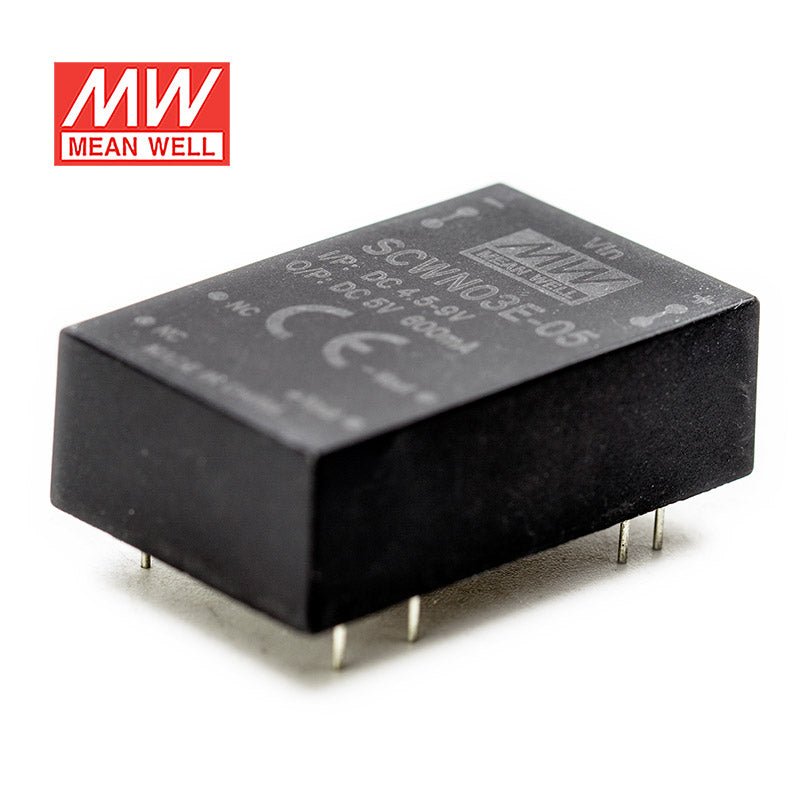

Mean Well SCWN03E-05 DC-DC Converter - 3W 4.5~9V DC in 5V out
Description
Description
The SCWN03E is a 3W Mean Well power converter (input range: 4.5~9Vdc).
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage4.5V~9V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SCWN03E-05 for a 5V industrial control board?
Yes, this converter provides a constant 5V output with up to 0.6A available. That makes it appropriate for low-power 5V control electronics that fit within the 3W rating.
Is this model suitable for 5V embedded computing or interface modules?
It is intended for low-power 5V embedded and interface circuits that require constant-voltage output. The load needs to stay within 3W total and within the 0.6A output current rating.
Can the SCWN03E-05 power 5V automation logic in a small enclosure?
It can be used for compact 5V automation logic where space is limited, since the converter measures 31.8 × 20.3 × 10.2 mm. It is best matched to low-power electronics rather than higher-demand 5V equipment.
How does the SCWN03E-05 compare with the other SCWN03E output options?
Each SCWN03E unit in this series is rated at 3W and shares the same physical size of 31.8 × 20.3 × 10.2 mm. The SCWN03E-05 outputs 5V at 0.6A, while the sibling models are 3.3V at 0.6A, 12V at 0.25A, and 15V at 0.2A.
Can this 5V converter be used in outdoor applications?
The operating temperature range is -40°C to +90°C, so it supports wide-temperature environments. However, no IP rating is provided in the specs, so the product information does not indicate outdoor or water-exposed use.
