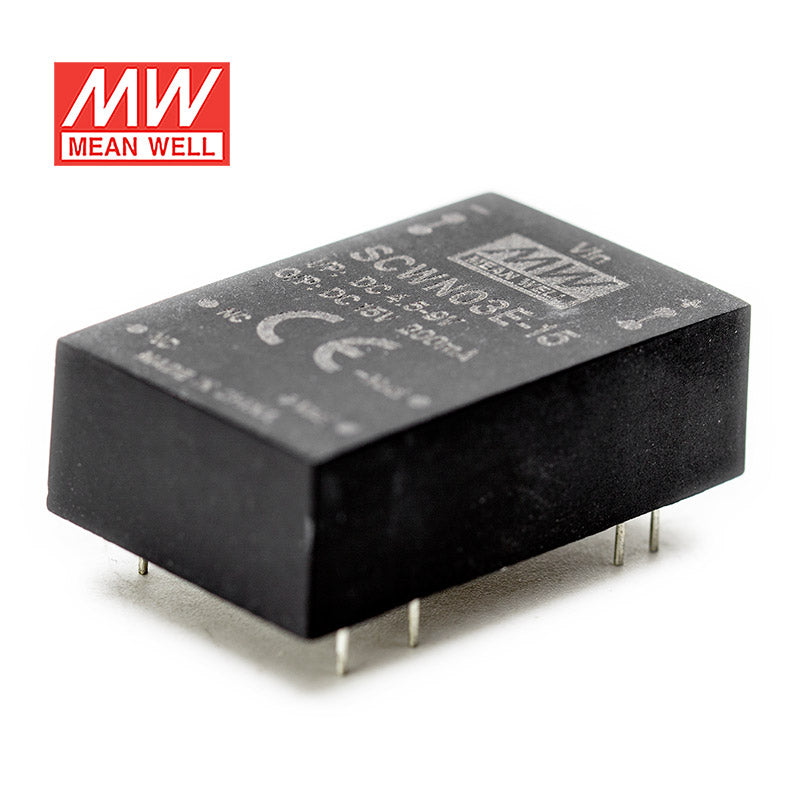

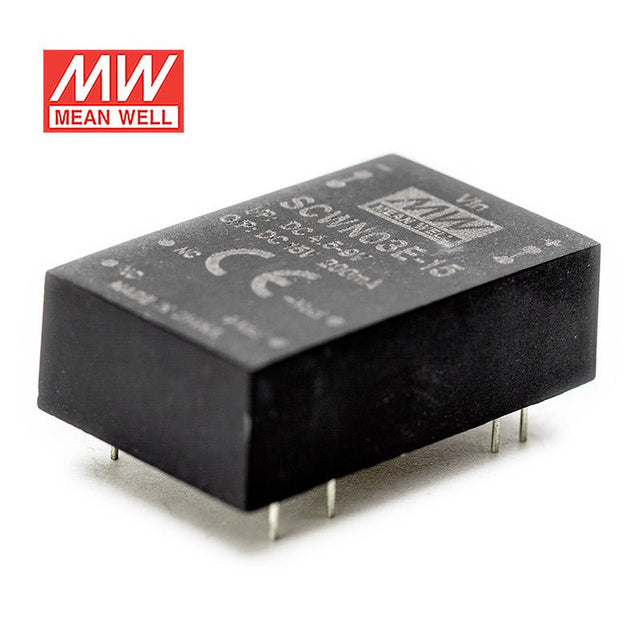

Mean Well SCWN03E-15 DC-DC Converter - 3W 4.5~9V DC in 15V out
Description
Description
The SCWN03E is a 3W Mean Well power converter (input range: 4.5~9Vdc).
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage4.5V~9V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.4 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SCWN03E-15 for low-power 15V analog or control circuitry?
Yes, this model provides constant 15V output and is rated for 3W total. Its 0.2A output current makes it appropriate for low-power 15V analog, measurement, or control electronics.
Is the SCWN03E-15 a good fit for small 15V instrumentation electronics?
It can be used where a low-power 15V rail is needed and the load stays within 0.2A. The converter is intended for compact electronics rather than higher-current 15V devices.
Can this converter support a compact embedded or automation design that needs 15V?
Yes, the body size is 31.8 × 20.3 × 10.2 mm, which helps in space-constrained embedded assemblies. The application still needs to fit within the 3W power rating and 0.2A output current.
What changes across the SCWN03E-15 and the other SCWN03E versions?
All SCWN03E siblings are 3W converters in the same 31.8 × 20.3 × 10.2 mm package. The SCWN03E-15 outputs 15V at 0.2A, while the related models offer 3.3V at 0.6A, 5V at 0.6A, and 12V at 0.25A.
Can the SCWN03E-15 be used where temperatures vary widely?
The specified operating temperature range is -40°C to +90°C, so it is built for wide-temperature operation. No IP rating is listed, so the provided specs do not indicate outdoor or washdown suitability.
