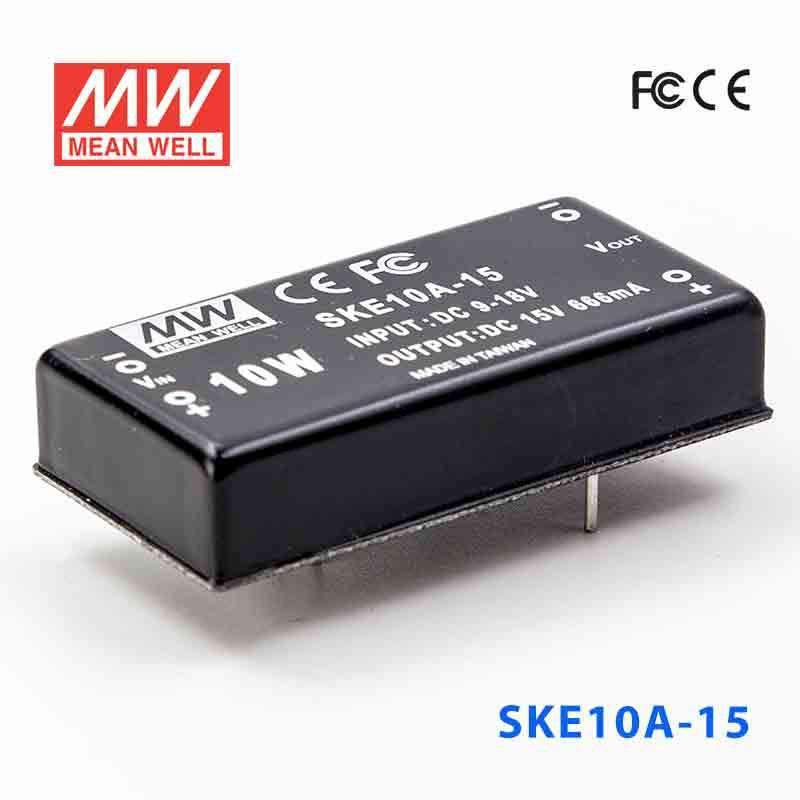

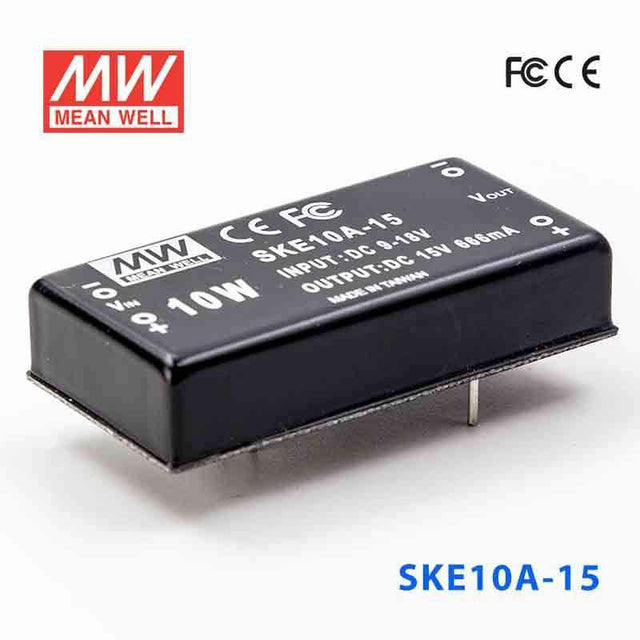

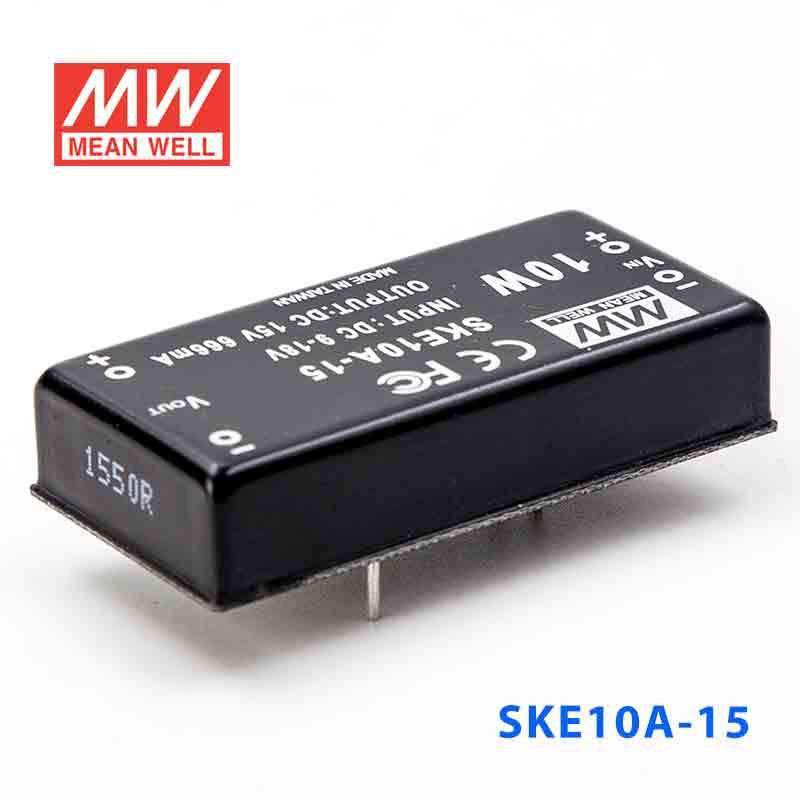

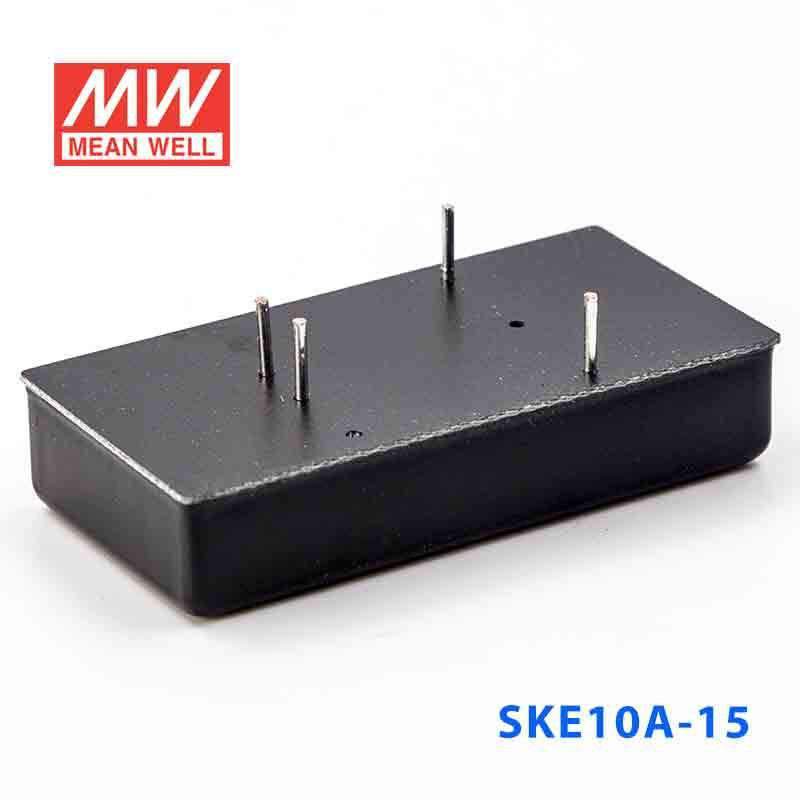

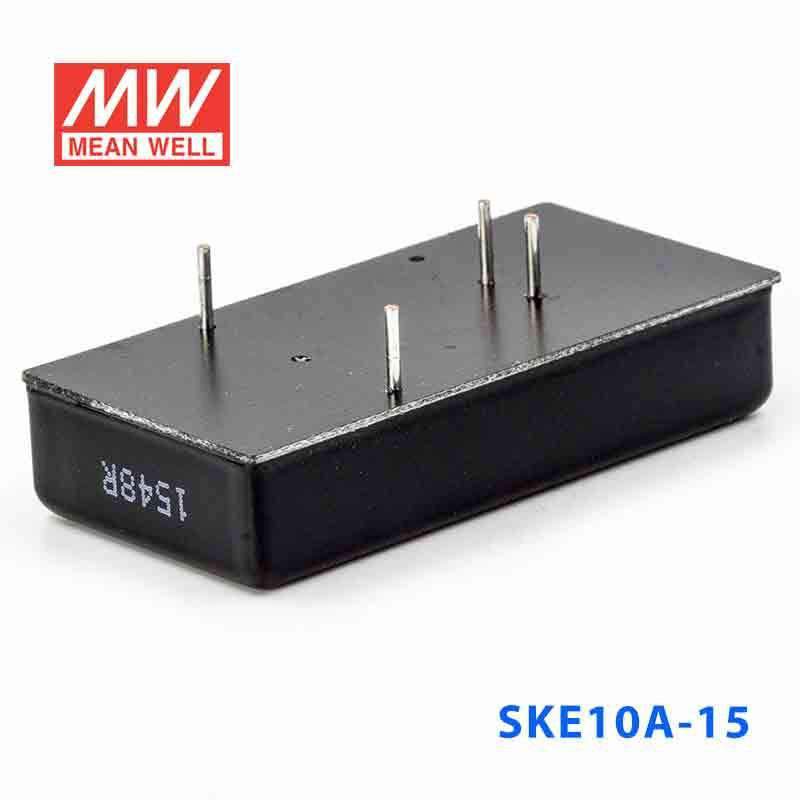

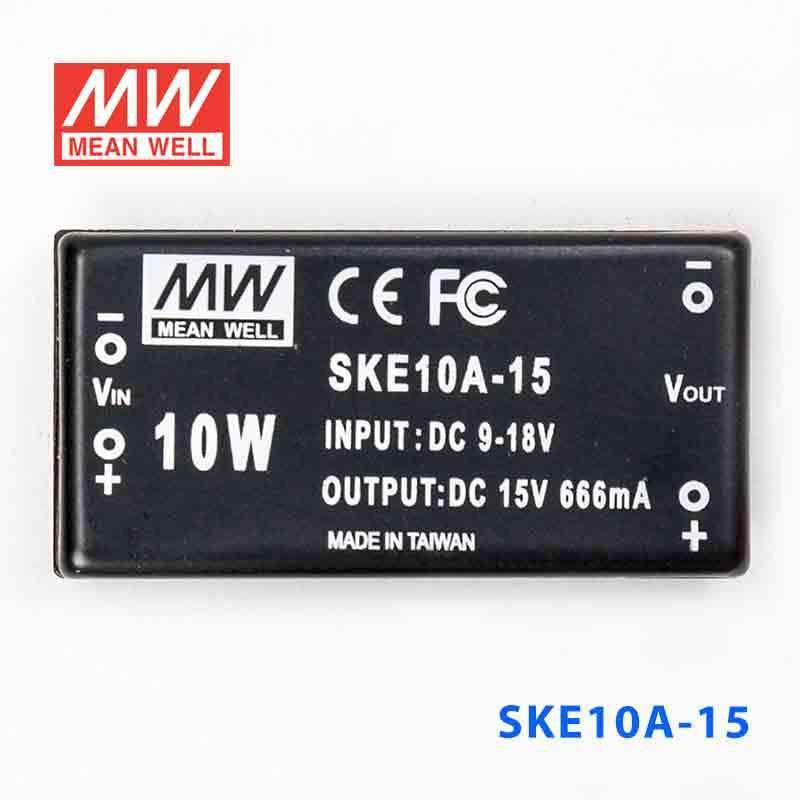

Mean Well SKE10A-15 DC-DC Converter - 10W - 9~18V in 15V out
Description
Description
The SKE10A is a 10W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.66 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE10A-15 for a 15V industrial control board or signal-processing module?
It can be used where the equipment needs constant-voltage 15V output and total demand stays within 10W. The input source also needs to be within the specified 9-18VAC range.
Is the SKE10A-15 a fit for embedded systems that run on 15V power rails?
This model is built for 15V constant-voltage output, so it can suit embedded hardware designed around a 15V rail. It is best matched to compact electronics because the converter itself measures 50.8 × 25.4 × 11.2 mm and is rated at 10W.
Can this model support a small 15V automation subsystem inside a machine enclosure?
It can fit a small 15V automation subsystem if the available source is 9-18VAC and the subsystem stays within the converter's 10W output rating. The specified operating range of -25°C to +71°C also gives a defined temperature window for enclosed equipment.
Is the SKE10A-15 meant for indoor-only use or can it handle wider temperature conditions?
The unit is specified for operation from -25°C to +71°C, so it has a defined temperature range broader than basic room conditions. However, no IP rating is listed, so the specs do not confirm outdoor or water-exposed use.
What is the difference between the SKE10A-15 and the other SKE10A versions?
The listed SKE10A family shares the same 10W power class and 9-18VAC input range. The difference is output rating: SKE10A-05 is 5V and 2A, SKE10A-12 is 12V and 840A, SKE10A-15 is 15V and 666A, and SKE10A-24 is 24V and 420A.
