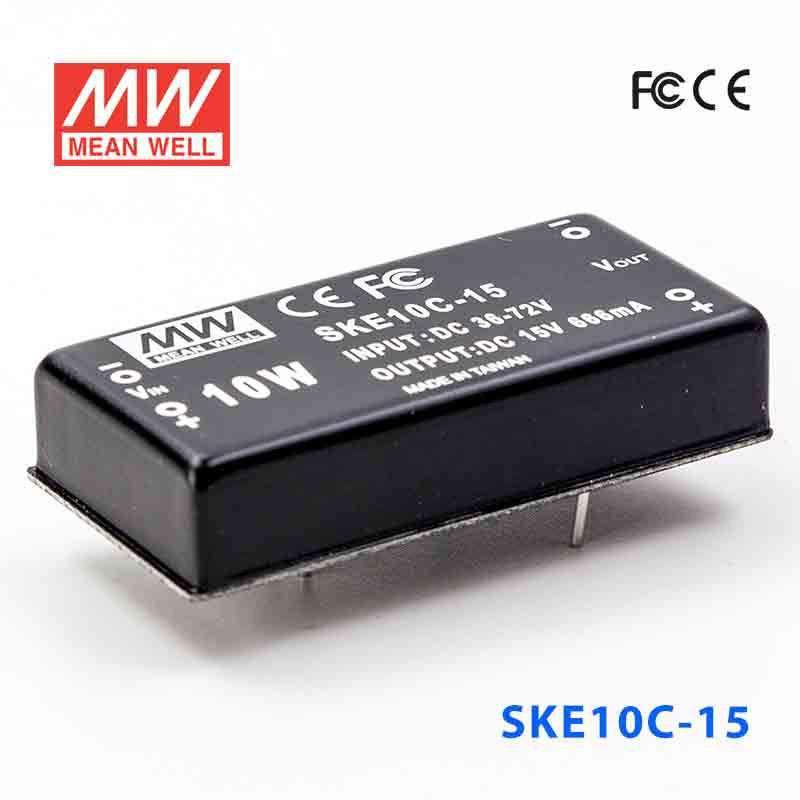

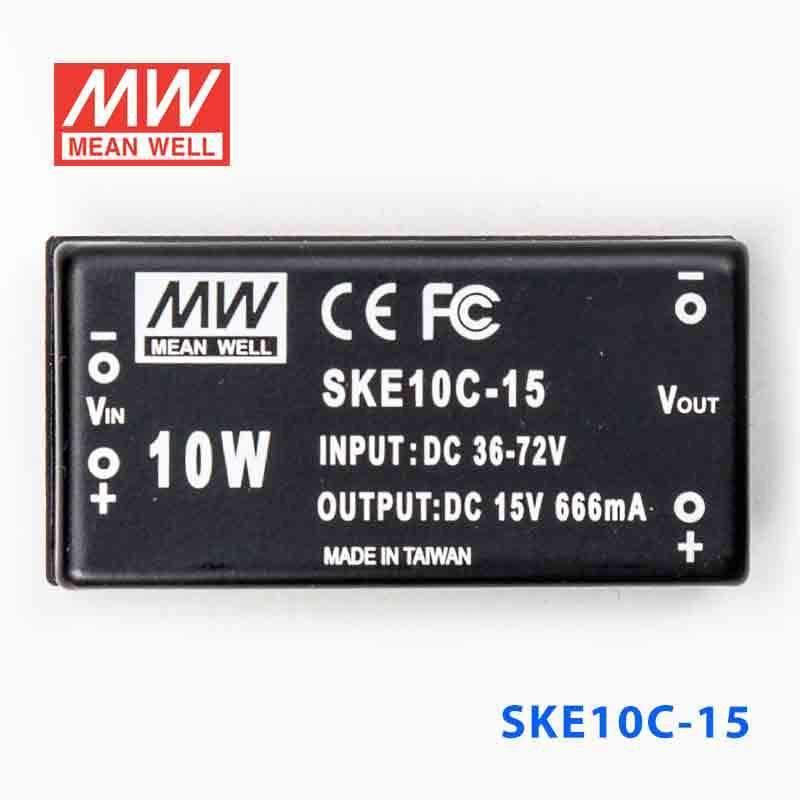

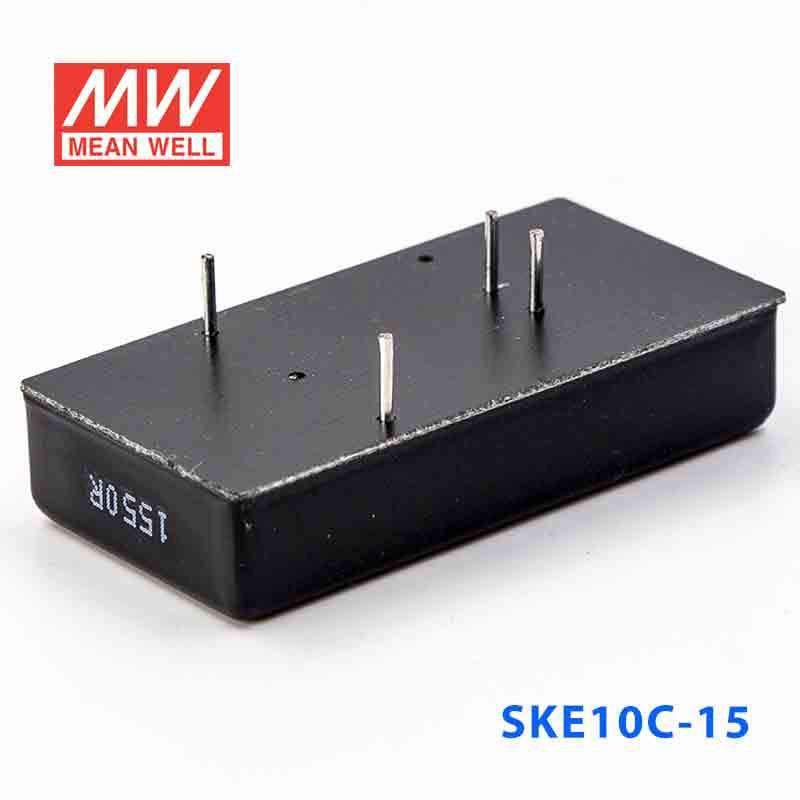

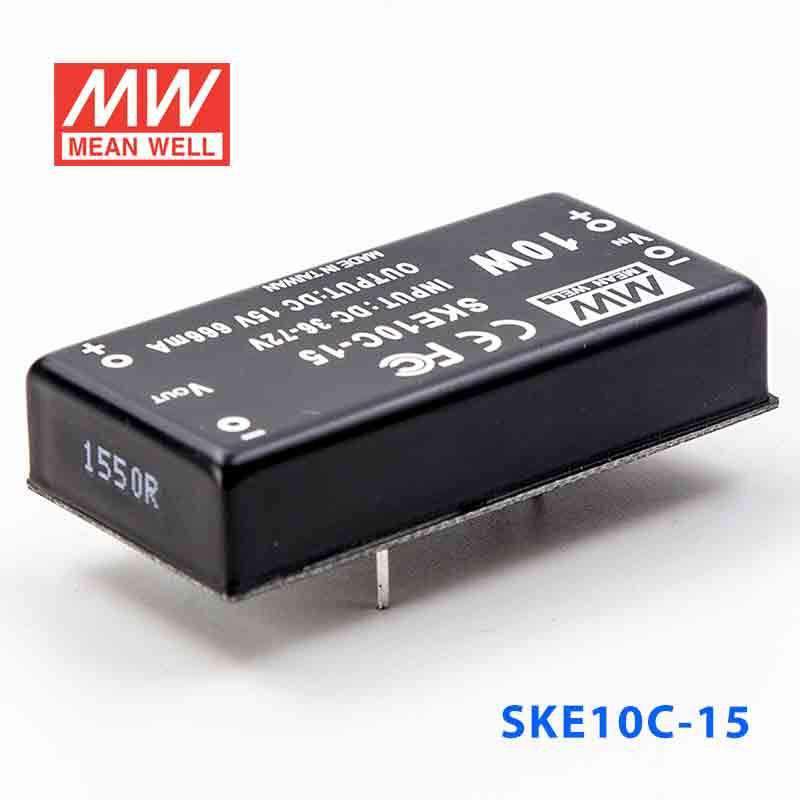

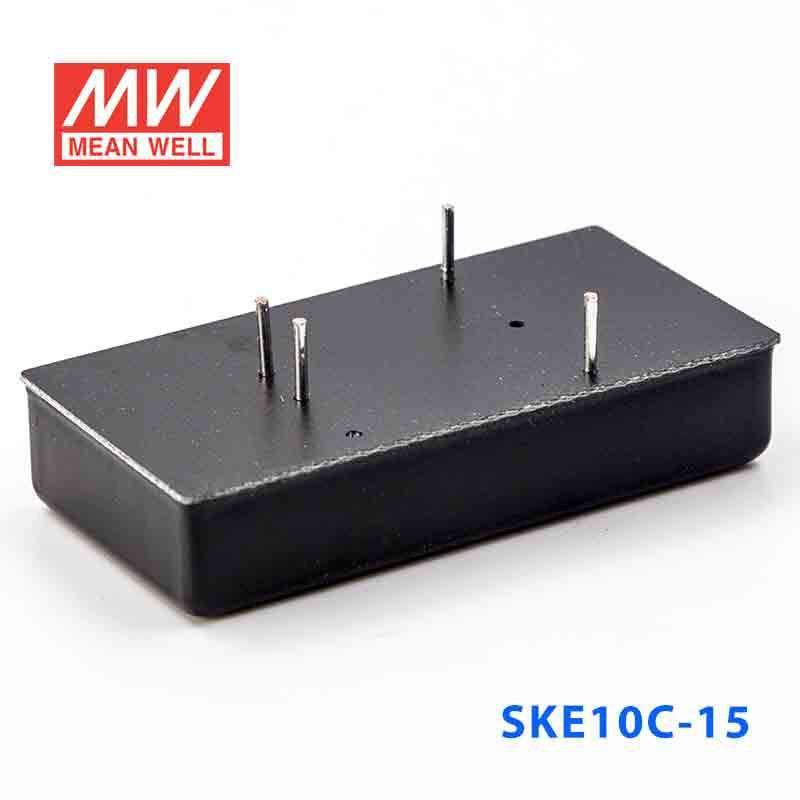

Mean Well SKE10C-15 DC-DC Converter - 10W - 36~72V in 15V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1500VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| Approvals: FCC / EAC / CE / UKCA |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±0.3% (max.) |
| Load regulation | ±0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.66 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE10C-15 to power 15V instrumentation or control boards?
Yes, it provides constant-voltage 15V output and has a 10W rating. It is suitable for instrumentation or control boards that require 15V and stay within the listed 10W capacity.
Is the SKE10C-15 appropriate for embedded equipment that needs 15V from a 36-72VAC input?
Yes, the listed input range is 36-72VAC and the output is fixed at 15V constant voltage. That makes it a practical fit for embedded equipment designed for 15V operation within the 10W rating.
Can this converter be used in automation systems for small 15V loads?
It can be used for smaller automation loads that need stable 15V output. The published power limit is 10W, so it is intended for low-power 15V devices rather than higher-demand equipment.
Will the SKE10C-15 handle temperature variation in equipment enclosures?
The specified operating temperature range is -25°C to +71°C, so the product is rated across that span. No IP rating is shown in the provided specs, so moisture or dust exposure capability is not defined here.
How is the SKE10C-15 different from the other SKE10C models?
The difference is the output combination within the same 10W family. The listed SKE10C models are 5V at 2A, 12V at 840A, 15V at 666A, and 24V at 420A.
