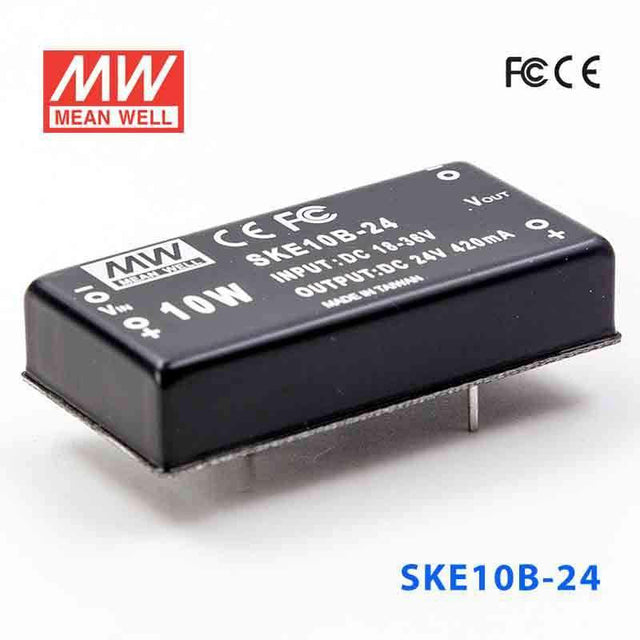

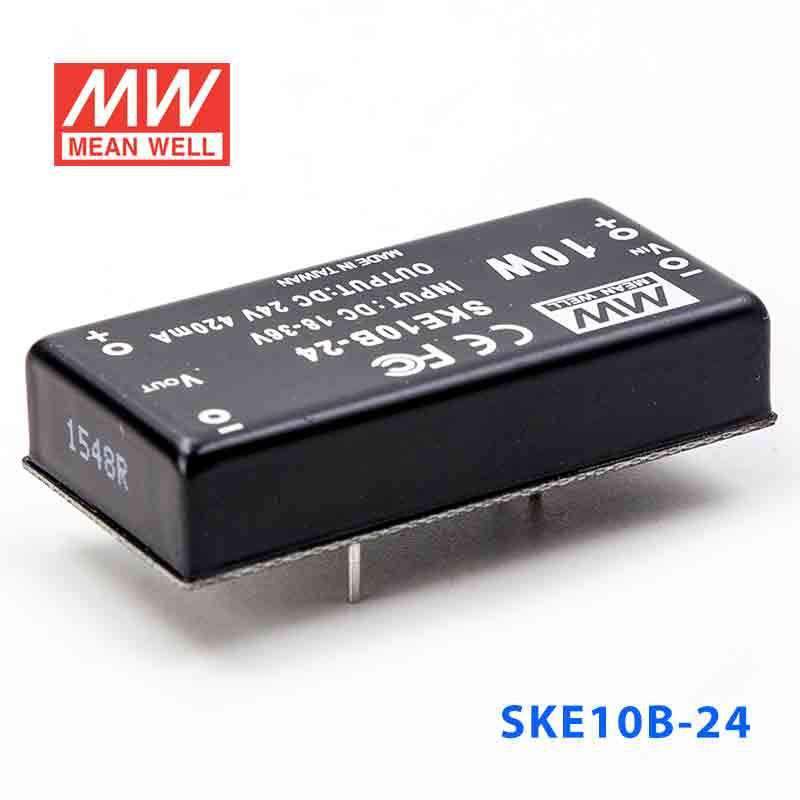

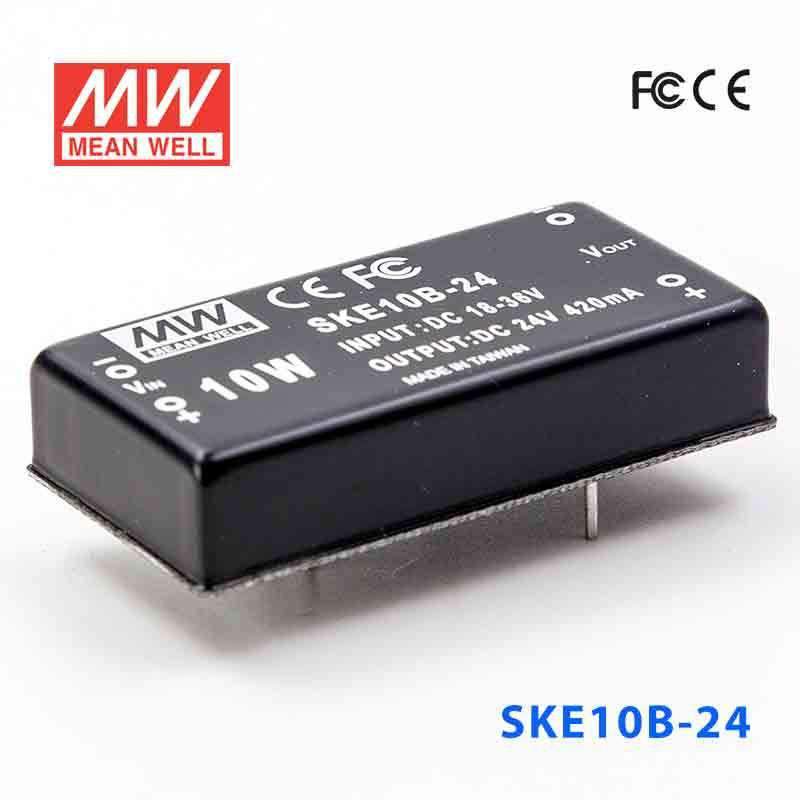

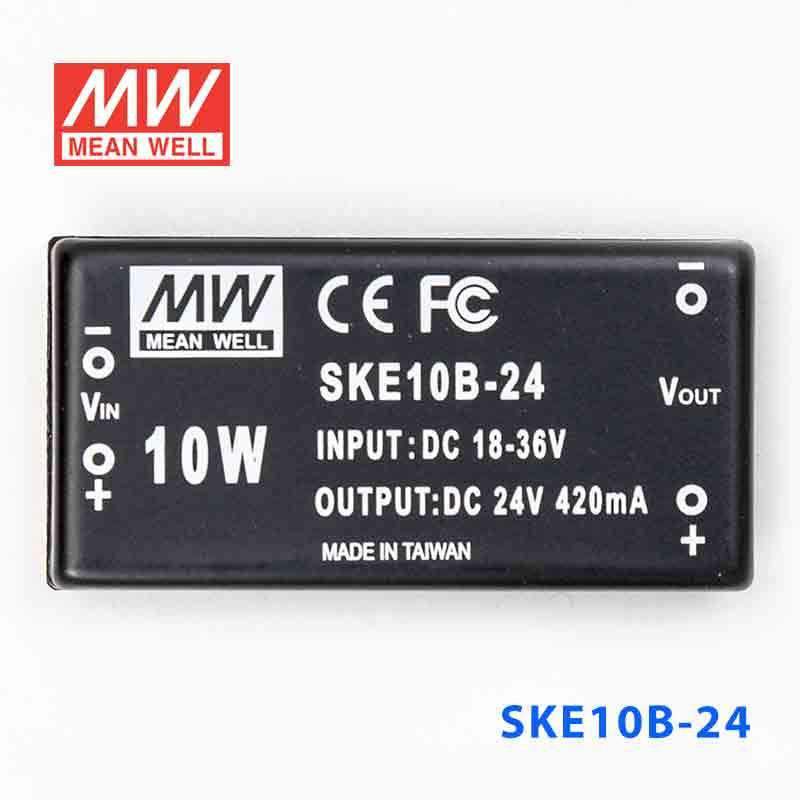

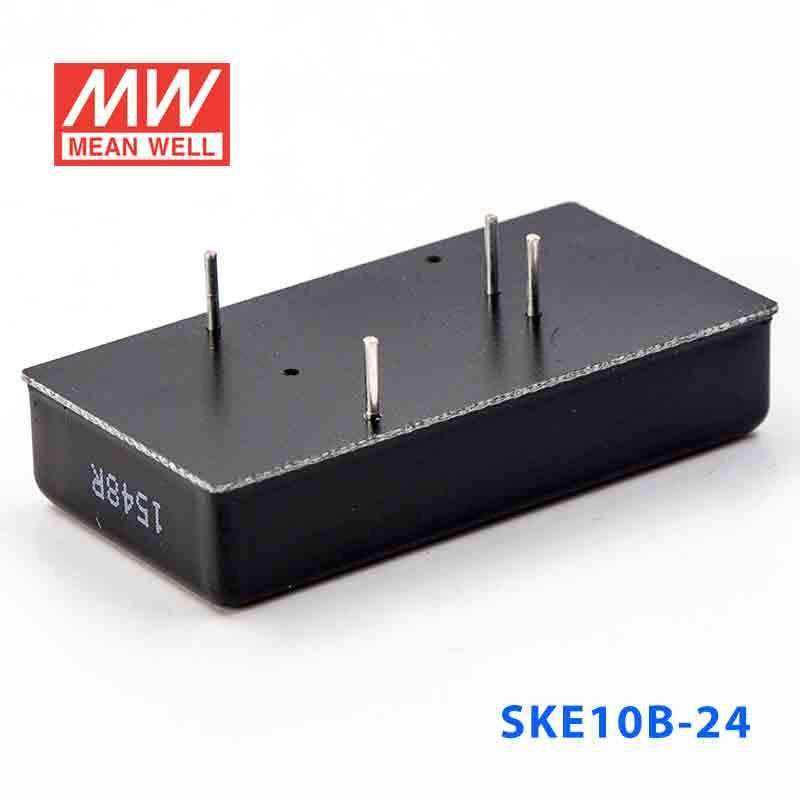

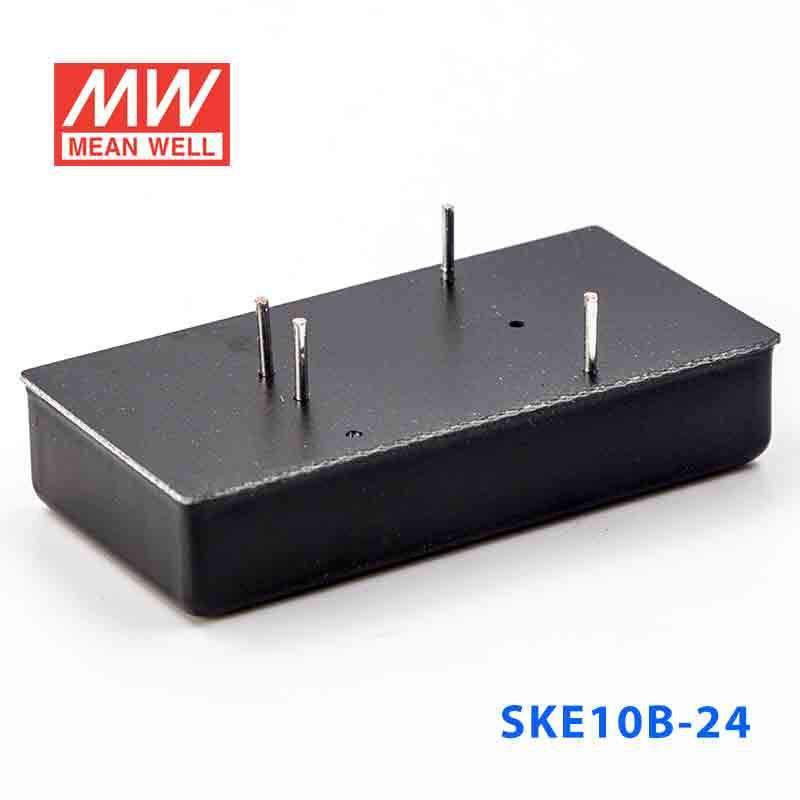

Mean Well SKE10B-24 DC-DC Converter - 10W - 18~36V in 24V out
Description
Description
The SKE10B is a 10W Mean Well power converter (operating temperature: -25~+71℃).
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+71℃
- ✓ Protections: Short circuit
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating10 Watt
-
Output Voltage24 Volt
-
Rated Current0.42 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE10B-24 for a 24V PLC accessory or automation module?
Yes, it provides constant-voltage 24V output and is rated for 10W. It is a fit for PLC accessories or automation modules that require 24V and remain within the listed 10W rating.
Is the SKE10B-24 a good choice for 24V industrial relays or interface modules?
It can be used for 24V relays or interface modules that need a constant 24V supply. The key limit is the 10W power rating, so it is intended for lower-power loads rather than larger 24V devices.
Can this model power 24V embedded or control electronics from an 18-36VAC input range?
Yes, the listed input range is 18-36VAC and the output is constant 24V. That makes it suitable for embedded or control electronics designed for 24V operation within the 10W output capacity.
Can the SKE10B-24 be used in cold or warm indoor equipment spaces?
The operating temperature range is -25°C to +71°C, so the listed specs cover both cold and warm equipment environments within that range. No IP rating is shown, so enclosure or weather resistance is not defined in the provided data.
What is the difference between the SKE10B-24 and the other SKE10B versions?
The main difference is output rating within the same 10W family. The listed siblings are 5V at 2A for SKE10B-05, 12V at 840A for SKE10B-12, 15V at 666A for SKE10B-15, and 24V at 420A for SKE10B-24.
