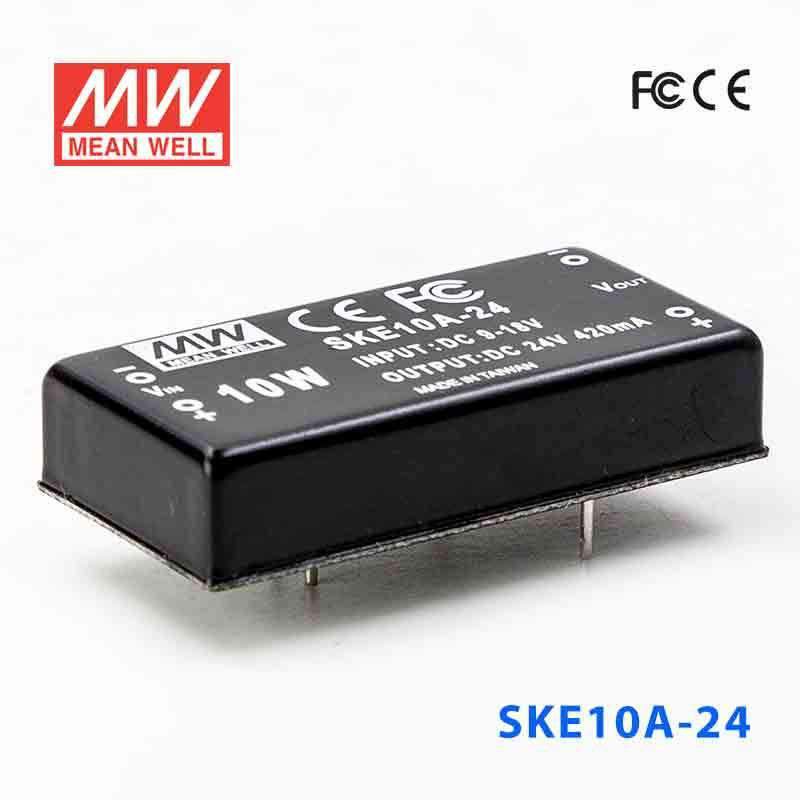

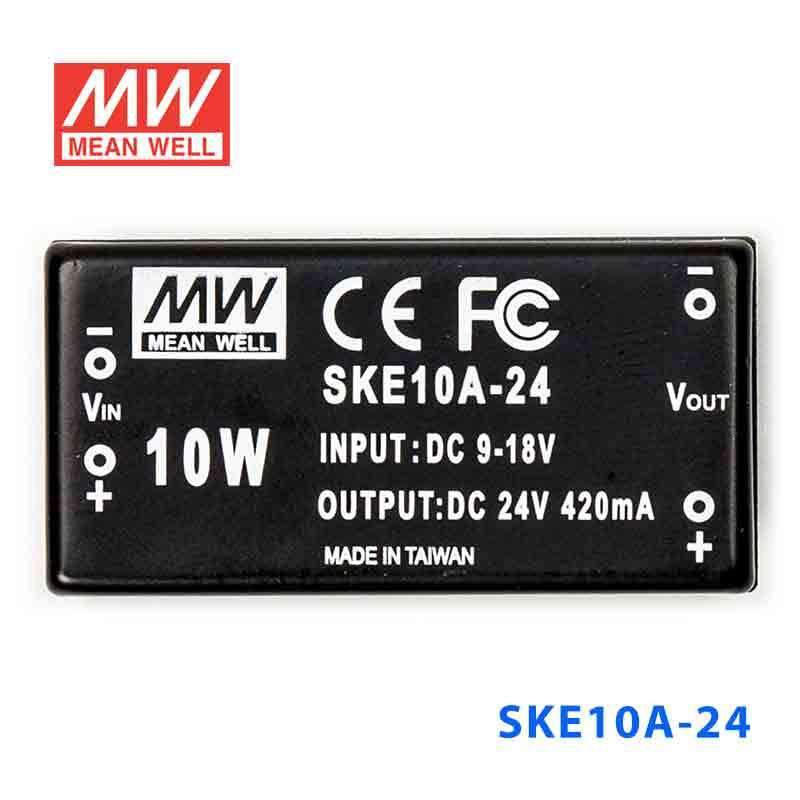

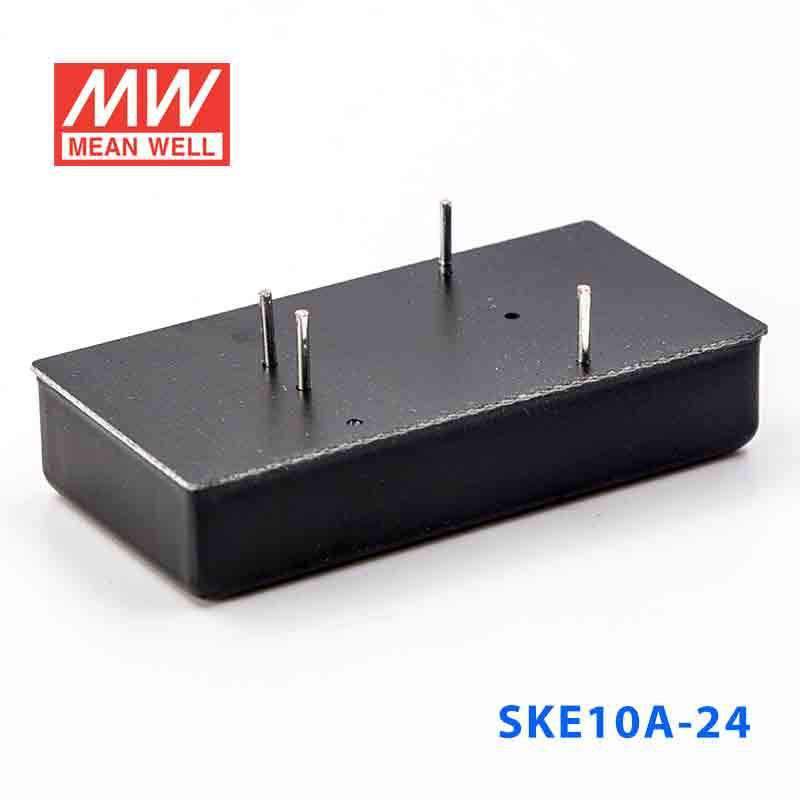

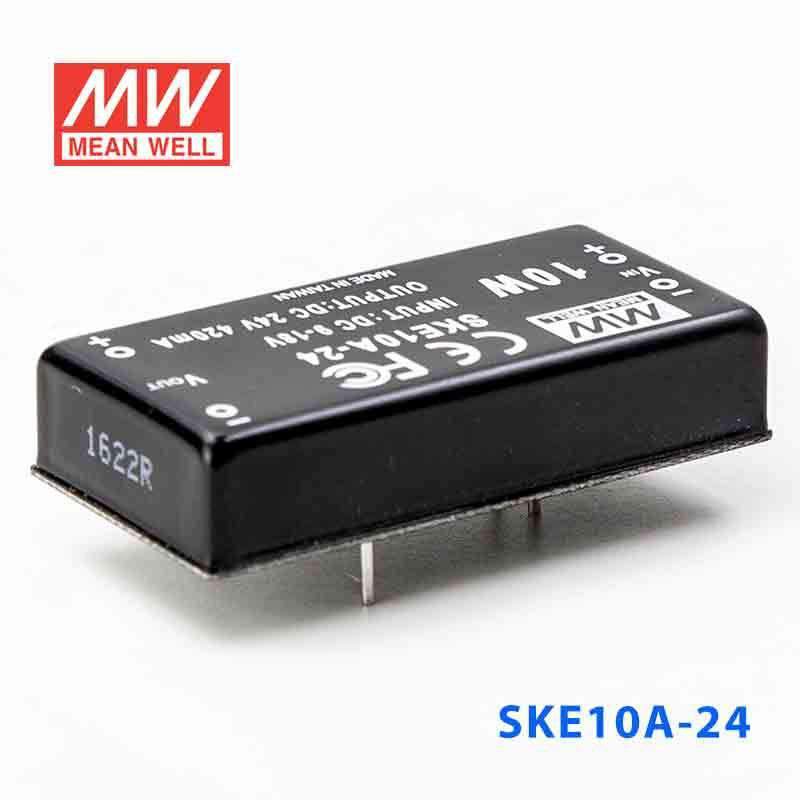

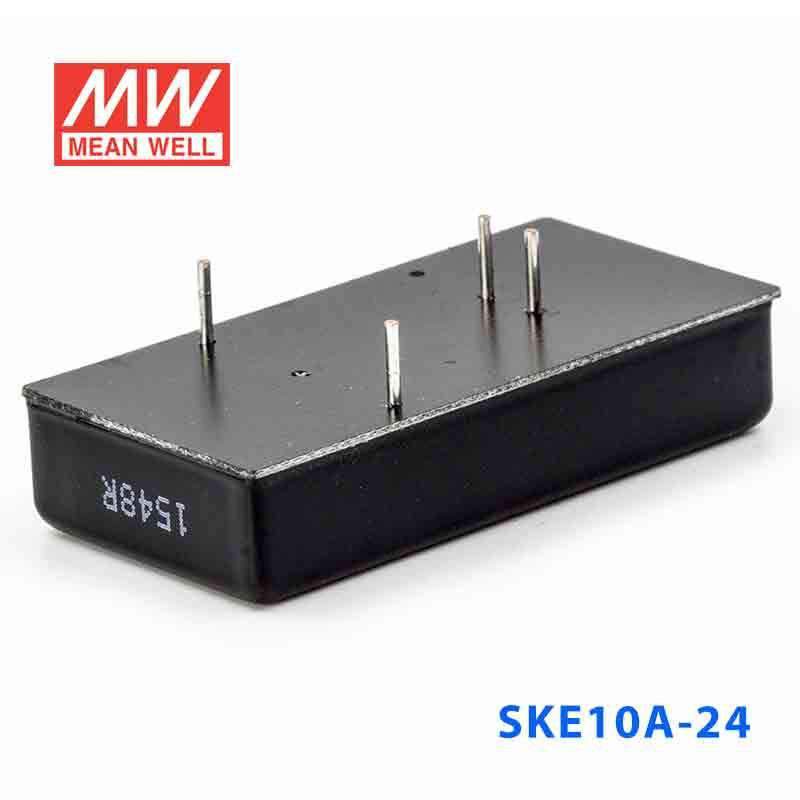

Mean Well SKE10A-24 DC-DC Converter - 10W - 9~18V in 24V out

SKU:
SKE10A-24

$19.16 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range
4: 1 wide input range (option)
1500VDC I / O isolation
3000VDC I / O isolation (option)
Built-in EMI filter
Protection: Short circuit / Overload
Cooling by free air convection
Six-sided shield metal case
100% full load burn-in test
Low cost, high reliability
Approvals: FCC / EAC / CE / UKCA
2 years warranty

General Specification

Voltage set point accuracy ±2.0% (max.)
Line regulation ±0.3% (max.)
Load regulation ±0.5% (max.) @ 10 ~ 100% load
Overload protection 160% to 250%, auto-recovery
Efficiency 85% (typical)
Short circuit protection Continuous, auto-recovery
I / O isolation voltage 1000VDC (min.)
I / O isolation resistance 100MQ(min.)@500VDC
Working temperature -25 ~ + 71°C (refer to output derating curve)
Storage temperature -25°C to + 105°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient ± 0.03% / ° C (max.)
Dimension (LxWxH) (mm) 50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch
Case material Six-sided shield metal case

Specifications

  • Brand
    Mean Well
  • Series
    SKE Series
  • Power Rating
    10 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    0.42 Ampere
  • Input Voltage
    9V~18V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~71°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    1 in
  • Height
    0.44 in
  • Weight
    0.07 lb

File Downloads

::specification::
