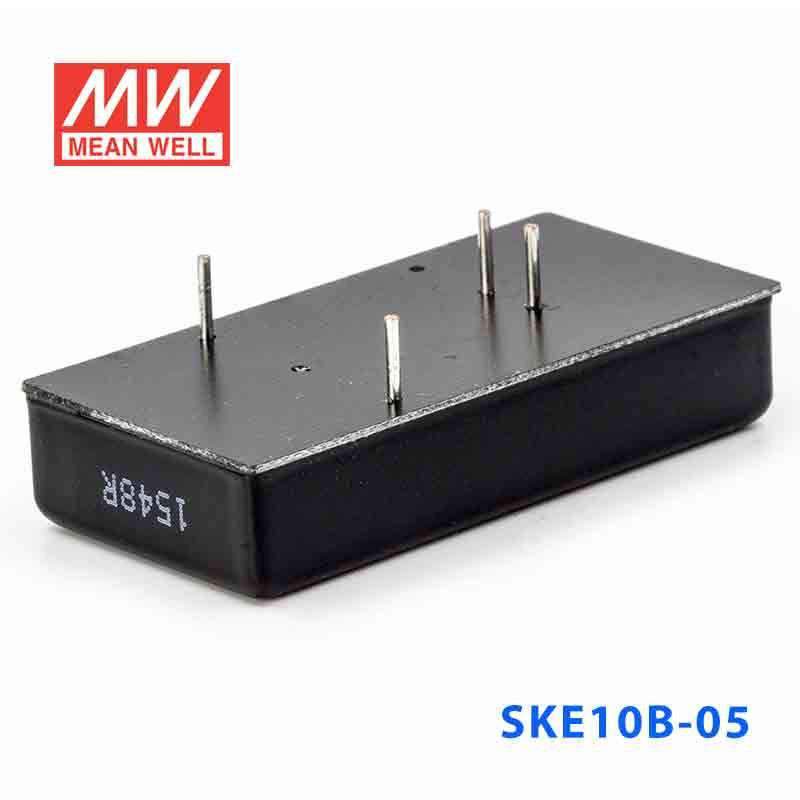

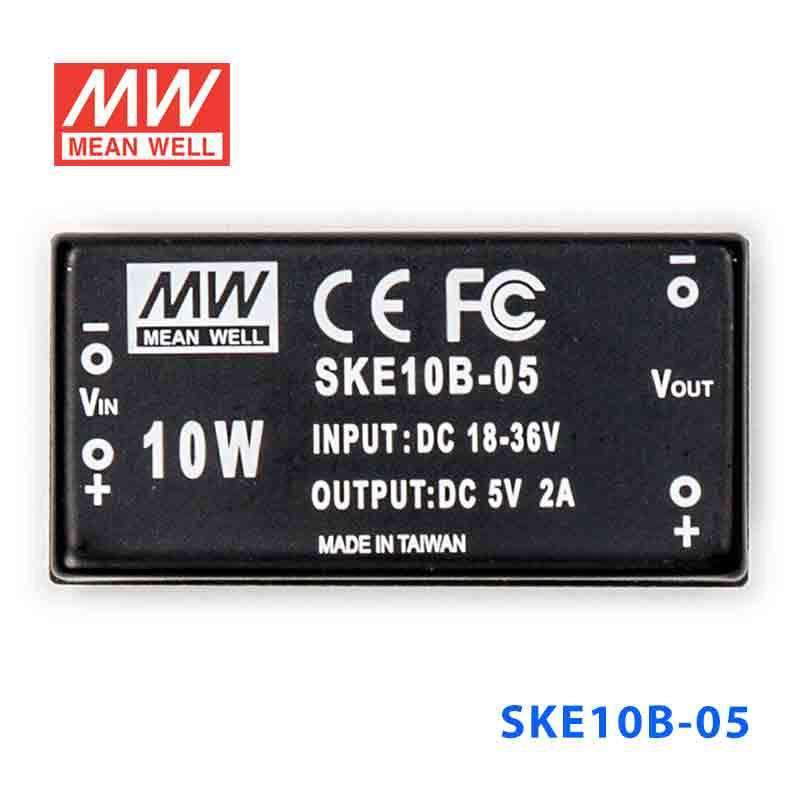

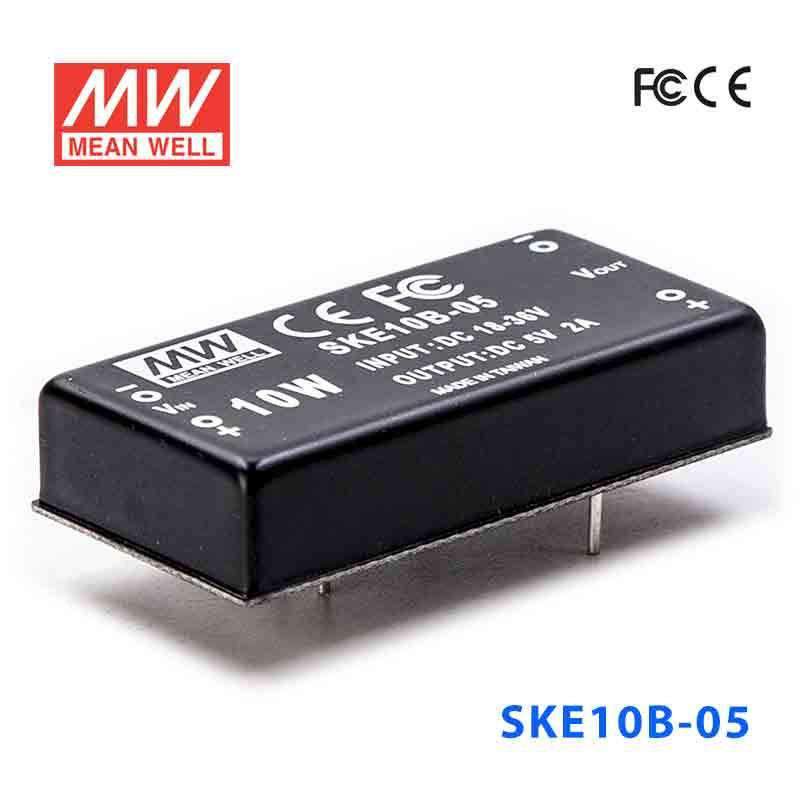

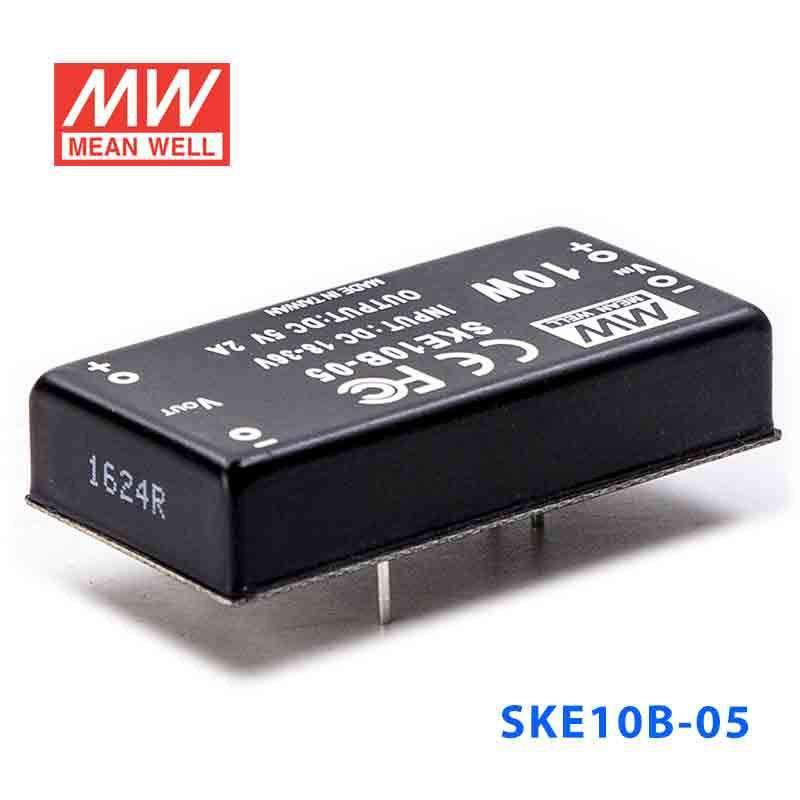

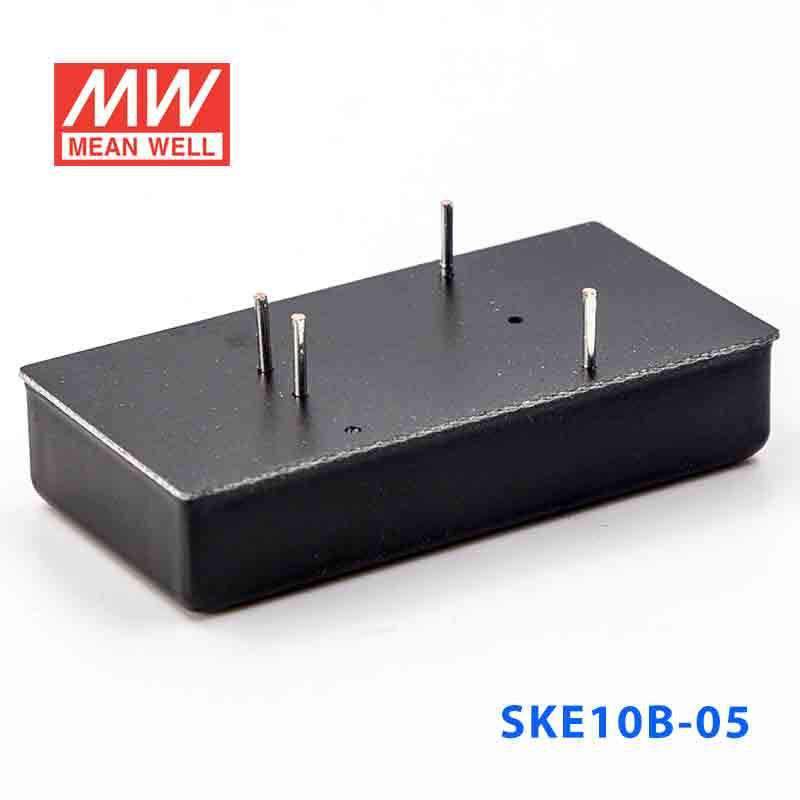

Mean Well SKE10B-05 DC-DC Converter - 10W - 18~36V in 5V out
Description
Description
Features
| 2: 1 wide input range |
| 4: 1 wide input range (option) |
| 1500VDC I / O isolation |
| 3000VDC I / O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| Approvals: FCC / EAC / CE / UKCA |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±0.3% (max.) |
| Load regulation | ±0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 160% to 250%, auto-recovery |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -25 ~ + 71°C (refer to output derating curve) |
| Storage temperature | -25°C to + 105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 50.8 x 25.4 x 11.2mm or 2" x 1" x 0.44" inch |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKE Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKE10B-05 to power 5V logic or microcontroller circuits in industrial equipment?
It can fit 5V logic or microcontroller loads when the total output stays within 10W. This version is designed for 18-36VAC input and provides constant-voltage 5V output.
Is the SKE10B-05 suitable for 5V communication or interface electronics in a 24V-class control system?
It is a possible fit when the available source is within 18-36VAC and the downstream electronics need regulated 5V. The 10W rating makes it more appropriate for smaller 5V electronics than for larger 5V loads.
Can the SKE10B-05 be used for small embedded boards inside automation cabinets?
Yes, for embedded boards that require constant-voltage 5V and fall within the converter's 10W output class. Its compact dimensions of 50.8 × 25.4 × 11.2 mm are also helpful in tight cabinet layouts.
Is the SKE10B-05 rated for outdoor service?
The product data specifies operation from -25°C to +71°C, so it has a defined temperature range for environmental review. No IP rating is listed, which means the specs do not state outdoor, wet-location, or dust-exposed suitability.
What are the output differences across the SKE10B series?
The listed SKE10B family shares the same 10W power rating and 18-36VAC input range. The output choices shown are SKE10B-05 at 5V and 2A, SKE10B-12 at 12V and 840A, SKE10B-15 at 15V and 666A, and SKE10B-24 at 24V and 420A.
