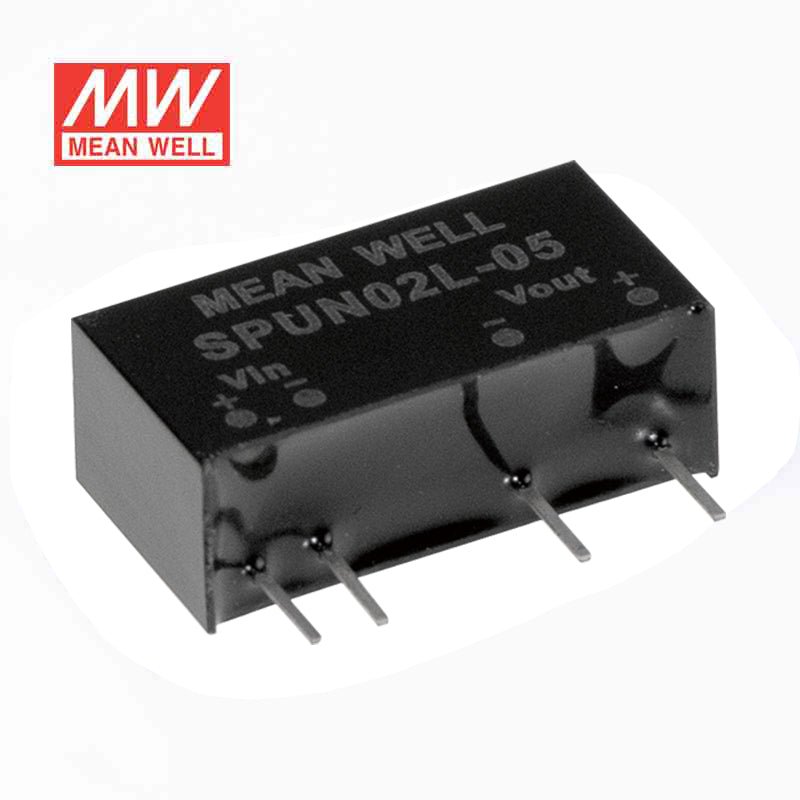

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SPUN02L-12 DC-DC Converter - 2W - 4.5~5.5V in 12V out

SKU:

SPUN02L-12

$4.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

SIP7 package with industry-standard pinout

Wide operating temperature range -40~+105°C

High efficiency up to 87%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit(continuous)/Overload

3KVDC I/O isolation

3 years warranty

General Specification

Voltage accuracy	±3%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along X, Y, Z axes
Cooling	Free-air convection
Short circuit protection	Continuous, auto-recovery
Working temperature	-40°C to +105°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	±0.05% / °C
Dimension (LxWxH) (mm)	19.6x7.2x10.2mm
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

SPUN Series
Power Rating

2 Watt
Output Voltage

12 Volt
Rated Current

0.16 Ampere
Input Voltage

4.5V~5.5V
No of Output

1
Dimming Control

None
Standards Met

CE,EMC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~105°C
Warranty

3 Year
Length

0.77 in
Width

0.4 in
Height

0.28 in
Weight

0.01 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SPUN02L-12 to create a small 12V rail for industrial sensors or control interfaces from a 4.5~5.5V source?

Yes, for low-power loads that need constant-voltage 12V and fit within the 2W rating. This model is specified for 4.5~5.5V input and 12V output, which suits compact sensor, interface, or control circuits. It is not intended for larger 12V power demands.

Is the SPUN02L-12 a fit for embedded systems that need 12V from a 5V-class input?

It is built for that type of low-power conversion. The converter delivers 12V constant voltage from a 4.5~5.5V input and comes in a 19.6 x 10.2 x 7.2 mm package. The available output power is 2W.

Can this model work in automation equipment exposed to very hot or very cold ambient conditions?

The specified operating temperature range is -40°C to +105°C. That supports use in automation and embedded equipment with broad ambient temperature variation. The electrical application still needs to remain within the 12V, 2W output specification.

Is the SPUN02L-12 rated for outdoor use or harsh washdown areas?

No IP rating is listed in the provided specifications. The converter is rated for -40°C to +105°C operation, but the page does not specify water or dust protection. That means environment suitability is defined by temperature, not by a stated enclosure rating.

How does the SPUN02L-12 compare with the other SPUN02L models?

All listed SPUN02L versions are rated at 2W. The SPUN02L-05 is 5V, 400A; the SPUN02L-12 is 12V, 167A; and the SPUN02L-15 is 15V, 134A. The family data shown here also includes 19.6 x 10.2 x 7.2 mm dimensions, -40°C to +105°C operation, CE and c_emc certifications, and a 3-year warranty.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SPUN02N-15 DC-DC Converter - 2W - 21.6~26.4V in 15V out	2W	15V	0.13A	Indoor	$4.67	View
Mean Well SPUN02N-12 DC-DC Converter - 2W - 21.6~26.4V in 12V out	2W	12V	0.16A	Indoor	$4.67	View
Mean Well SPUN02N-05 DC-DC Converter - 2W - 21.6~26.4V in 5V out	2W	5V	0.4A	Indoor	$4.67	View
Mean Well SPUN02M-15 DC-DC Converter - 2W - 10.8~13.2V in 15V out	2W	15V	0.13A	Indoor	$4.67	View
Mean Well SPUN02M-12 DC-DC Converter - 2W - 10.8~13.2V in 12V out	2W	12V	0.16A	Indoor	$4.67	View
Mean Well SPUN02M-05 DC-DC Converter - 2W - 10.8~13.2V in 5V out	2W	5V	0.4A	Indoor	$4.67	View
Mean Well SPUN02L-15 DC-DC Converter - 2W - 4.5~5.5V in 15V out	2W	15V	0.13A	Indoor	$4.67	View
Mean Well SPUN02L-05 DC-DC Converter - 2W - 4.5~5.5V in 5V out	2W	5V	0.4A	Indoor	$4.67	View
