Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

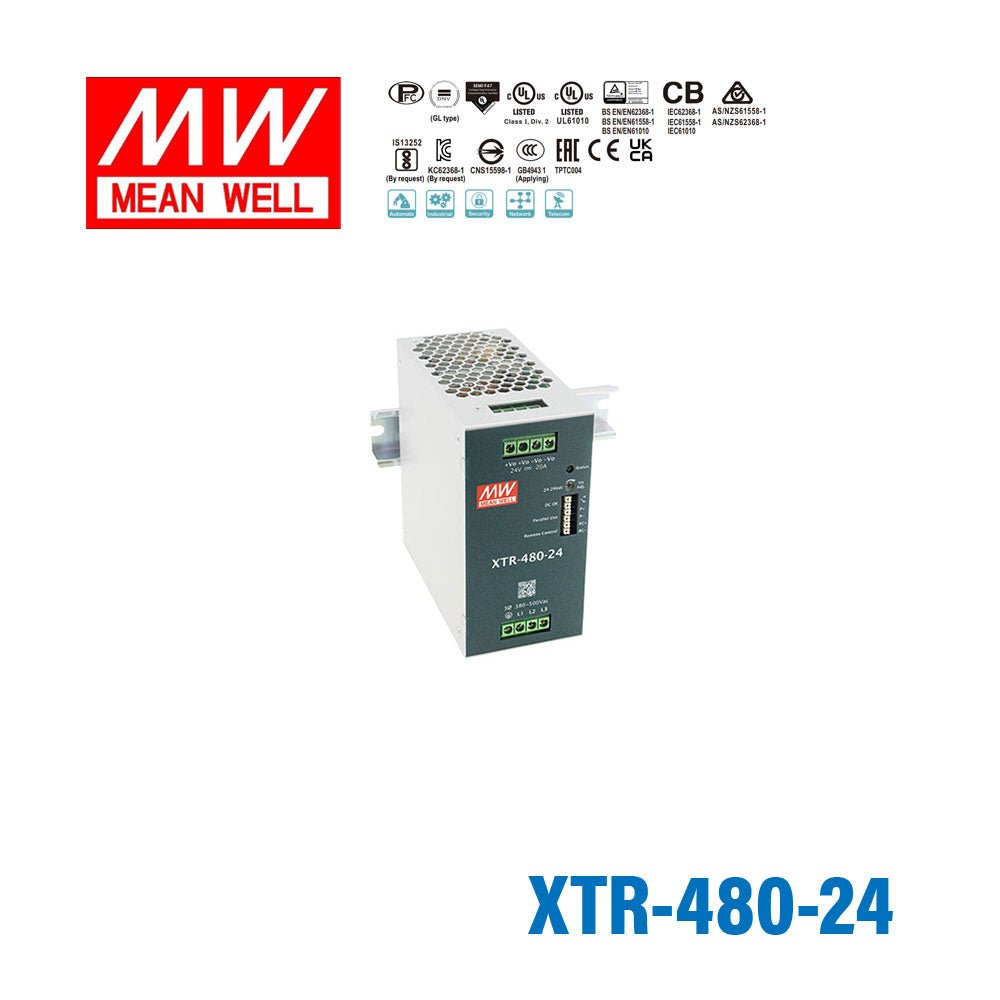

Mean Well XTR-480-24 Three Phase Din Rail Power Supply 480W 24V - Screw Terminal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-480-24 Three Phase Din Rail Power Supply 480W 24V - S...
Description
Description
TheXTR-480series offers 480W of power in an ultra-slim design, making it suitable for a range of industrial applications. It features advanced protection mechanisms and remote control capabilities, which enhance its reliability and operational flexibility. This model is perfect for demanding environments requiring efficient power delivery and robust performance.
Key Features:
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.48 in
-
Height4.93 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well XTR-480-24?
The XTR-480-24 is rated for 480W output power. It provides 24V DC output with a rated current of 20A.
What type of applications is the XTR-480-24 suited for?
This model is suited for industrial power applications that need a compact DIN rail AC-DC power supply. Its 480W output, 24V rating, and wide input range make it appropriate for demanding control panels and industrial equipment power systems.
Does the XTR-480-24 support three-phase input?
Yes. The XTR-480-24 is specified with a three-phase 320 to 600Vac wide range input, and the product description also notes that dual phase operation is possible.
What operating temperature range does the XTR-480-24 support?
The XTR-480-24 is specified for operation from -40°C to 85°C. This wide temperature range supports use in demanding industrial environments where temperature conditions can vary significantly.
How compact is the XTR-480-24 for a 480W DIN rail power supply?
The XTR-480 series is described as having an ultra-slim design. For buyers comparing DIN rail power supplies, this makes the XTR-480-24 relevant where 480W of 24V DC power is needed in a space-conscious industrial enclosure.
What warranty period applies to the XTR-480-24?
The XTR-480-24 has a listed warranty period of 5 years. That warranty length is useful for B2B buyers planning maintenance cycles or standardizing industrial power supply components.
