Mean Well EPS-65-36 Power Supply 65W 36V 1.81A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours

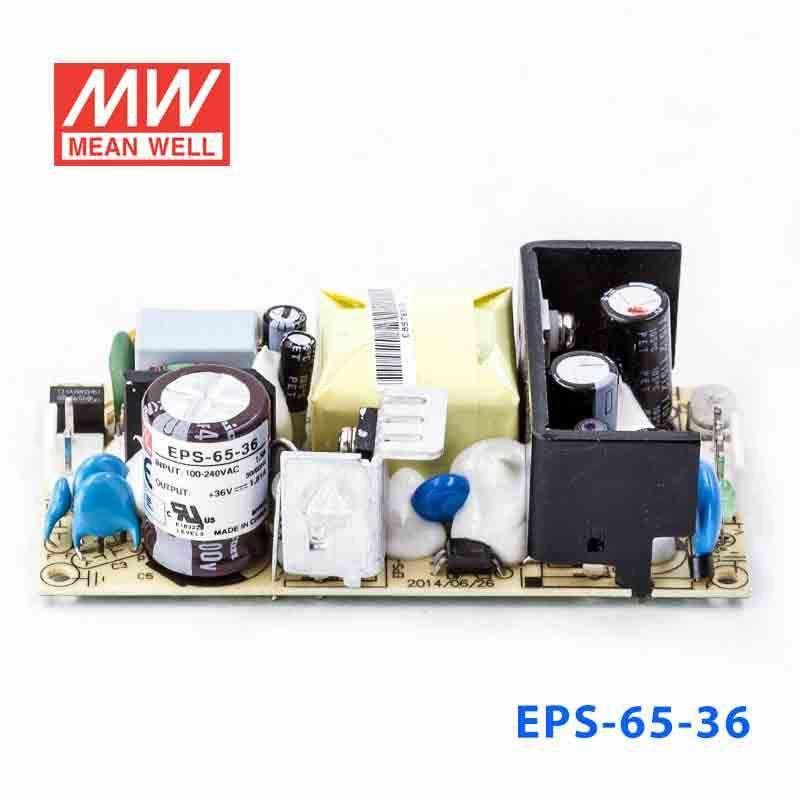

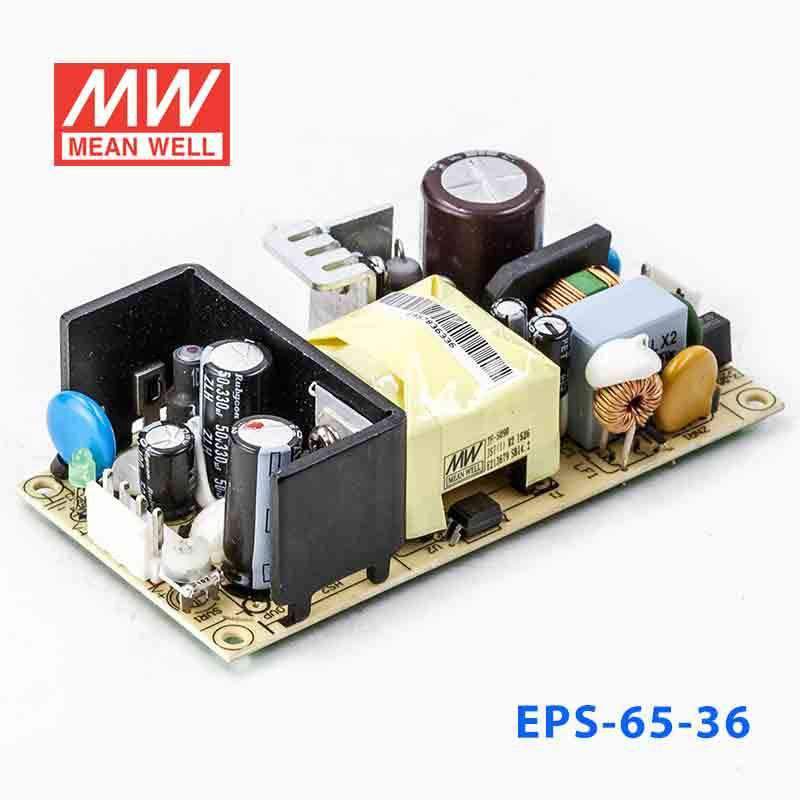

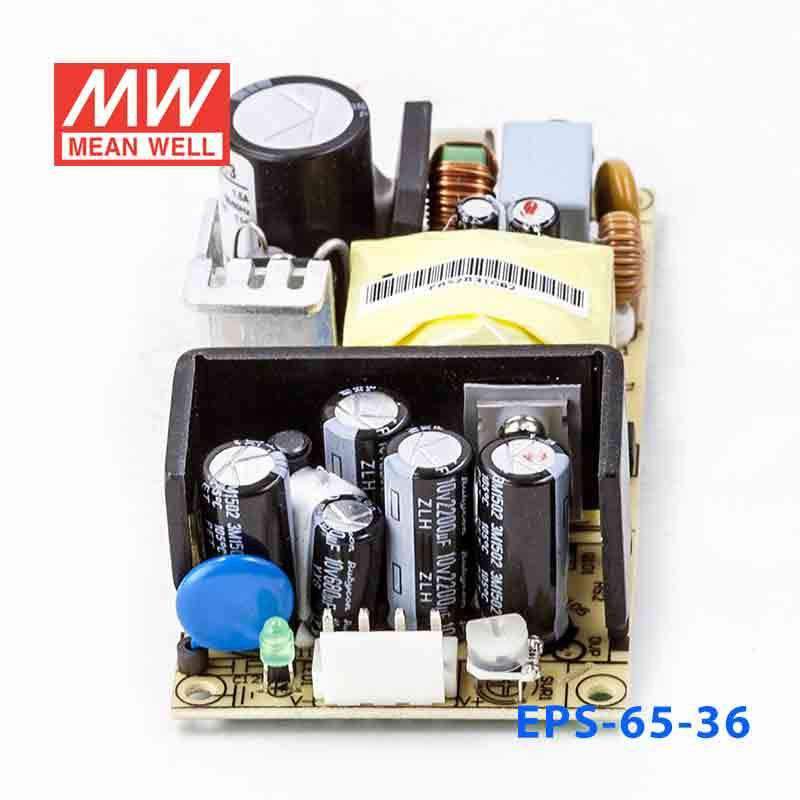

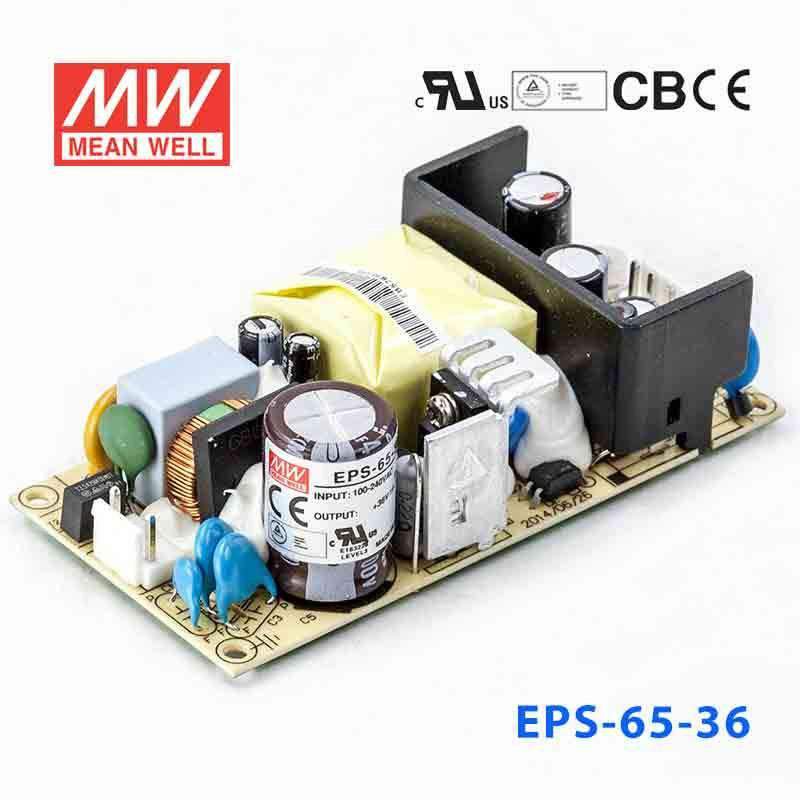

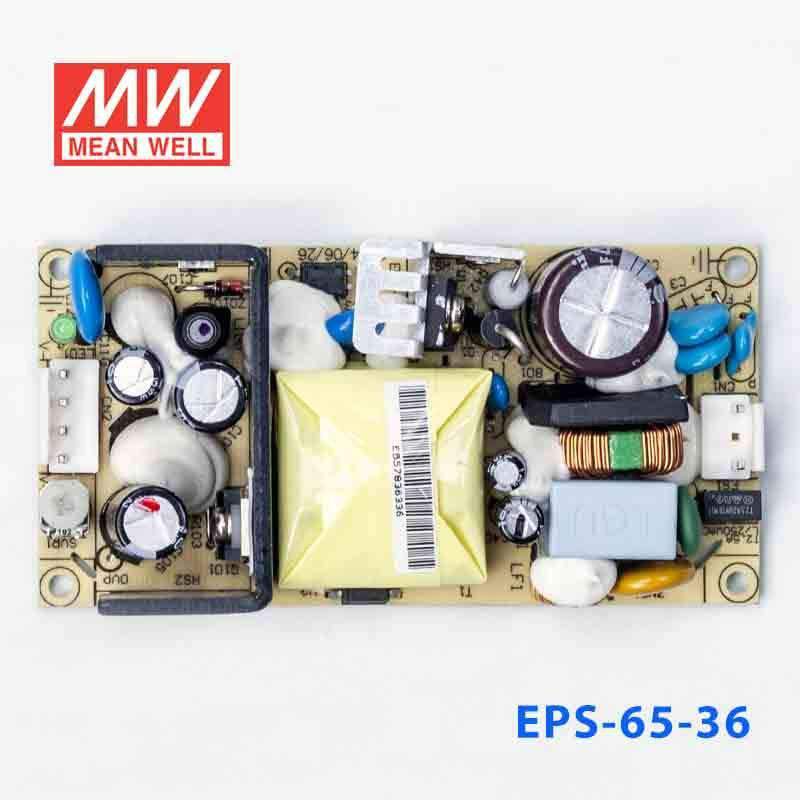

Mean Well EPS-65-36 Power Supply 65W 36V 1.81A
The EPS-65 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.16 Watt
-
Output Voltage36 Volt
-
Rated Current1.81 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-36 for 36V industrial control or automation equipment?
Yes, if the load is designed for constant 36V input and stays within 1.81A and 65.16W. That makes it appropriate for 36V automation devices, control assemblies, and OEM electronics that require a fixed-voltage DC supply.
Is the EPS-65-36 suitable for 36V embedded systems or industrial electronics?
It is suitable for embedded or industrial equipment that expects a regulated 36V output and draws no more than 1.81A. The constant-voltage design is intended for devices specified for a fixed 36V supply rather than a constant-current source.
Can this model power 36V sensors, controllers, or test equipment in an OEM enclosure?
Yes, provided the total demand is within 65.16W and 1.81A at 36V. Its compact 101.6 × 50.8 × 29.0 mm size can also help in space-constrained enclosed equipment.
Is the EPS-65-36 meant for indoor or outdoor environments?
The operating temperature range is -30°C to +70°C, so it can handle a wide temperature span in protected equipment. Since no IP rating is listed in the provided specs, it is better treated as an indoor or enclosure-mounted power supply rather than an exposed outdoor unit.
How does the EPS-65-36 compare with other 36V models in the EPS series?
The listed 36V siblings are EPS-15-36 at 15.12W and 0.42A, EPS-25-36 at 25.2W and 0.7A, EPS-35-36 at 36W and 1A, EPS-45-36 and EPS-45-36-C at 45W and 1.25A, and EPS-65-36 / EPS-65-36-C at 65.16W and 1.81A. This places EPS-65-36 at the top of the listed 36V range for both wattage and current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-65 Models
15 other modelsCustomer reviews
Reviewed by 1 customer across the EPS series
-
Replacement PS
Model: EPS-15-15 ×1, EPS-15-5 ×1, EPS-15-7.5 ×1Quantity: 1Power Supplies were used to replace the one that was removed on a Phillips PM6680 counter, a +5V, +15V and -7V. They seem to work well so far. I have to put in a boost converter on the +15V for space and not use the +15V EPS.
