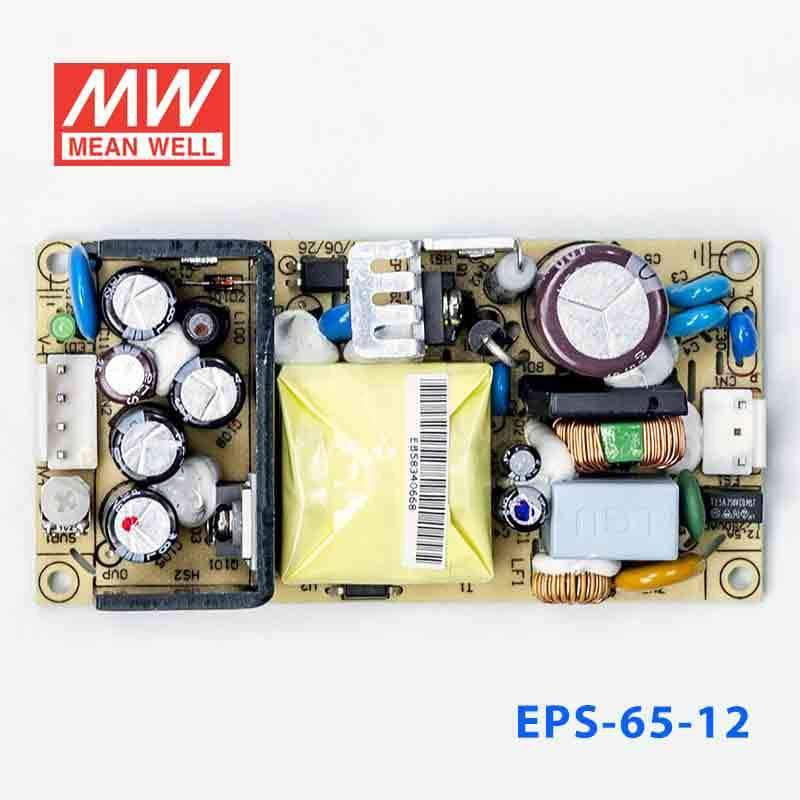

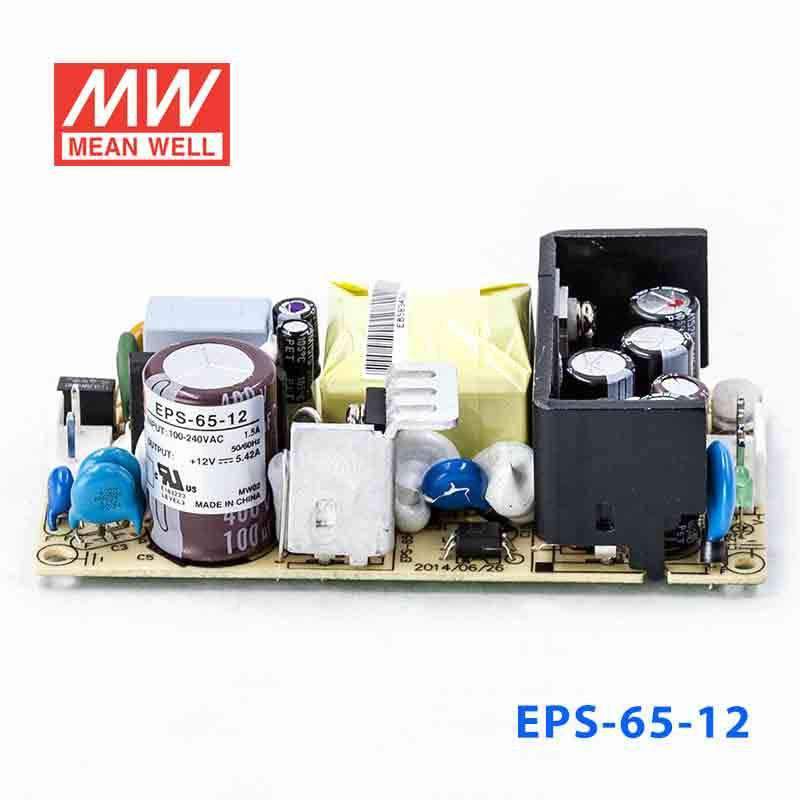

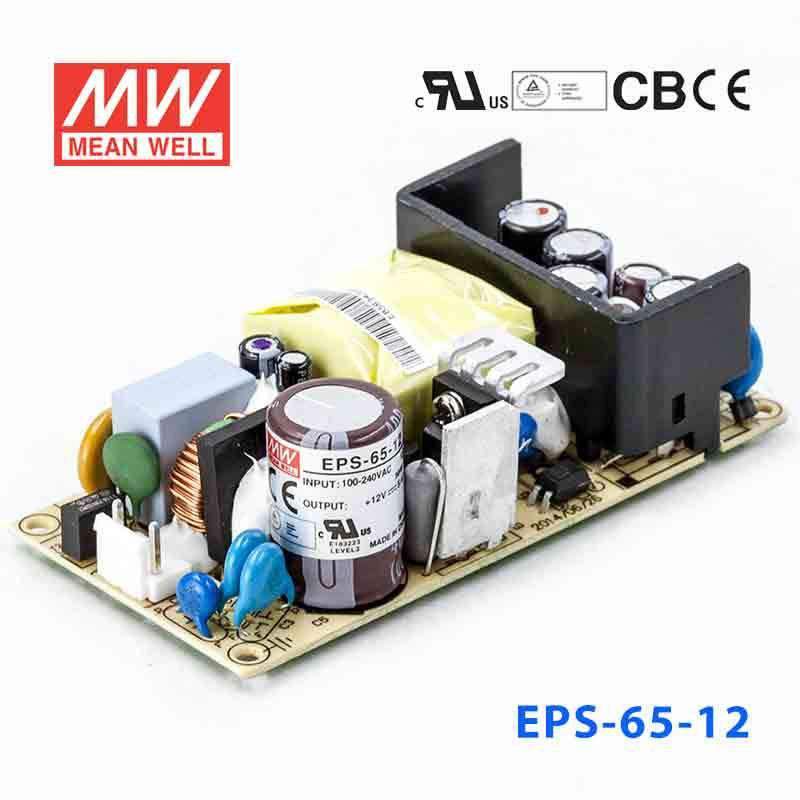

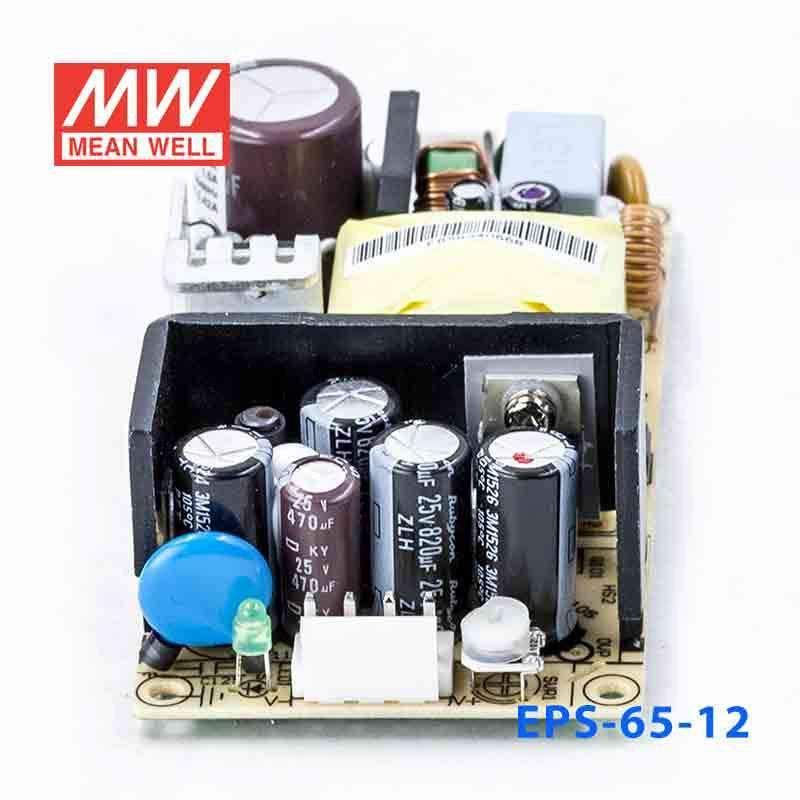

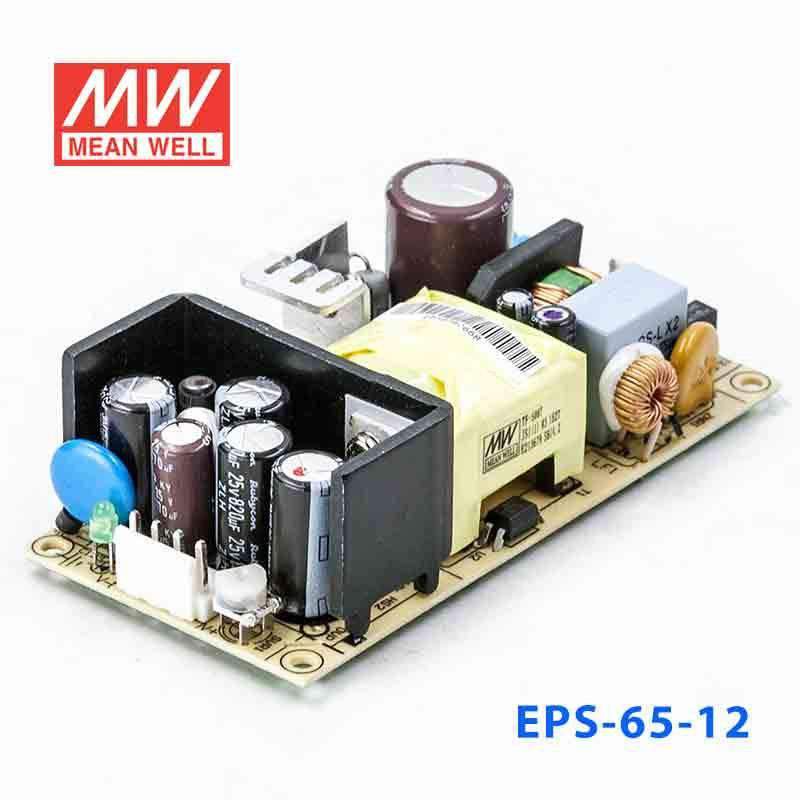

Mean Well EPS-65-12 Power Supply 65W 12V
The EPS-65 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.04 Watt
-
Output Voltage12 Volt
-
Rated Current5.42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-12 for a 12V automation controller or PLC accessory load?
Yes, if the equipment requires constant 12V DC and the total demand stays within 5.42A and 65.04W. That makes it suitable for many 12V automation controllers, PLC accessory loads, and related industrial electronics.
Is the EPS-65-12 a good fit for 12V HMI, display, or operator interface systems?
It can be a good fit when the HMI or display system runs on 12V constant voltage and remains under 65.04W. Compared with smaller 12V siblings such as EPS-45S-12 at 45.6W and EPS-35-12 at 36W, it provides more output capacity.
Would this 12V supply work for industrial monitoring, alarm, or communication hardware?
Yes, for 12V DC hardware that needs a regulated constant voltage source and draws no more than 5.42A. That aligns with many monitoring, alarm, and communication assemblies used inside industrial control equipment.
Can the EPS-65-12 power multiple low-voltage 12V devices inside one enclosure?
It can support multiple 12V devices as long as the combined load stays within 65.04W and 5.42A. The 101.6 x 50.8 x 29.0 mm form factor is also suited to internal use where more output is needed than the smaller 45W class.
Is the EPS-65-12 suitable for outdoor or exposed industrial locations?
No IP rating is provided in the listed specs, so this unit is better considered for protected indoor enclosures rather than exposed outdoor mounting. Its operating temperature range is -30°C to +70°C, but environmental suitability should still be judged with the lack of a stated IP rating.
How does the EPS-65-12 compare with the other EPS-65 and EPS-65S models?
The EPS-65 group includes EPS-65-3.3 at 36.3W, 3.3V, 11A; EPS-65-5 at 55W, 5V, 11A; EPS-65-7.5 at 60W, 7.5V, 8A; EPS-65-12 at 65.04W, 12V, 5.42A; EPS-65-15 at 65.1W, 15V, 4.34A; EPS-65-24 at 65.04W, 24V, 2.71A; EPS-65-36 at 65.16W, 36V, 1.81A; and EPS-65-48 at 65.28W, 48V, 1.36A. The EPS-65S group lists EPS-65S-3.3 at 33W, 3.3V, 10A; EPS-65S-5 at 50W, 5V, 10A; EPS-65S-7.5 at 60W, 7.5V, 8A; EPS-65S-12 at 65W, 12V, 5.42A; EPS-65S-15 at 65.1W, 15V, 4.34A; EPS-65S-24 at 65W, 24V, 2.71A; and EPS-65S-48 at 65.3W, 48V, 1.36A.
