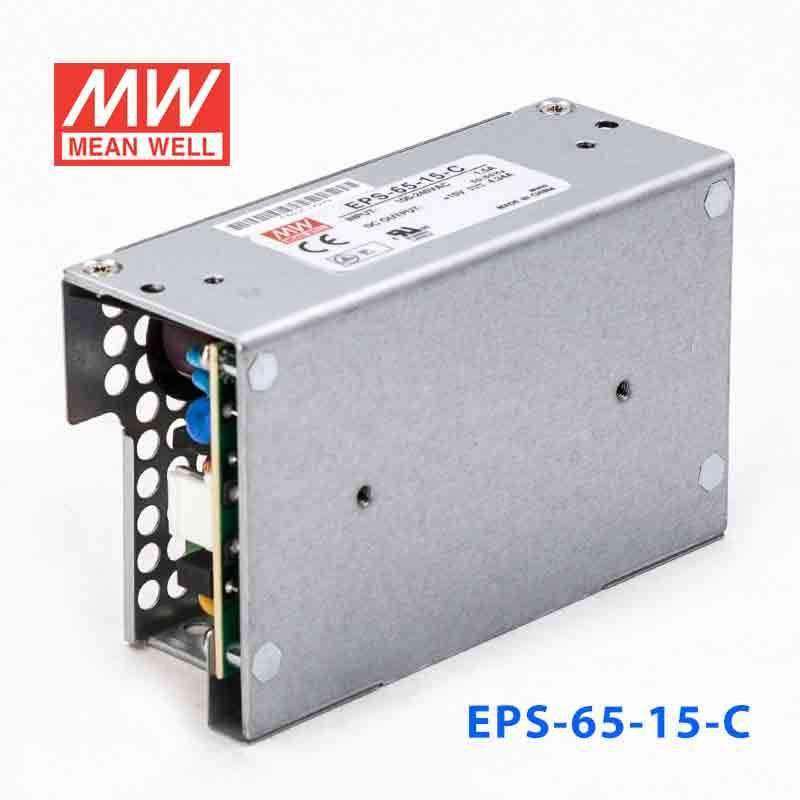

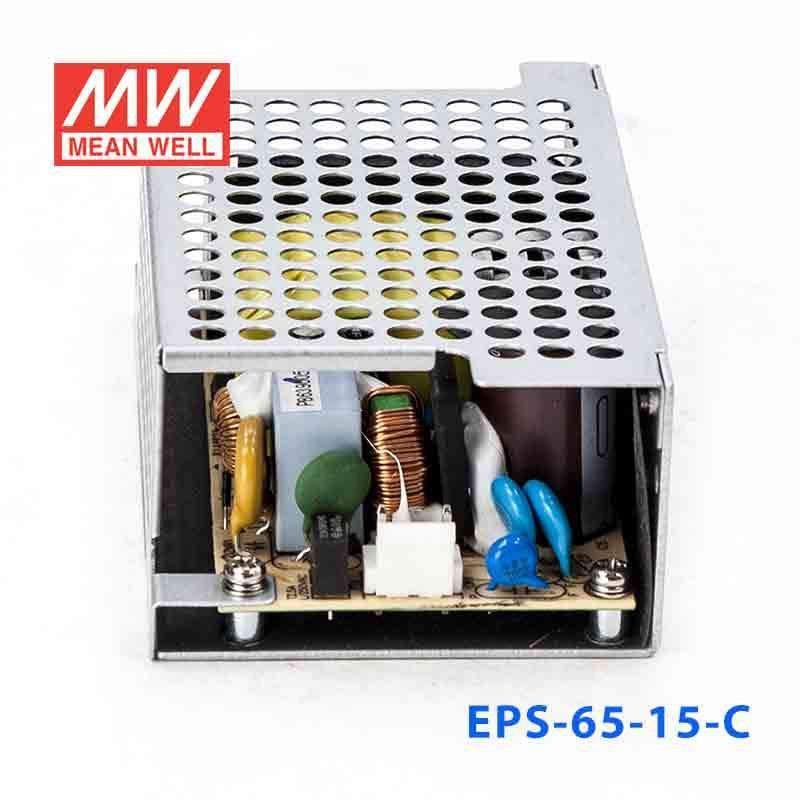

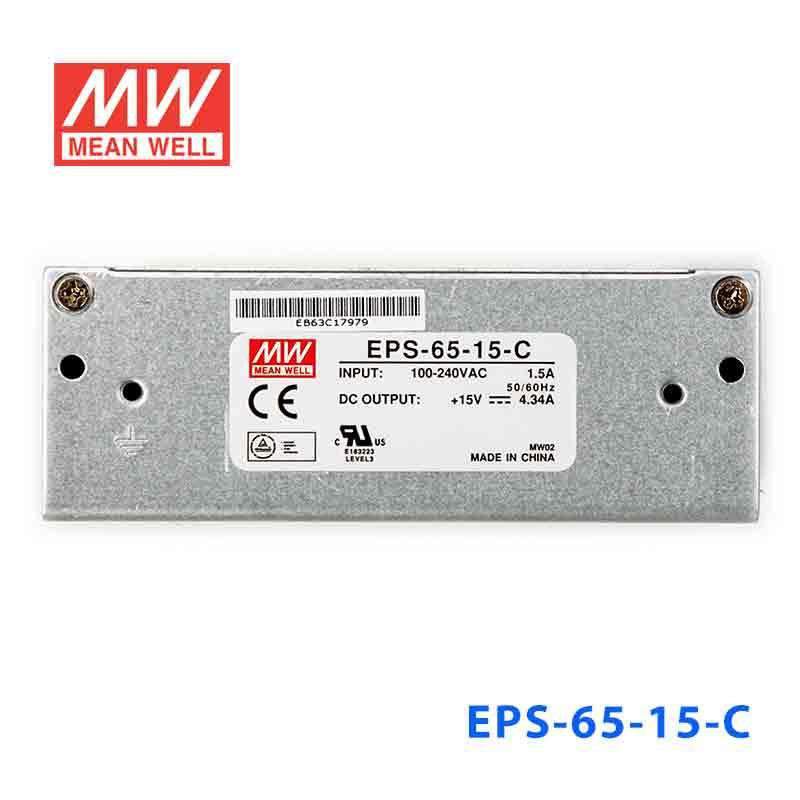

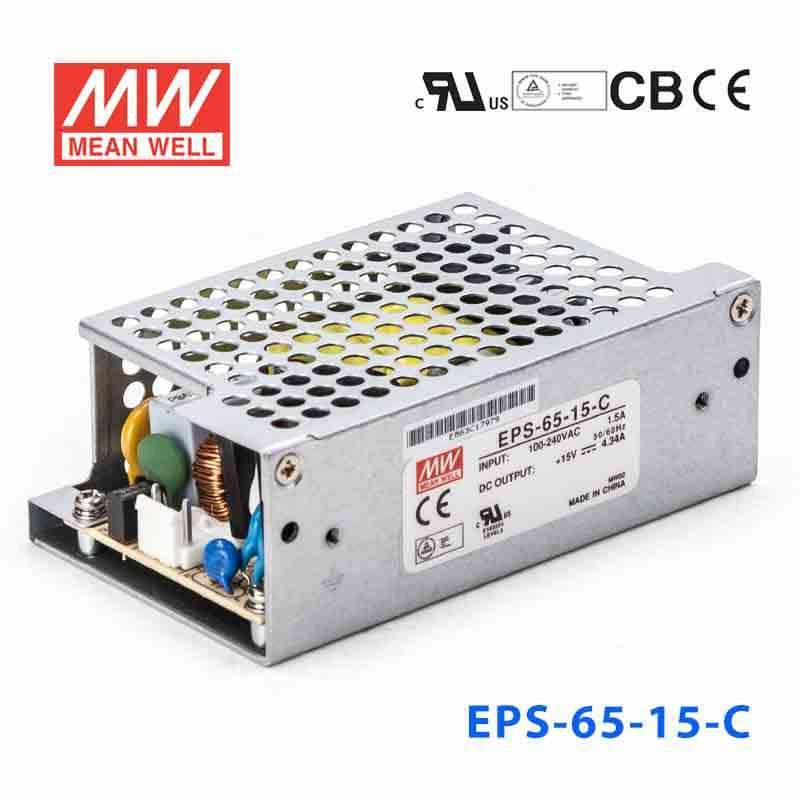

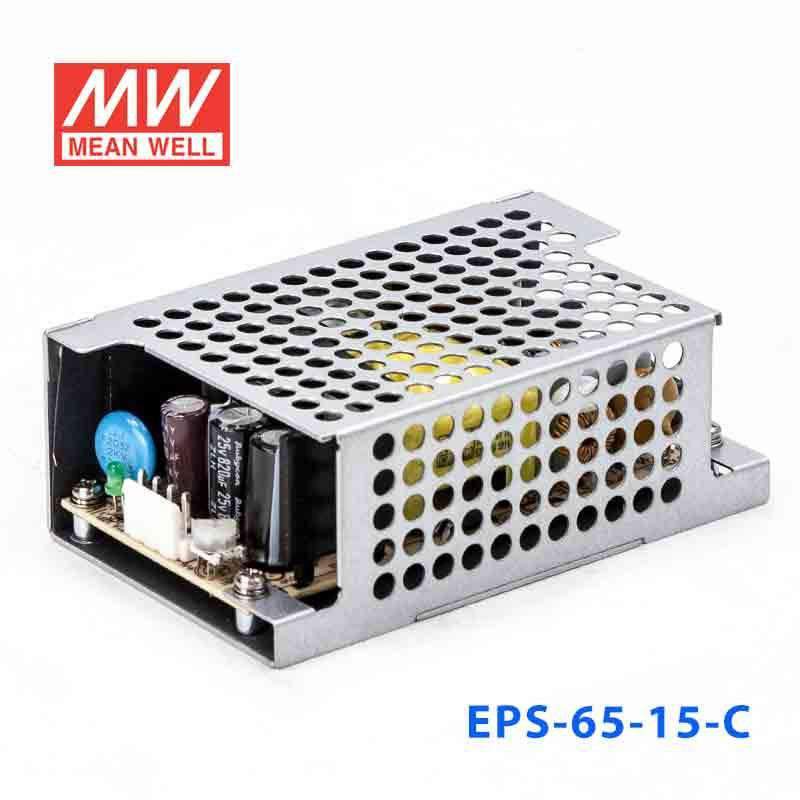

Mean Well EPS-65-15-C Power Supply 65W 15V
The EPS-65-15 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.1 Watt
-
Output Voltage15 Volt
-
Rated Current4.34 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-15-C in a compact 15V automation cabinet?
Yes, it provides constant voltage 15V output up to 4.34A and 65.1W, which suits compact automation cabinets built around a 15V DC bus. Its wide 90-264VAC input also supports deployment across varied AC mains conditions.
Is the EPS-65-15-C suitable for powering 15V control boards or interface modules?
It is suitable when those boards or modules require regulated 15V DC and their combined load does not exceed 4.34A or 65.1W. This is the main fit case for a constant voltage 15V power supply in this size class.
Can this model be used for 15V embedded electronics in OEM equipment?
Yes, for OEM equipment designed around a 15V rail, this supply can support embedded electronics up to 4.34A and 65.1W. The 103.4 × 62.0 × 37.0 mm form factor may also matter where enclosure space is limited.
Is the EPS-65-15-C rated for outdoor use?
The supplied specs show an operating temperature range of -30°C to +70°C, but they do not provide an IP rating. Based on the provided data, temperature capability is defined, while outdoor ingress protection is not.
How do I choose between the EPS-65-15 and EPS-65-15-C?
Both versions are rated at 15V, 4.34A, and 65.1W with a 90-264VAC input and a -30°C to +70°C operating temperature range. The main factual difference in the supplied specs is size and weight: EPS-65-15 is 101.6 × 50.8 × 29.0 mm at 0.15 kg, while EPS-65-15-C is 103.4 × 62.0 × 37.0 mm at 0.3 kg.
