Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

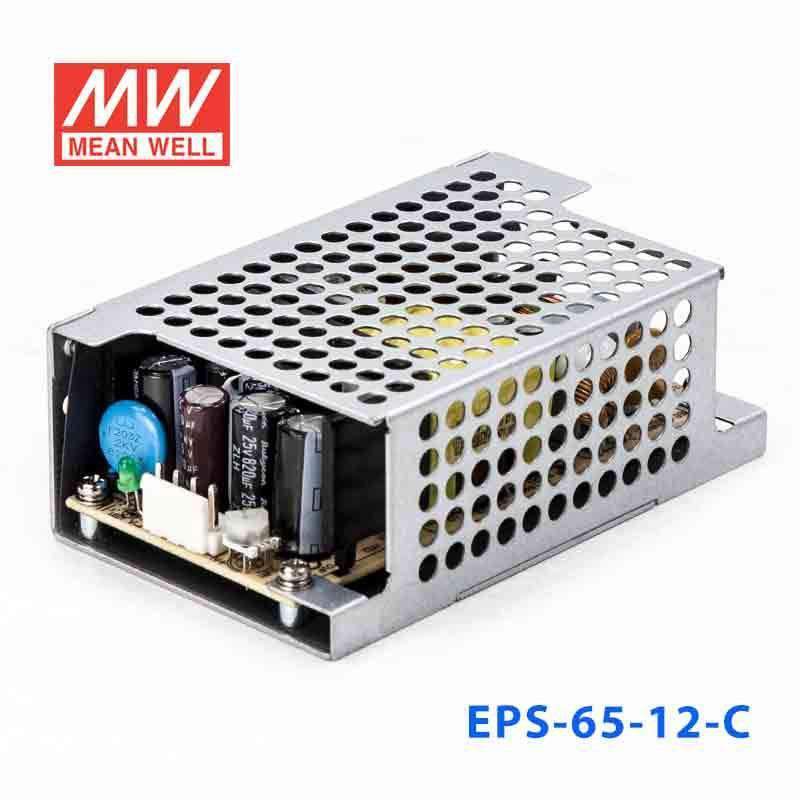

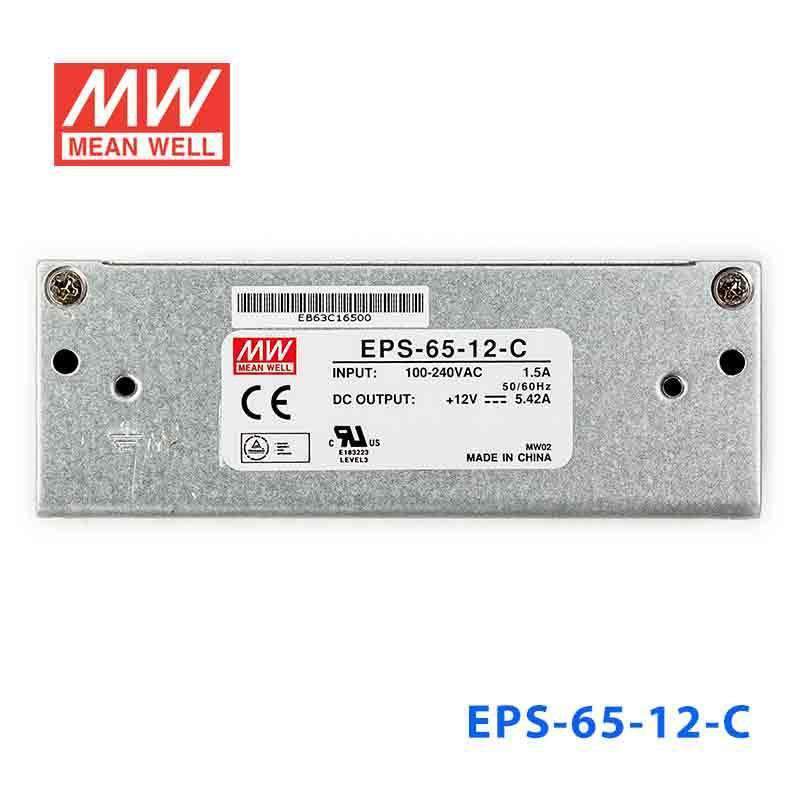

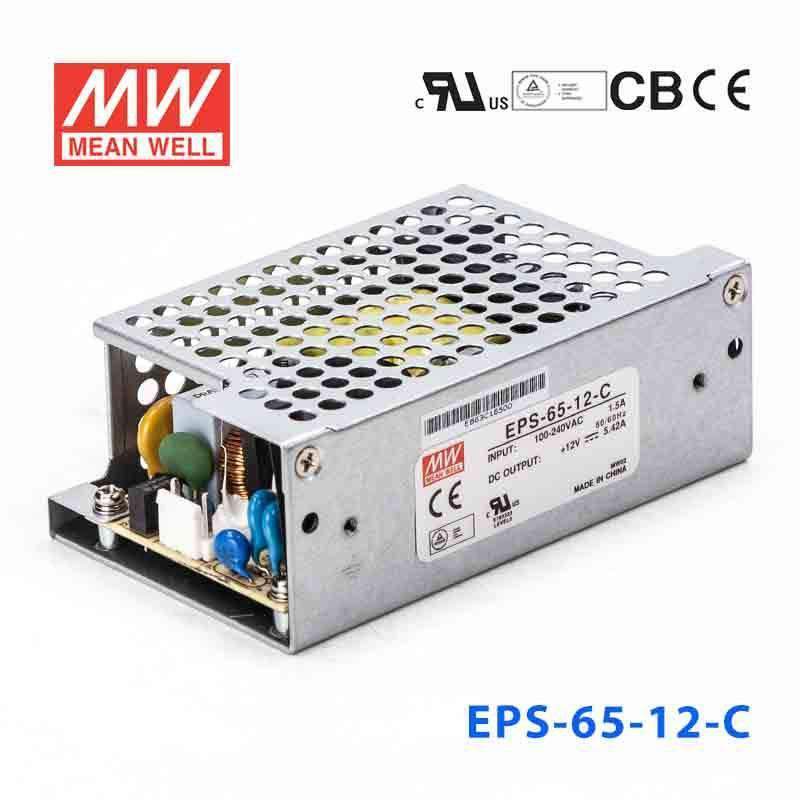

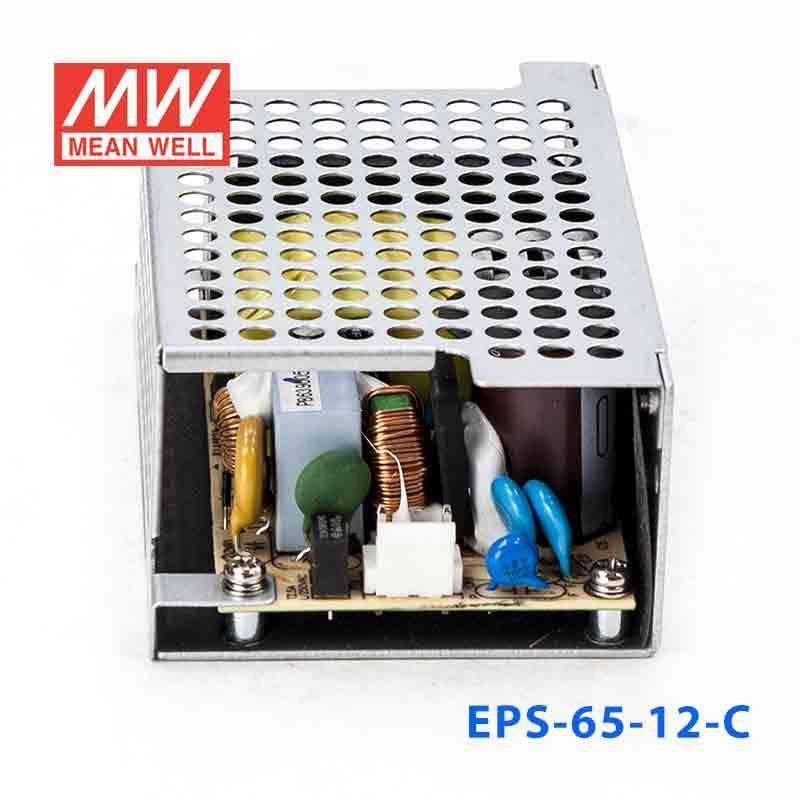

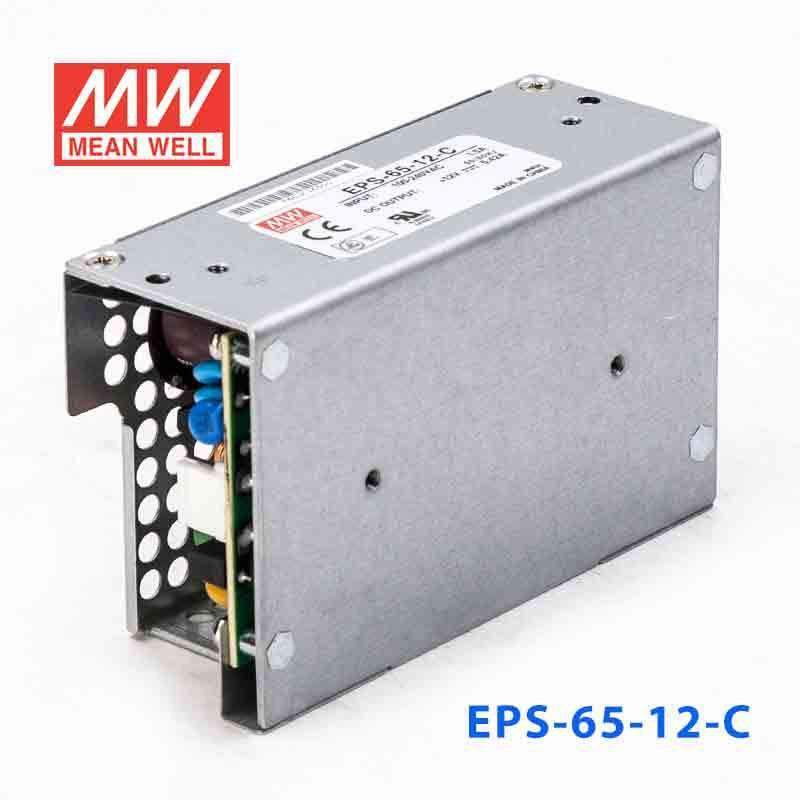

Mean Well EPS-65-12-C Power Supply 65W 12V
The EPS-65-12 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.04 Watt
-
Output Voltage12 Volt
-
Rated Current5.42 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.07 in
-
Width2.44 in
-
Height1.46 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-12-C for a 12V industrial control panel?
Yes, this model is a constant voltage 12V supply rated for 5.42A and 65.04W, which fits many small industrial control panel loads that require regulated 12V DC. Its 90-264VAC input also works across common global AC input ranges.
Is this power supply suitable for 12V embedded systems or SBC-based equipment?
It can be a fit when the embedded system requires a 12V constant voltage source and the total load stays within 5.42A or 65.04W. That makes it relevant for embedded hardware, edge devices, or controller assemblies built around a 12V DC power rail.
Can the EPS-65-12-C power 12V automation devices like relays, sensors, or small control assemblies?
Yes, it is intended for constant voltage 12V output, so it can support 12V automation loads as long as their combined draw does not exceed 5.42A and 65.04W. This makes it appropriate for compact automation assemblies that standardize on 12V DC.
Is the EPS-65-12-C appropriate for indoor or outdoor environments?
The supplied specs list an operating temperature range of -30°C to +70°C, which supports use across a wide temperature span. No IP rating is provided in the supplied data, so these specs do not define it for exposed outdoor wet or dusty locations.
How do I know if 65.04W is enough for my 12V load?
Match your equipment to the 12V output and keep the total demand at or below 5.42A and 65.04W. If the load needs more than 5.42A at 12V, this model is undersized.
