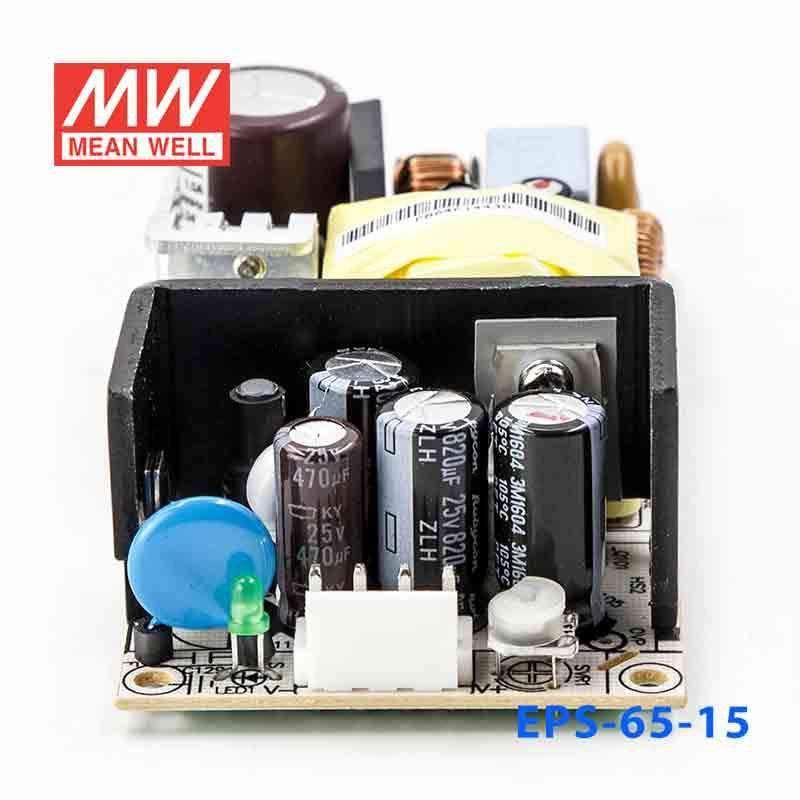

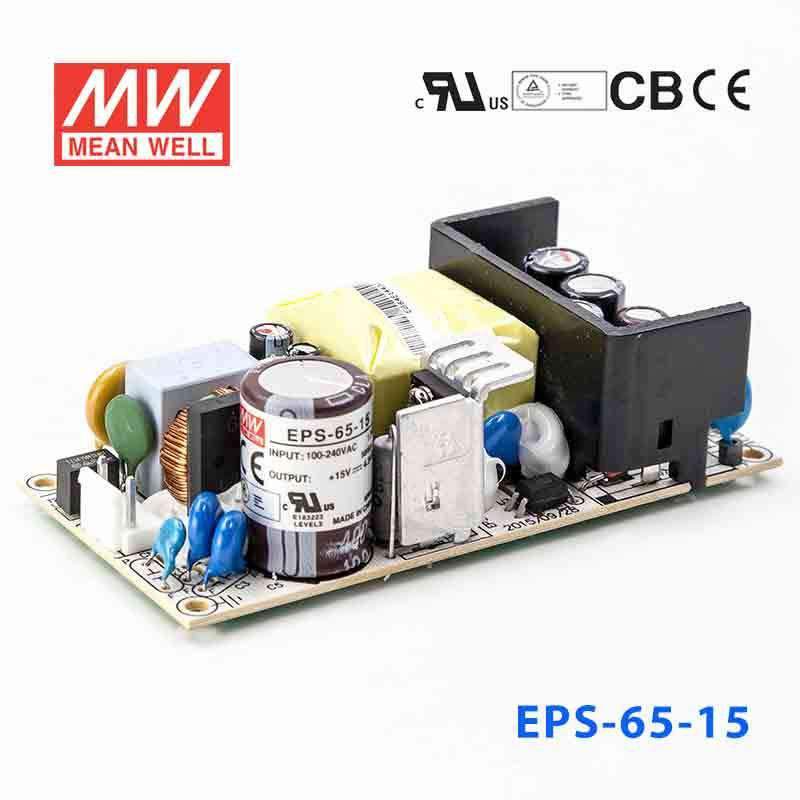

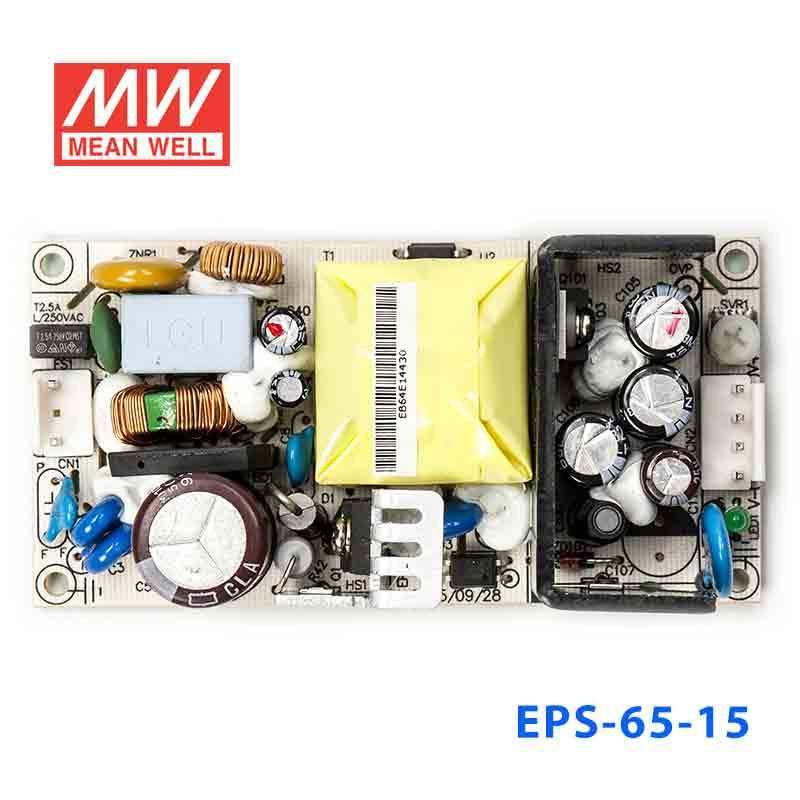

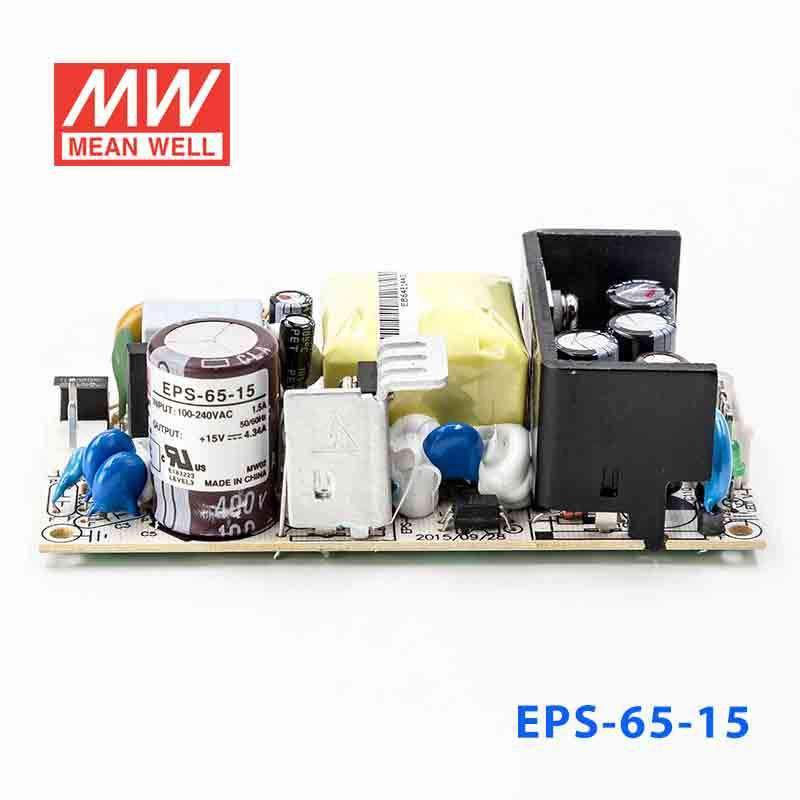

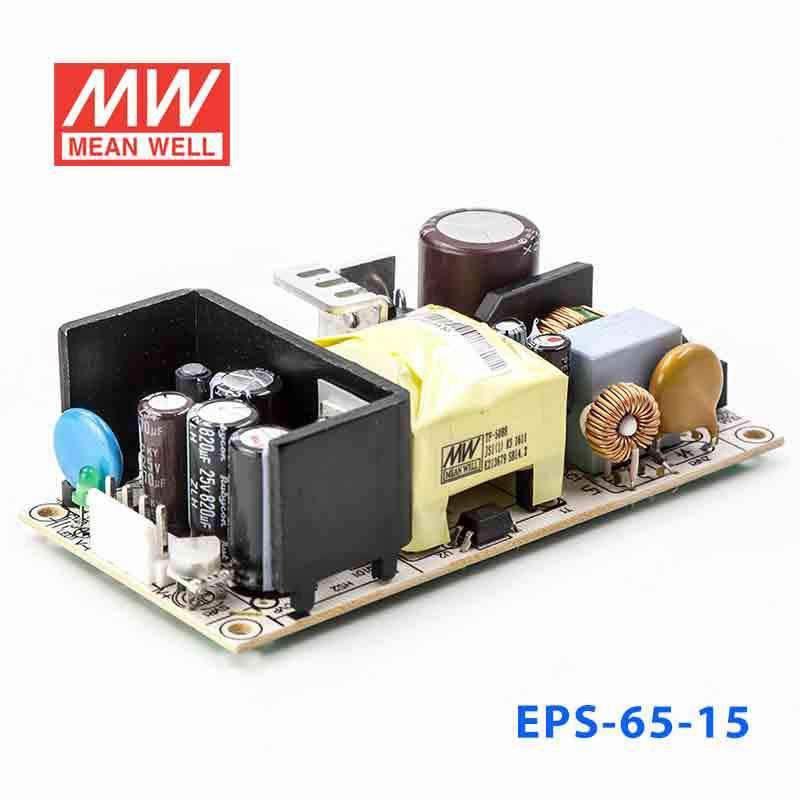

Mean Well EPS-65-15 Power Supply 65W 15V
The EPS-65 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.1 Watt
-
Output Voltage15 Volt
-
Rated Current4.34 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-15 for a 15V industrial control or monitoring assembly?
Yes, if the assembly requires a constant voltage 15V DC source and draws no more than 4.34A or 65.1W. That makes it relevant for compact industrial electronics built around a 15V rail.
Is this a good fit for 15V test, measurement, or lab-built electronic equipment?
It can be used for 15V electronic equipment that needs stable constant voltage output and stays within 4.34A. The 65.1W capacity gives more headroom than lower-power 15V models in the same series.
Can the EPS-65-15 power 15V embedded or communications hardware?
Yes, when the device is designed for 15V DC input and the load remains at or below 4.34A and 65.1W. It is a practical choice for embedded or communications assemblies that are not based on 12V or 24V rails.
Will this model handle demanding temperature conditions indoors?
The specified operating temperature range is -30°C to +70°C, so it is rated for broad indoor temperature conditions. The provided specs do not include an IP rating, so outdoor exposure protection is not defined here.
What should I check before choosing this 15V model over a smaller 15V supply?
Check that your equipment needs 15V constant voltage and compare the required current and wattage against this unit's 4.34A and 65.1W output. If your load is lower, smaller 15V models in the series may also meet the requirement, but this version gives more output headroom.
