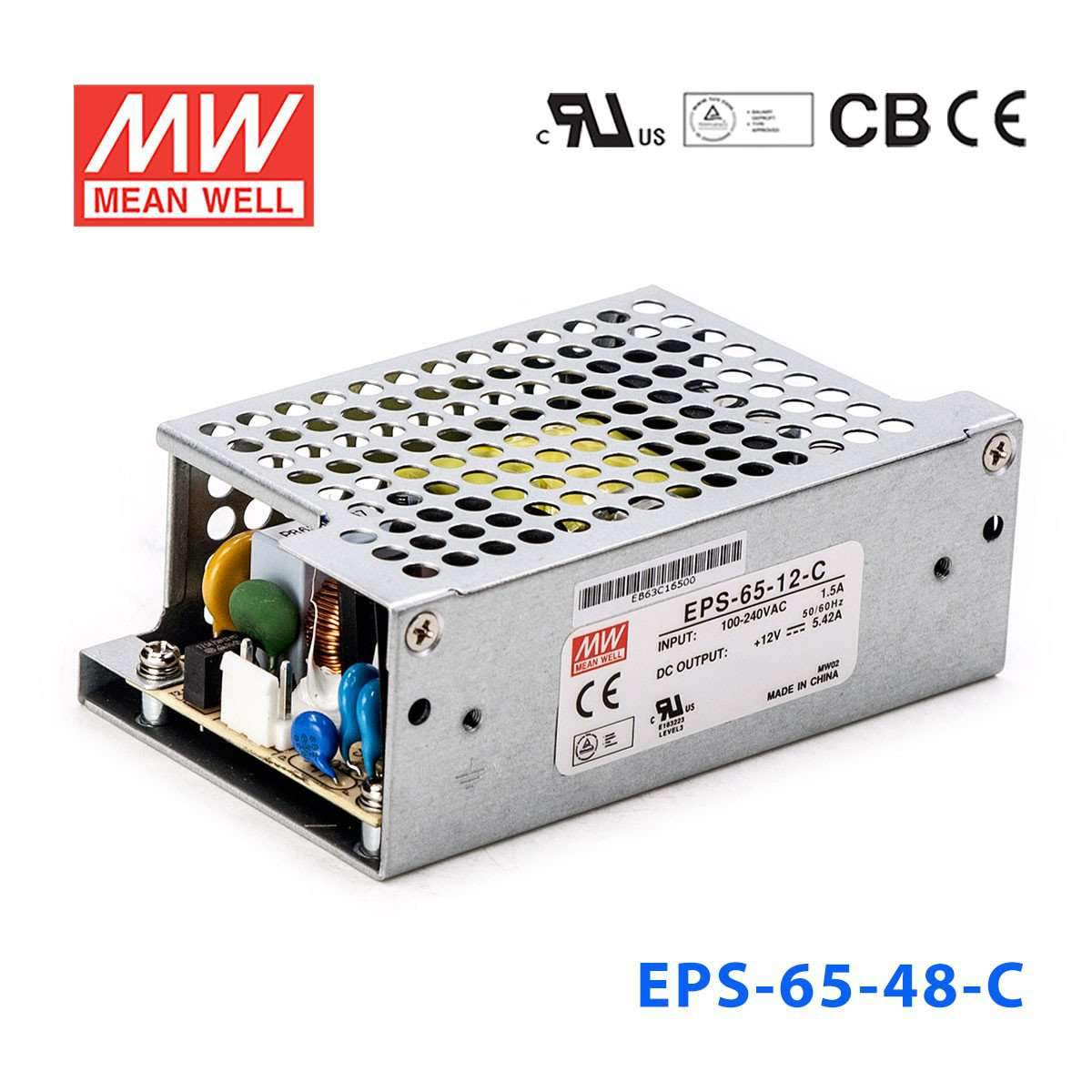

Mean Well EPS-65-48-C Power Supply 65W 48V 1.36A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-65-48-C Power Supply 65W 48V 1.36A
Overview
EPS-65-48-C is the 48V output model of this series: rated current 1.36A, rated power 65.28W, typical efficiency 90%. Type C: Enclosed type.
Features
- Universal AC input / Full range
- Optional L-Bracket and cover
- High efficiency up to 90%
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 4"×2" compact size
- LED indicator for power on
- No load power consumption<0.3W
- Operating altitude up to 4000 meters
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 1.36A
- CURRENT RANGE
- 0 ~ 1.5A
- RATED POWER
- 65.28W
- PEAK LOAD(10sec.)Note.6
- 72W
- RIPPLE & NOISE (max.)Note.2
- 300mVp-p
- VOLTAGE ADJ. RANGE
- 43.2 ~ 52.8V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1 A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 60A/230VAC
- LEAKAGE CURRENT
- <2mA/240VAC
PROTECTION
- OVER LOAD
- 115 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 53.3 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to output load derating curve)
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃(0 ~ 50℃)
- OPERATING ALTITUDENote.7
- 4000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9254.1 Class B,GB17625 Class A,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 3077.6K hrs min. Telcordia SR-332 (Bellcore) ; 563.0K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- PCB:101.6*50.8*29mm (L*W*H) ; with optional CASE:103.4*62*37mm (L*W*H)
- PACKING
- PCB: 0.15Kg; 96pcs/ 15.4 Kg/1.39CUFT ; with optional CASE: 0.3Kg; 45pcs/ 14.5Kg/0.63CUFT
MODEL ENCODING
- Blank
- Blank
- C (this model)
- Enclosed type
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 5. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates4
Test reports1
Catalogues1
FAQ
Can I use the EPS-65-48-C to power a 48V PLC, relay bank, or industrial control circuit?
Yes, if the load is designed for constant-voltage 48V DC and stays within 1.36A and 65.28W. That makes it suitable for many 48V industrial control, automation, and embedded systems that need a regulated 48V supply from a 90-264VAC input.
Is the EPS-65-48-C a good fit for 48V telecom or network equipment that needs a compact internal power supply?
It can be a fit for 48V equipment that accepts a constant-voltage input and draws no more than 1.36A or 65.28W. Its 103.4 × 62.0 × 37.0 mm size and 0.3 kg weight make it suited to compact internal equipment layouts.
Can the EPS-65-48-C be used in embedded or OEM devices that need wide AC input tolerance?
Yes, it accepts 90-264VAC input and provides a constant 48V output up to 1.36A. That wide input range is useful for embedded and OEM equipment intended for varied AC mains environments.
Can I use the EPS-65-48-C for a 48V automation sensor or actuator system?
It can support 48V automation loads when the total demand does not exceed 1.36A or 65.28W. Because it is a constant-voltage model, it is best matched to equipment specified for a fixed 48V DC supply.
Is the EPS-65-48-C suitable for outdoor or harsh-temperature installations?
The operating temperature range is -30°C to +70°C (per the output load derating curve), so it is designed for a broad temperature span. No IP rating is listed in the provided specs, so outdoor suitability depends on the final enclosure rather than this power supply alone.
How does the EPS-65-48-C compare with other 48V models in the EPS series?
Within the EPS-65 series on this datasheet, the 48V options are EPS-65-48 and EPS-65-48-C, both rated 48V, 1.36A and 65.28W. EPS-65-48 is the 101.6 × 50.8 × 29.0 mm PCB version at 0.15 kg, while EPS-65-48-C is 103.4 × 62.0 × 37.0 mm at 0.3 kg; other EPS series are not covered by this sheet.
