Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

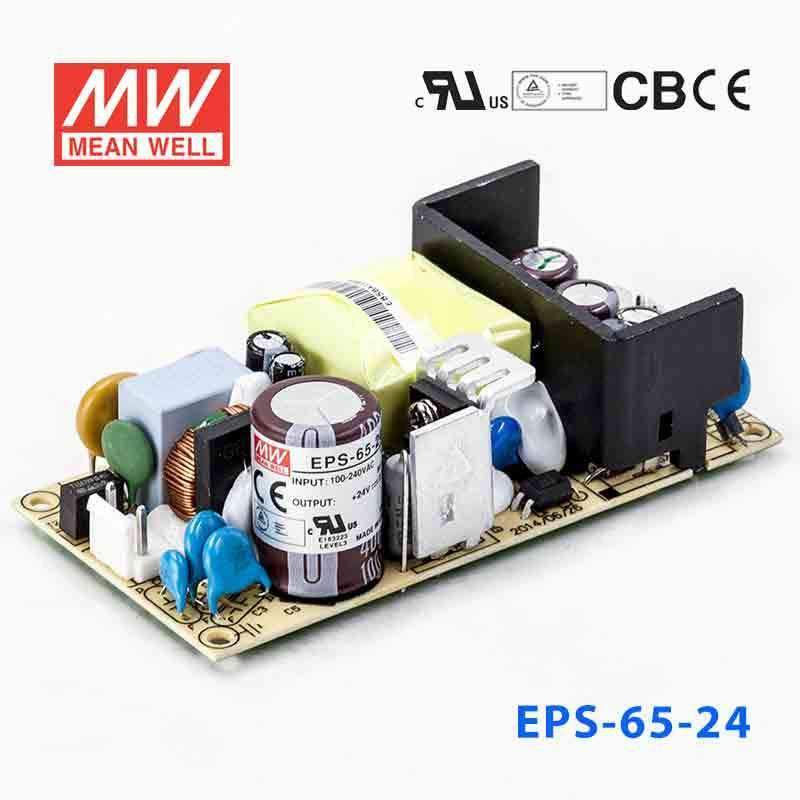

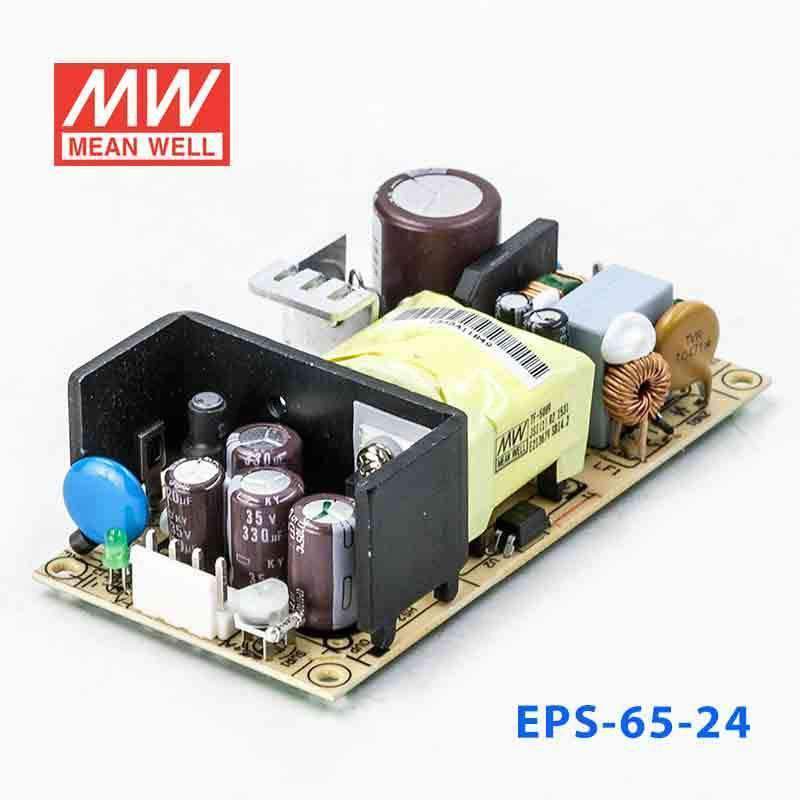

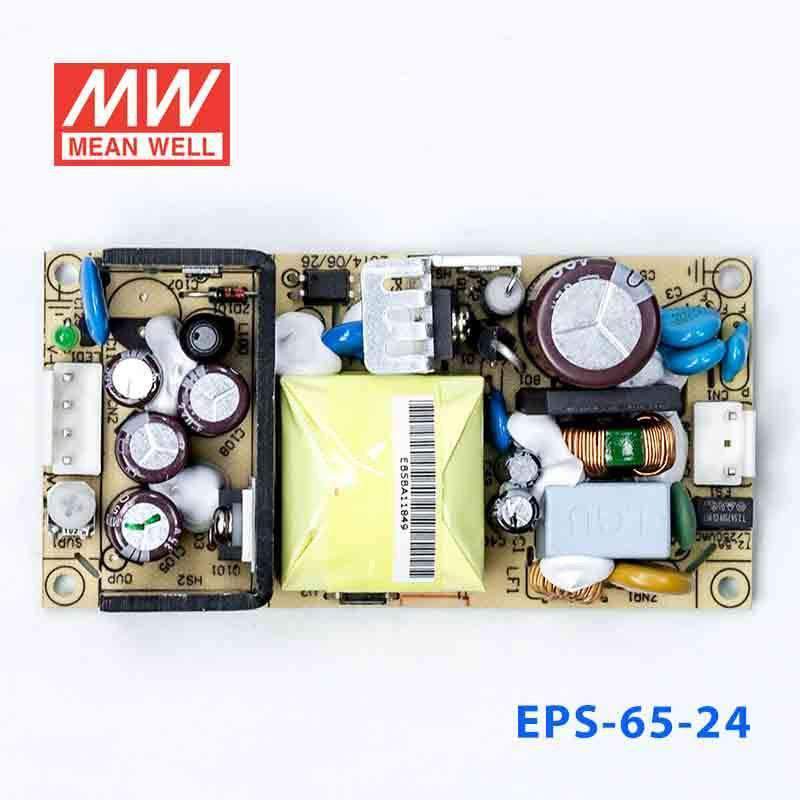

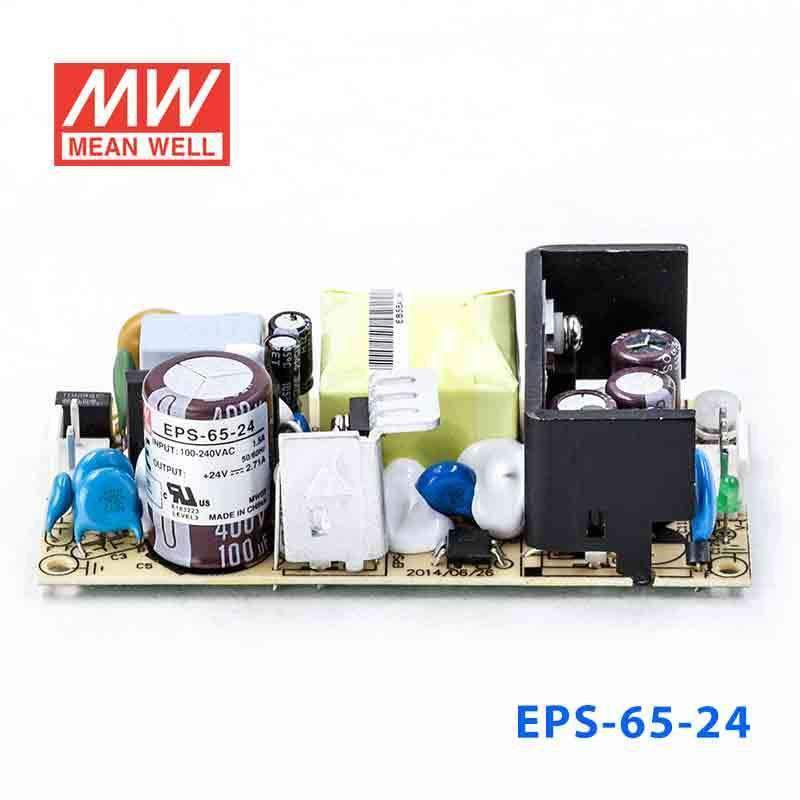

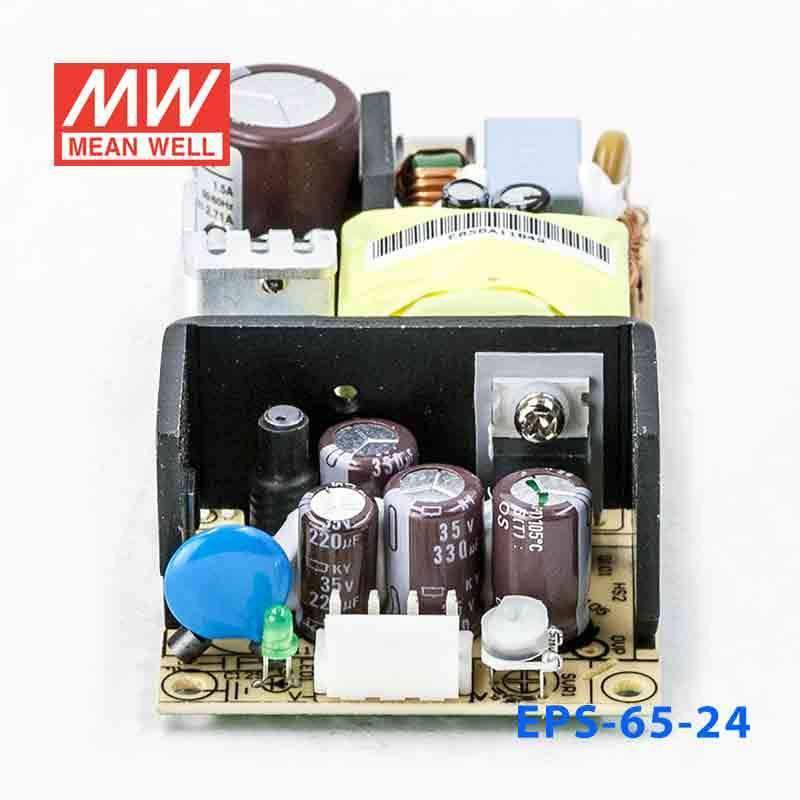

Mean Well EPS-65-24 Power Supply 65W 24V
The EPS-65 is a 65W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368- TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating65.04 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the EPS-65-24 for 24V PLC accessories or industrial control devices?
Yes, this is a constant voltage 24V supply rated for 2.71A and 65.04W, so it fits many small 24V PLC accessories and control devices. It is appropriate when the total 24V load stays within those limits.
Is the EPS-65-24 suitable for 24V sensors, relays, and automation peripherals?
It can be, provided the connected 24V automation peripherals together draw no more than 2.71A and 65.04W. That makes it relevant for modest 24V DC control and sensing assemblies rather than higher-current 24V systems.
Can this 24V model power industrial networking or communications hardware?
Yes, if the communications or networking hardware is designed for 24V DC input and stays within the 2.71A, 65.04W output rating. The wide 90-264VAC input is also useful where AC source conditions vary by region.
Is the EPS-65-24 better for indoor equipment than exposed outdoor installations?
The operating temperature range is specified as -30°C to +70°C, which supports use in a wide range of equipment environments. No IP rating is listed in the supplied specs, so exposed outdoor dust or water protection is not defined here.
How can I tell whether this 24V power supply has enough capacity for my load?
Your load must require 24V constant voltage and remain at or below 2.71A and 65.04W. If the application needs more than 2.71A at 24V, you should move to a higher-output 24V model.
