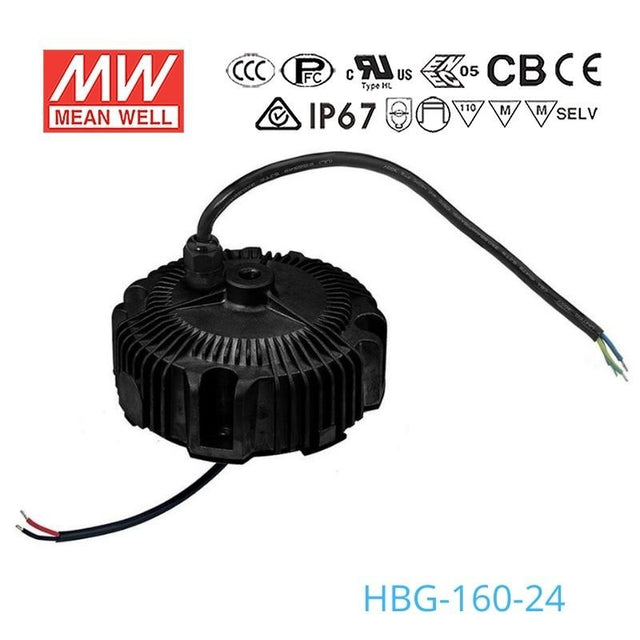

Mean Well HBG-160-24 Power Supply 160W 24V

Name: Mean Well HBG-160-24 Power Supply 160W 24V
Brand: Mean Well
SKU: HBG-160-24
Price: 50.78 USD
Availability: InStock

The HBG-160 is a 160W Mean Well power converter.

Key Features

✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Brand

Mean Well
Series

HBG Series
Power Rating

156 Watt
Output Voltage

24 Volt
Rated Current

6.5 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

5.97 in
Width

5.97 in
Height

2.62 in
Weight

3.37 lb

Frequently Asked Questions

Can I use the HBG-160-24 for a 24V outdoor sign or channel-letter lighting project?

It can fit a 24V lighting load if the total load stays within 156W and 6.5A. Its IP67 waterproof rating supports outdoor or wet-location use, and the operating range is -40°C to +85°C.

Is this driver suitable for a 24V high bay or low bay LED fixture?

Yes, this model is specified for high/low bay light use and provides 24V output with up to 156W. It is a constant current unit with a 14-24V CC range, so the fixture needs to match that operating range.

Can I use this power supply for 24V architectural or perimeter lighting in wet areas?

It is built for 24V LED lighting loads up to 156W and carries an IP67 waterproof rating. That makes it better suited to exposed or wet environments than indoor-only drivers, provided the connected lighting load matches the 14-24V constant current range.

Will the HBG-160-24 work for a 24V LED strip run, and how much strip can it support?

Use the strip-length math as 156W divided by the strip's rated watts per meter. For example, the maximum supported length is 156 ÷ strip W/m, but you should check your strip rated power per meter and confirm the load is a 24V load within the 14-24V CC range.

Is the HBG-160-24 appropriate for outdoor or washdown locations?

This model is rated IP67 waterproof, which is intended for dust-tight and wet-location use. It also has a -40°C to +85°C operating temperature range, so the environmental limits are broader than many indoor-only drivers.

How does the HBG-160-24 compare with other HBG-160 voltage options?

Within the HBG-160 family, the 24V version is 156W at 6.5A with a 14-24V CC range. The 36V version is 158.4W at 4.4A with a 21-36V CC range, the 48V version is 158.4W at 3.3A with a 28-48V CC range, and the 60V version is 156W at 2.6A with a 36-60V CC range.
