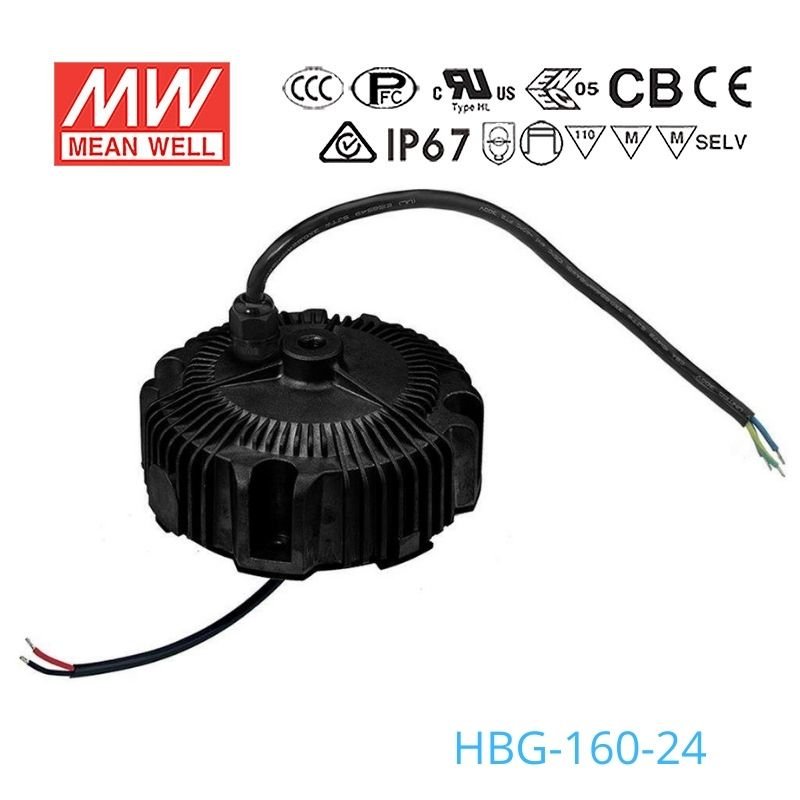

Mean Well HBG-160-24 Power Supply 160W 24V 6.5A
Overview
HBG-160-24 is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 92%. Type Blank: Io fixed (IP67).
HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.2
- 14.4 ~ 24V
- RATED CURRENT
- 6.5A
- RATED POWER
- 156W
- RIPPLE & NOISE (max.)Note.3
- 200mVp-p
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 92%
- AC CURRENT (Typ.)
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28 ~ 34V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ151.68mm *66.5mm (D * H)
- PACKING
- 1.53Kg; 8pcs/13.8Kg/1.37CUFT
Certifications & ratings
- Type
- Type HL
MODEL ENCODING
- Blank (this model)
- Io fixed; IP67
- A
- Io adjustable through built-in potentiometer; IP65
- B
- 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
- AB
- Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
- DA
- DALI control technology; IP67
Test conditions and notes11
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the HBG-160-24 for a 24V outdoor sign or channel-letter lighting project?
It can fit a 24V lighting load if the total load stays within 156W and 6.5A. Its IP67 waterproof rating supports outdoor or wet-location use, and the specified case temperature (Tcase) range is -40°C to +85°C.
Is this driver suitable for a 24V high bay or low bay LED fixture?
Yes, this model is specified for high/low bay light use and provides 24V output with up to 156W. It is a constant voltage + constant current unit with a 14.4-24V CC range, so the fixture needs to match that operating range.
Can I use this power supply for 24V architectural or perimeter lighting in wet areas?
It is built for 24V LED lighting loads up to 156W and carries an IP67 waterproof rating. That makes it better suited to exposed or wet environments than indoor-only drivers, provided the connected lighting load matches the 24V output or the 14.4-24V constant current range.
Will the HBG-160-24 work for a 24V LED strip run, and how much strip can it support?
Use the strip-length math as 156W divided by the strip's rated watts per meter. For example, the maximum supported length is 156 ÷ strip W/m, but you should check your strip rated power per meter and confirm the load is a 24V load within 156W and 6.5A.
Is the HBG-160-24 appropriate for outdoor or washdown locations?
This model is rated IP67 waterproof, which is intended for dust-tight and wet-location use. It also has a -40°C to +85°C case temperature (Tcase) rating, with output derating at higher temperatures, so check the installation against both limits.
How does the HBG-160-24 compare with other HBG-160 voltage options?
Within the HBG-160 family, the 24V version is 156W at 6.5A with a 14.4-24V CC range. The 36V version is 158.4W at 4.4A with a 21.6-36V CC range, the 48V version is 158.4W at 3.3A with a 28.8-48V CC range, and the 60V version is 156W at 2.6A with a 36-60V CC range.
