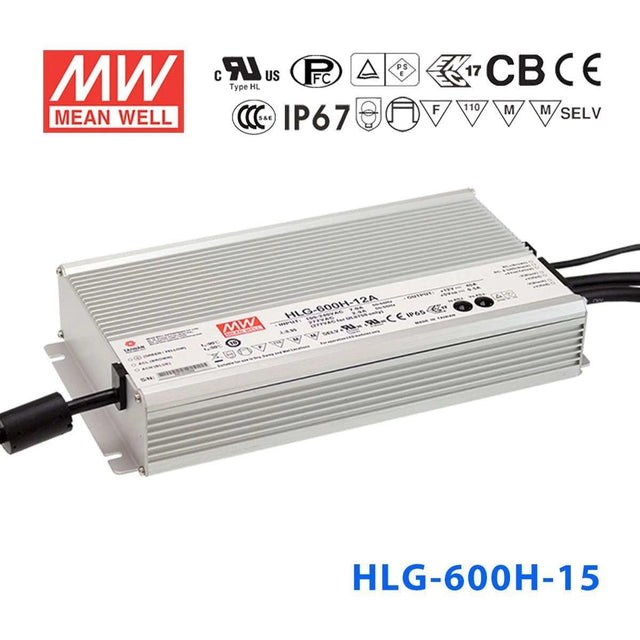

Mean Well HLG-600H-15 Power Supply 540W 15V
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-15 to power 15V LED strips for commercial lighting?
Yes. The HLG-600H-15 delivers 540W at 15V with up to 36A of output current, so it can drive large runs of 15V LED strips used in retail displays, office cove lighting, or hospitality accent lighting. Its IP67 waterproof rating also allows outdoor installation.
Is the HLG-600H-15 appropriate for powering 15V LED modules in channel letter signs?
Yes. With 540W at 15V, it has enough capacity for large channel letter or cabinet sign installations that use 15V LED modules. The wide 90-305VAC input makes it compatible with commercial power systems worldwide, and the IP67 rating permits mounting inside or outside sign cabinets.
Can the HLG-600H-15 handle multiple 15V LED lighting zones from a single unit?
Yes, provided the combined load of all zones does not exceed 540W. At 36A on the 15V output, you could split the supply to several parallel 15V strip or module runs. Keep in mind this is a fixed-output model with no built-in dimming or voltage adjustment, so all zones will run at the same level.
How many meters of 15V LED strip can the HLG-600H-15 support?
That depends on the strip's rated power per meter. The HLG-600H-15 supplies up to 540W at 15V. For example, if your strip draws 15W/m, you could run up to 36 meters (540W / 15W per meter = 36m). Always check your strip's rated power per meter and keep the total load at or below 540W.
Can the HLG-600H-15 be installed outdoors in a fully exposed location?
Yes. Its IP67 waterproof rating means the enclosure is protected against temporary submersion up to 1 meter, so direct rain, snow, and washdowns are not a concern. The aluminium casing and -40°C to +90°C operating range further support outdoor use in harsh climates.
What are the differences between the HLG-600H-15, 15A, 15AB, and 15B?
All four share the same 540W / 15V / 36A core specs. The base HLG-600H-15 has no output adjustment or dimming and is IP67 waterproof. The -15A adds a built-in potentiometer for output voltage/current adjustment and is IP65. The -15AB adds both adjustment and 1-10V/PWM dimming (IP65). The -15B adds dimming input only and retains IP67.
