Over 15 years experience of providing support of MEAN WELL Power Supplies

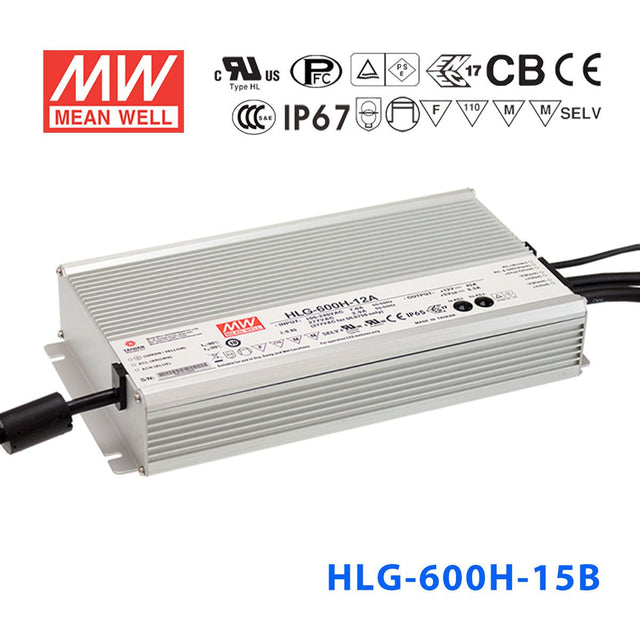

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HLG-600H-15AB Power Supply 540W 15V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-15AB Power Supply 540W 15V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-15AB with a building automation system to dim 15V LED lighting?
Yes. The AB suffix means this model accepts 1-10V analog or PWM dimming signals, so it integrates with building management systems, smart lighting controllers, or standalone dimmers. It also includes a built-in potentiometer for manual voltage and current adjustment.
Is the HLG-600H-15AB a good fit for large 15V LED strip installations in hospitality or retail?
Yes. It delivers 540W at 15V / 36A, enough to drive long runs of 15V LED strips for lobby cove lighting, display cases, or bar accent lighting. The dimming capability lets you create different lighting scenes throughout the day, and the adjustable output helps match the driver precisely to your LED load.
Can the HLG-600H-15AB power 15V LED sign modules while allowing brightness dimming?
Yes. At 540W and 15V output, it can supply large 15V sign module arrays. The 1-10V/PWM dimming input allows you to reduce sign brightness at night or per local regulations, while the potentiometer lets you fine-tune voltage and current to match the module string voltage.
How many meters of 15V LED strip can the HLG-600H-15AB power?
That depends on the strip's rated power per meter. The HLG-600H-15AB delivers up to 540W at 15V. For a strip drawing 12W/m, you could run up to 45 meters (540W / 12W per meter = 45m). Always check your strip's rated power per meter and keep total load at or below 540W.
Can the HLG-600H-15AB be used outdoors in a covered area?
Yes. With its IP65 water-resistant rating, the unit withstands dust and low-pressure water jets, making it suitable for sheltered outdoor installations like covered walkways, soffits, and canopies. For fully exposed rain or submersion scenarios, choose the IP67-rated HLG-600H-15B instead.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-600H Models
10 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable | 600W | 24V | 25A | IP67 | $197.89 | View |
| Mean Well HLG-600H-48B Power Supply 600W 48V- Dimmable | 600W | 48V | 12.5A | IP67 | $197.89 | View |
| Mean Well HLG-600H-12A Power Supply 480W 12V - Adjustable | 480W | 12V | 40A | IP65 | $194.30 | View |
| Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable | 600W | 24V | 25A | IP65 | $191.85 | View |
| Mean Well HLG-600H-24 Power Supply 600W 24V | 600W | 24V | 25A | IP67 | $199.50 | View |
| Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable | 600W | 54V | 11.2A | IP67 | $197.89 | View |
| Mean Well HLG-600H-24AB Power Supply 600W 24V - Adjustable and Dimmable | 600W | 24V | 25A | IP65 | $208.15 | View |
| Mean Well HLG-600H-12 Power Supply 480W 12V | 480W | 12V | 40A | IP67 | $199.50 | View |
| Mean Well HLG-600H-36 Power Supply 600W 36V | 600W | 36V | 16.7A | IP67 | $209.35 | View |
| Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable | 480W | 12V | 40A | IP67 | $197.89 | View |
