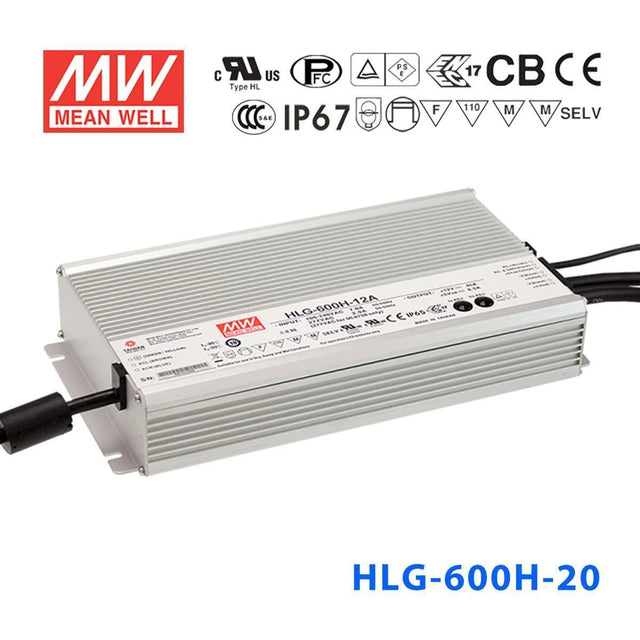

Mean Well HLG-600H-20 Power Supply 560W 20V
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-20 to power 20V LED strips for a large commercial lighting project?
Yes. The HLG-600H-20 provides 560W at 20V with up to 28A of output current, making it capable of driving extensive 20V LED strip runs for retail, warehouse, or architectural lighting. Its IP67 waterproof rating also permits outdoor installation in exposed locations.
Is the HLG-600H-20 a good choice for powering 20V LED modules in large illuminated signs?
Yes. At 560W and 20V / 28A, it can supply large arrays of 20V channel letters, light box modules, or cabinet sign LED boards. The wide 90-305VAC input handles commercial power systems globally, and the IP67 rating allows mounting inside or outside sign enclosures.
Can I power multiple 20V LED fixtures from a single HLG-600H-20?
Yes, as long as the combined wattage of all fixtures stays at or below 560W. At 28A on the 20V output, you have headroom for several parallel 20V LED runs or fixture groups. Note this is a fixed-output model with no built-in dimming or adjustment capability.
How many meters of 20V LED strip can the HLG-600H-20 support?
That depends on the strip's rated power per meter. The HLG-600H-20 delivers up to 560W at 20V. For a strip rated at 14W/m, you could run up to 40 meters (560W / 14W per meter = 40m). Always check your strip's rated power per meter and keep total load at or below 560W.
Can the HLG-600H-20 be installed outdoors in a location exposed to rain and freezing temperatures?
Yes. The IP67 waterproof rating protects against temporary submersion up to 1 meter, and the -40°C to +90°C operating temperature range covers extreme cold and heat. The aluminium casing resists corrosion, so the unit can handle direct rain, snow, and ice without additional enclosures.
What are the differences between the HLG-600H-20 and HLG-600H-20A?
Both share the same 560W / 20V / 28A core specs. The base HLG-600H-20 has a fixed output with no adjustment or dimming and is rated IP67 waterproof. The HLG-600H-20A adds a built-in potentiometer for output voltage and current adjustment but is rated IP65 water-resistant instead of IP67.
