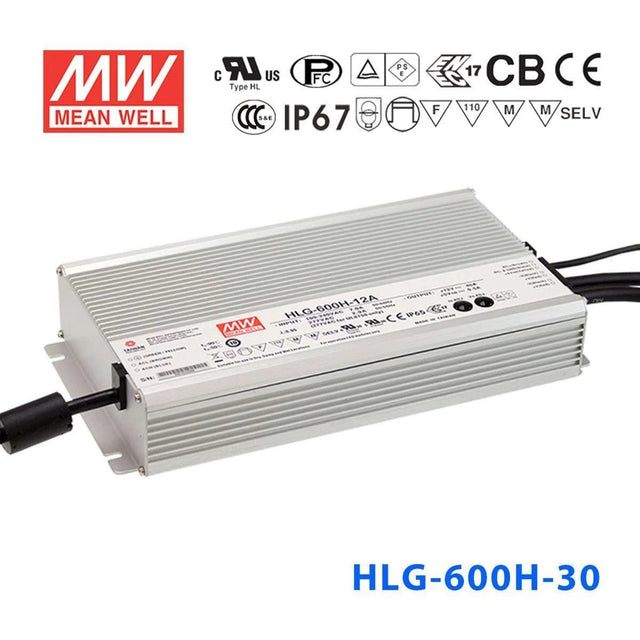

Mean Well HLG-600H-30 Power Supply 600W 30V
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage30 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-30 to power a large 30V LED lighting system?
Yes. The HLG-600H-30 delivers 30V at up to 20A (600W), making it suitable for high-wattage 30V LED installations such as long commercial LED strip runs, parking lot lighting, or industrial luminaires. Its IP67 waterproof rating allows direct outdoor mounting without an additional enclosure.
Is the HLG-600H-30 a good choice for 30V LED horticultural or grow lighting?
It can work if your grow lights operate at 30V and the total draw stays within 600W. The constant-current range of 15-30V accommodates grow light modules with varying forward voltages. The IP67 rating also suits the humid conditions common in greenhouse environments.
Can the HLG-600H-30 drive 30V LED modules in an outdoor signage application?
Yes. At 600W and 30V, it can power a large array of 30V LED sign modules. The IP67 rating and -40°C to +90°C operating range make it reliable for exposed exterior signage in all weather conditions. The fixed output simplifies installation where no adjustment is needed.
How many meters of 30V LED strip can the HLG-600H-30 support?
Divide 600W by the strip's rated power per meter. For a 30V strip at 15W/m, you could run 40 meters (600W / 15W per meter = 40m). For a 10W/m strip, up to 60 meters. Always verify your strip's rated power per meter and ensure total draw stays at or below 600W.
Is the HLG-600H-30 rated for permanent outdoor installation in harsh weather?
Yes. The IP67 rating means it is completely dust-tight and can withstand temporary water immersion up to 1 meter. Combined with its -40°C to +90°C operating temperature range and aluminium casing, it is designed for permanent outdoor mounting in rain, snow, and extreme temperatures.
What are the differences between the HLG-600H-30 and HLG-600H-30A?
Both deliver 600W at 30V / 20A with a CC range of 15-30V. The HLG-600H-30 has a fixed output and IP67 waterproof rating. The HLG-600H-30A adds output voltage/current adjustment via potentiometer but is rated IP65 instead of IP67. Choose the -30 for maximum waterproofing or the -30A when you need output tuning.
