Can I use the LPF-60-54 with a 54V LED strip or linear lighting product?

Yes, if the load is designed for 54V operation and stays within this model's 60.48W maximum and 1.12A output. To estimate strip length, divide 60.48W by the strip's rated watts per meter, and check your strip rated power per meter before sizing the run.

Is this a good choice for 54V signage lighting?

It can be used for 54V sign lighting loads that match the driver's output and remain within 60.48W. The IP67 waterproof rating also makes it suitable for signage exposed to weather.

Can the LPF-60-54 be used for outdoor facade or accent lighting?

Yes, for 54V LED lighting products that fit within the driver's 60.48W and 1.12A limits. Its IP67 rating and -40°C to +80°C operating range support outdoor conditions.

Would this driver suit a 54V LED lighting fixture that needs steady output?

This model provides 54V output with 1.12A current and up to 60.48W total power. It is suitable when the fixture's electrical requirements fall within the 32-54V constant current range and do not exceed the rated output.

Is the LPF-60-54 rated for wet environments?

Yes, it carries an IP67 waterproof rating, so it is appropriate for outdoor and wet-location use. The fully isolated plastic case also supports use in exposed environments where a sealed housing is preferred.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

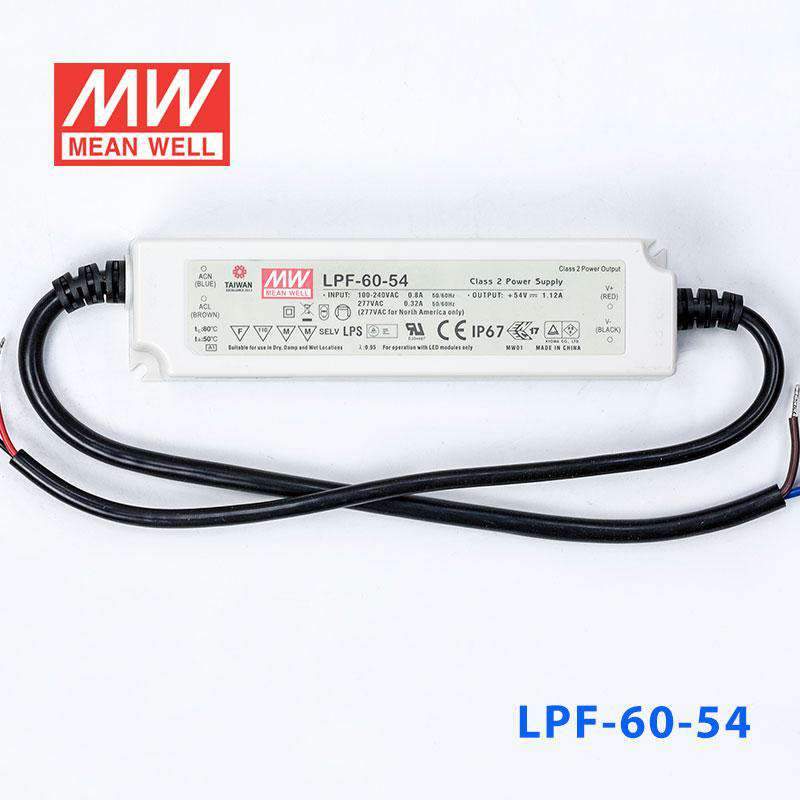

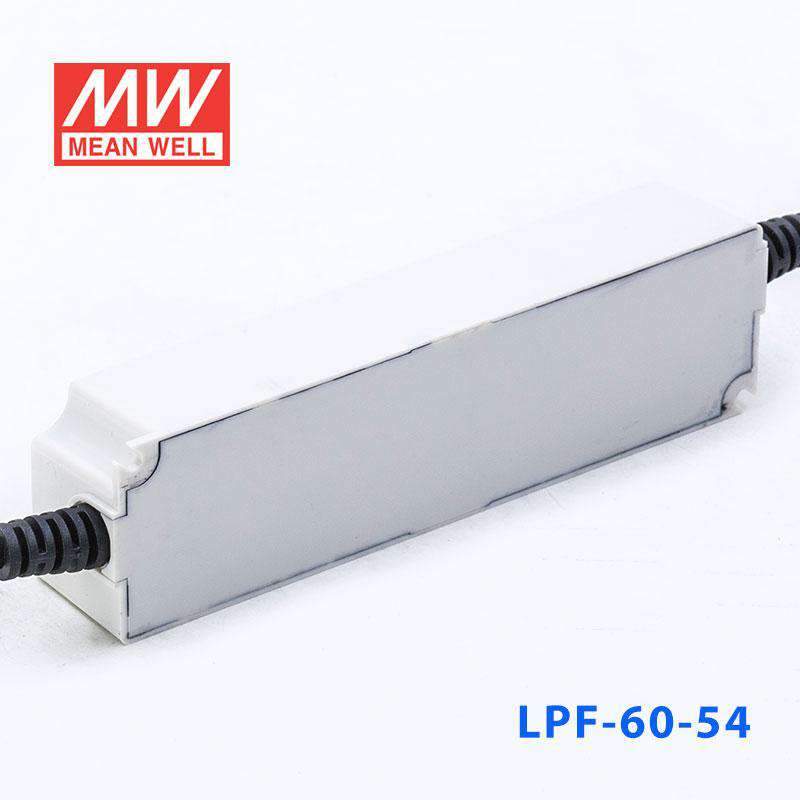

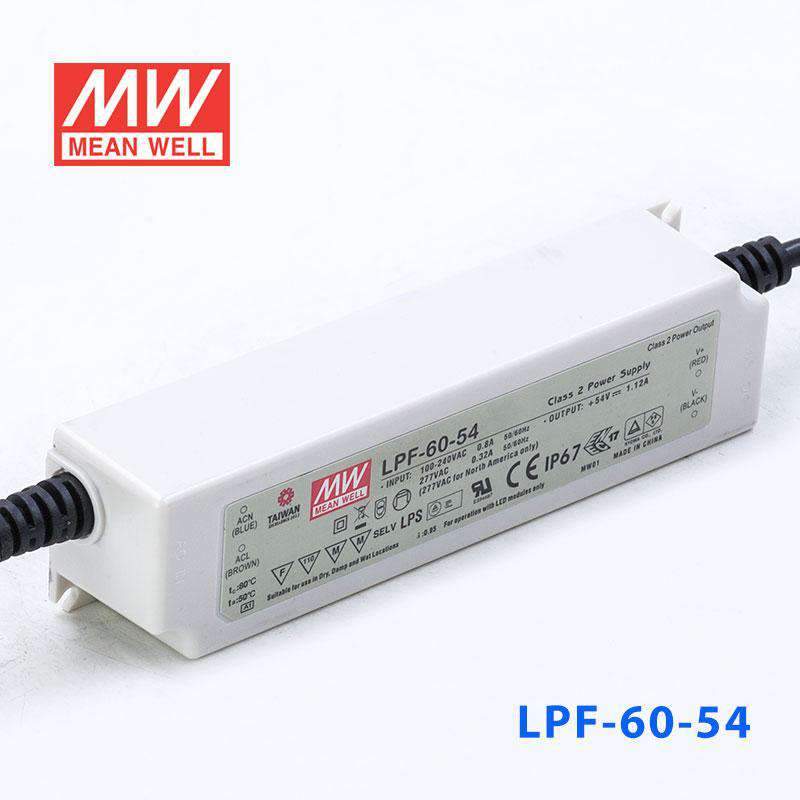

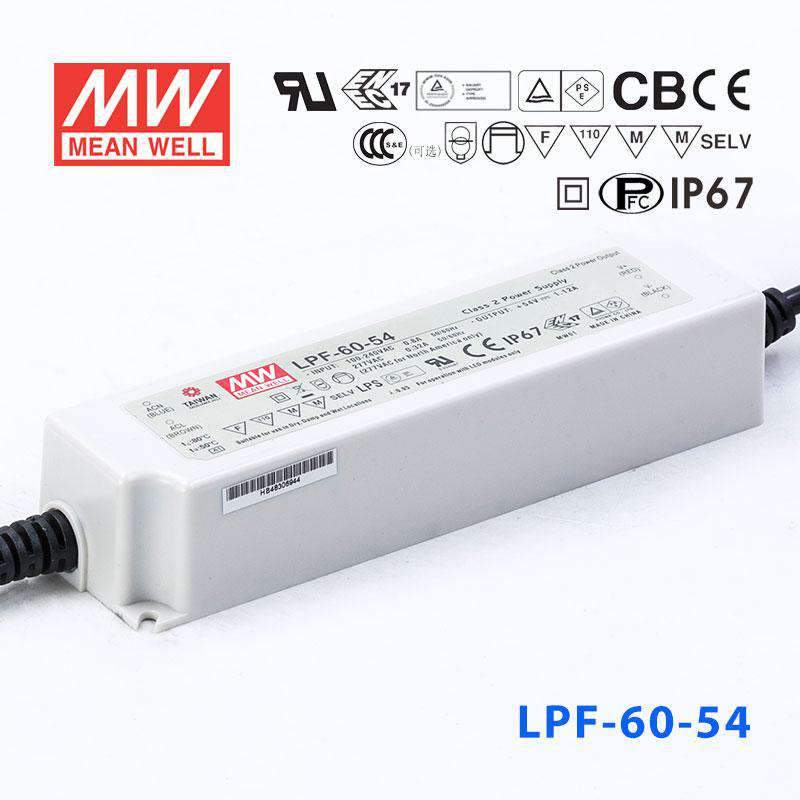

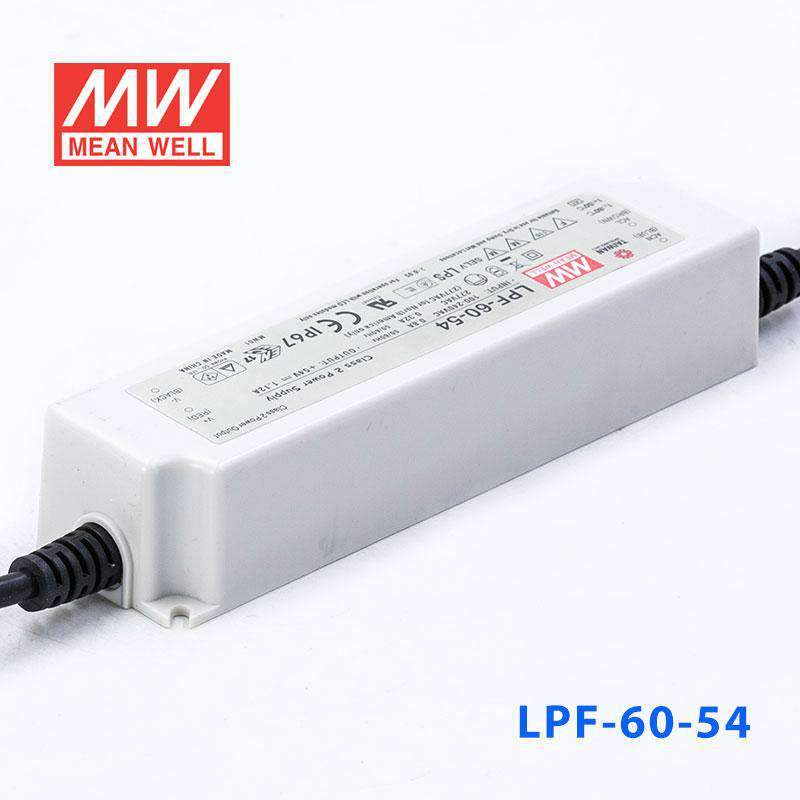

Mean Well LPF-60-54 Power Supply 60W 54V 1.12A

Name: Mean Well LPF-60-54 Power Supply 60W 54V 1.12A
Brand: Mean Well
SKU: LPF-60-54
Price: 31.45 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU LPF-60-54

$31.45 USD ~~$193.70~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The LPF-60 is a 60.48W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 1.12A
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CE, EAC, ENEC, PSE, TÜV, UL
✓ 5 year warranty

Brand

Mean Well
Series

LPF Series
Power Rating

60.48 Watt
Output Voltage

54 Volt
Rated Current

1.12 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

6.4 in
Width

1.69 in
Height

1.26 in
Weight

0.99 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well LPF-60-24 Power Supply 60W 24V 2.5A	60W	24V	2.5A	IP67	$28.70	View
Mean Well LPF-60-12 Power Supply 60W 12V 5A	60W	12V	5A	IP67	$34.16	View
Mean Well LPF-60-48 Power Supply 60W 48V 1.25A	60W	48V	1.25A	IP67	$34.16	View
Mean Well LPF-60-42 Power Supply 60W 42V 1.43A	60.06W	42V	1.43A	IP67	$34.16	View
Mean Well LPF-60-36 Power Supply 60W 36V 1.67A	60.12W	36V	1.67A	IP67	$34.16	View
Mean Well LPF-60-30 Power Supply 60W 30V 2A	60W	30V	2A	IP67	$31.45	View
Mean Well LPF-60-20 Power Supply 60W 20V 3A	60W	20V	3A	IP67	$31.45	View
Mean Well LPF-60-15 Power Supply 60W 15V 4A	60W	15V	4A	IP67	$31.45	View
