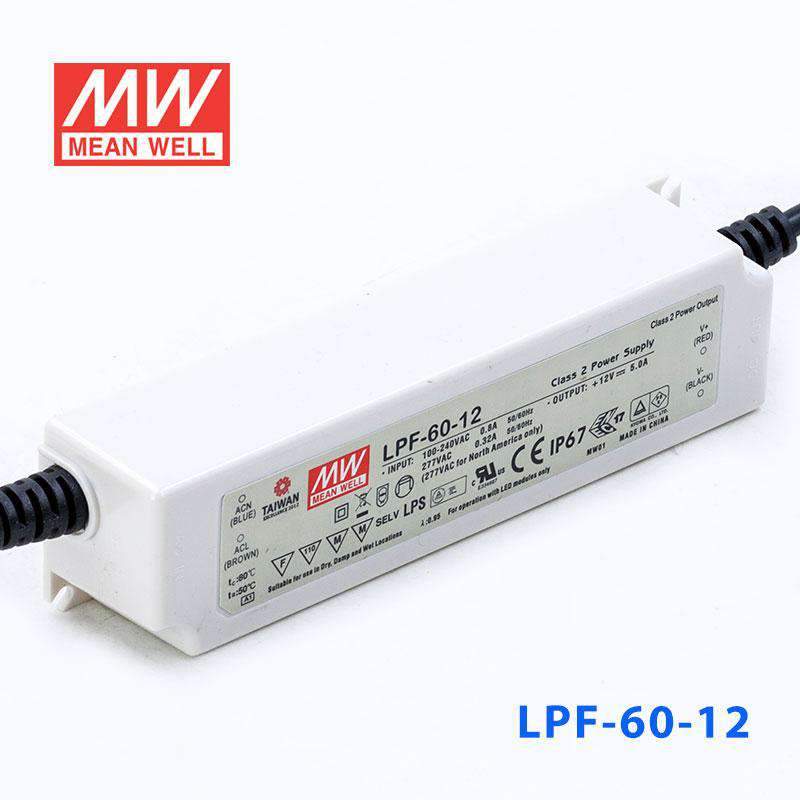

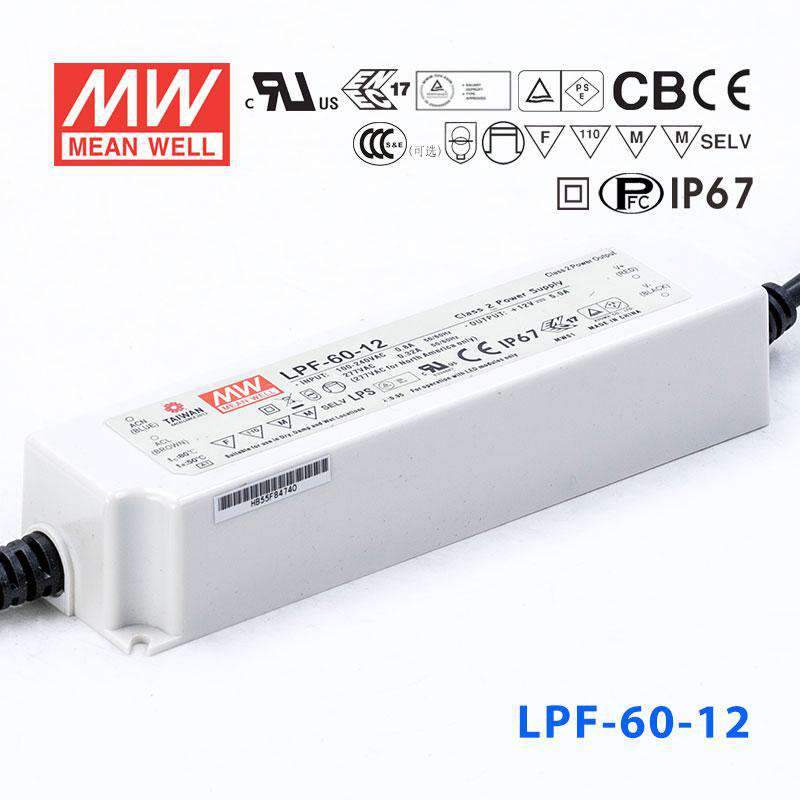

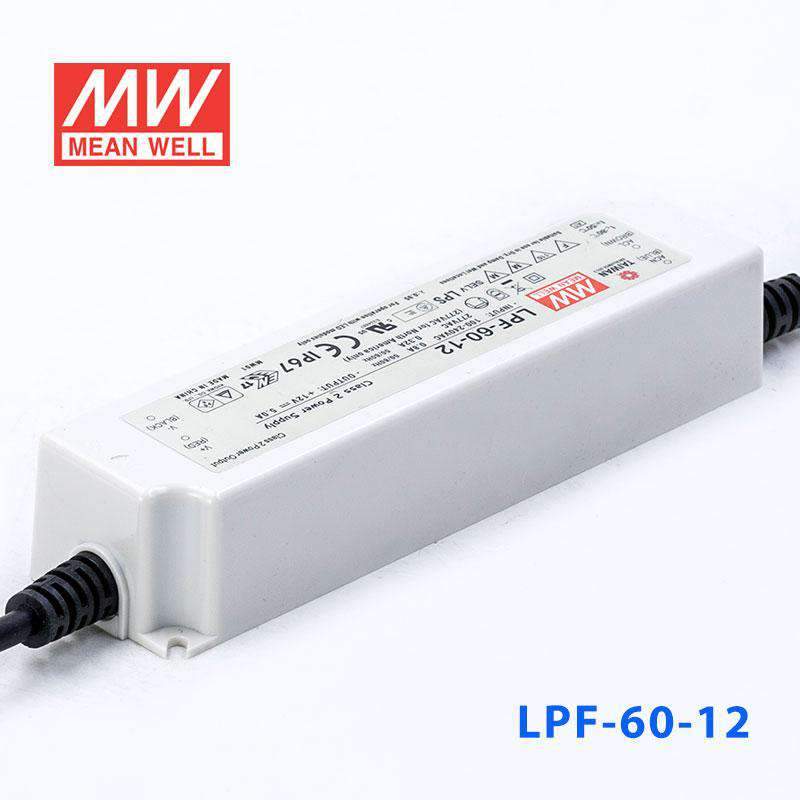

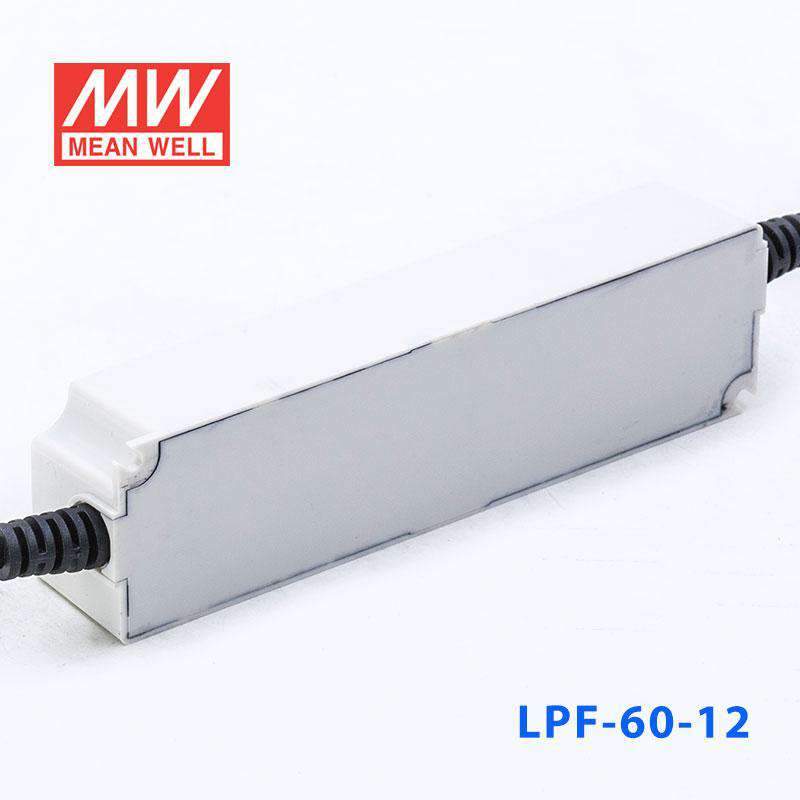

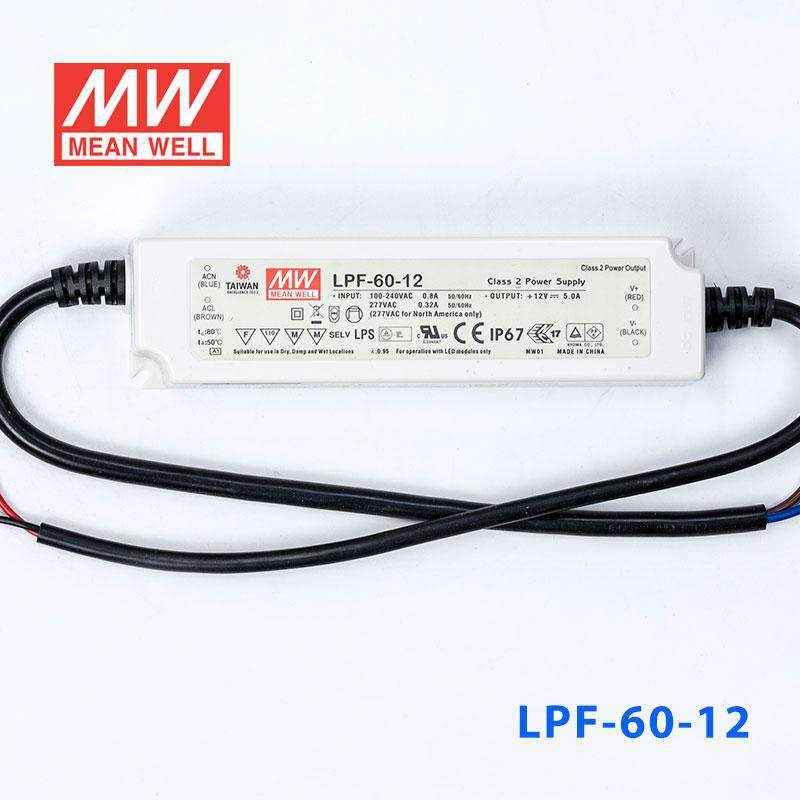

Mean Well LPF-60-12 Power Supply 60W 12V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-12 for 12V LED strip lighting?
Yes, it can power compatible 12V LED lighting loads up to 60W with an output current of 5A. For strip lighting, the total connected load needs to stay within that 60W maximum.
Is the LPF-60-12 suitable for 12V illuminated signage or light boxes?
Yes, if the signage lighting is a compatible 12V load and the total demand is 60W or less. The wide 90-305VAC input also makes it suitable for sites using different AC supply ranges.
Can this driver be used for outdoor 12V landscape or accent lighting?
It can be used for outdoor 12V LED lighting when the load stays within 60W and 5A. The IP67 waterproof rating and -40°C to +80°C operating temperature support wet and exposed environments.
How much 12V LED strip can the LPF-60-12 run?
The maximum output is 60W. To estimate strip length, divide 60W by your strip's rated watts per meter, and check your strip rated power per meter before choosing the final length.
Can the LPF-60-12 be used in wet or outdoor locations?
Yes, its enclosure is rated IP67 waterproof. It is also specified for operation from -40°C to +80°C, which supports use in cold, hot, and wet conditions.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
