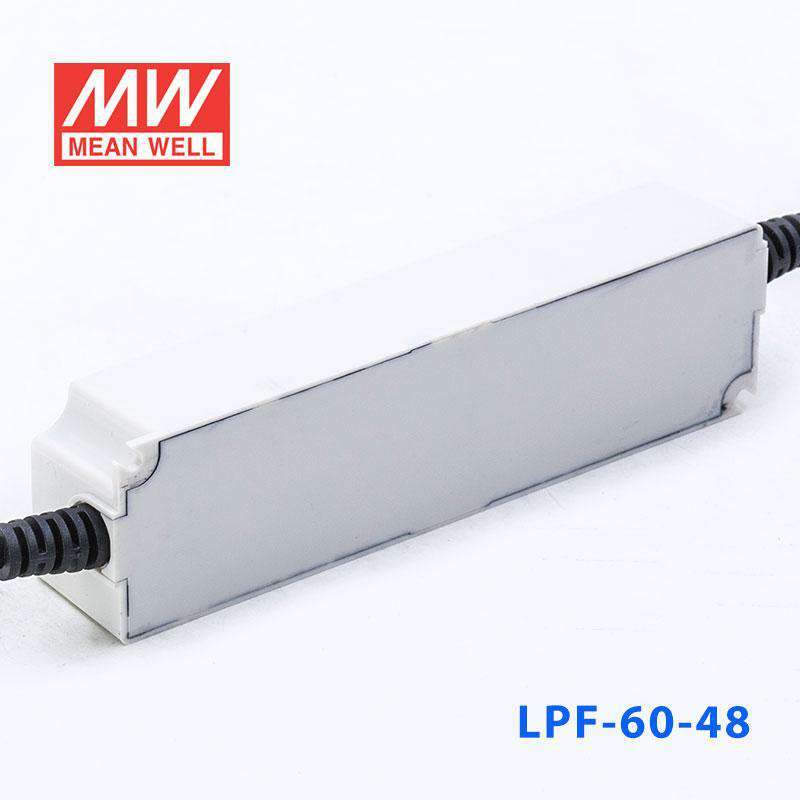

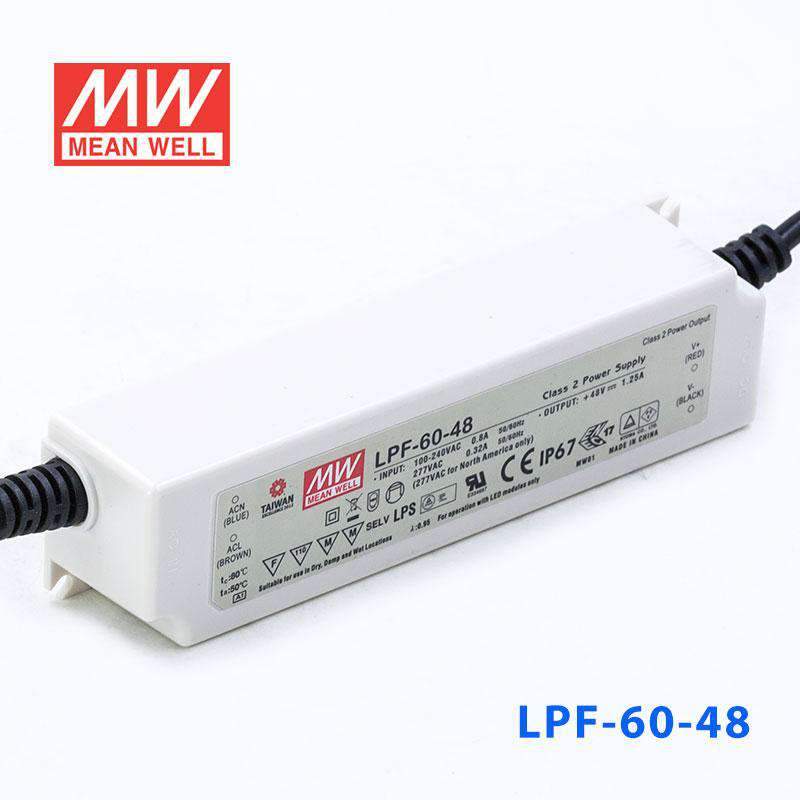

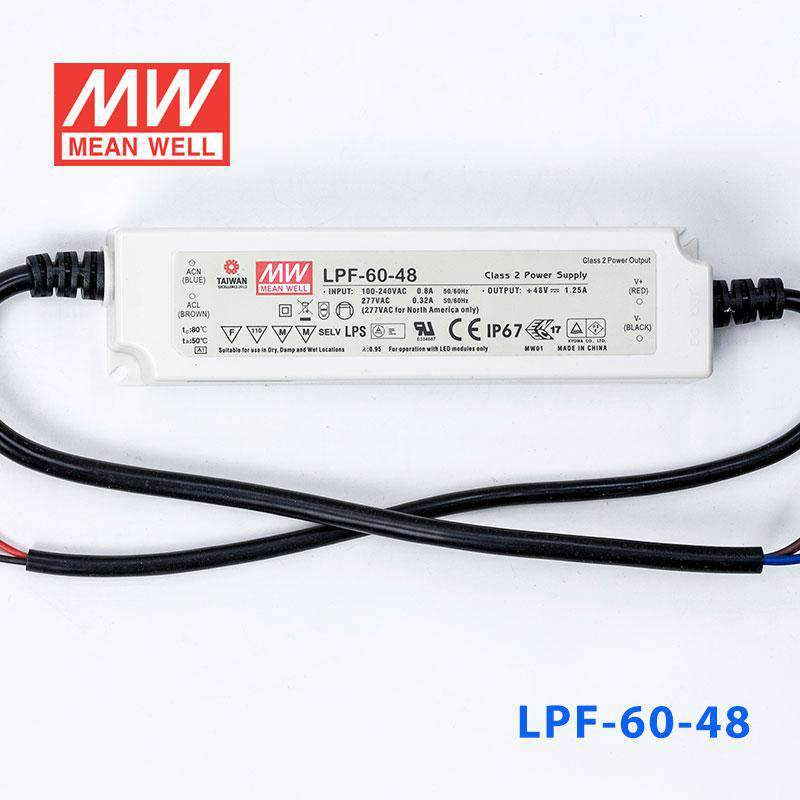

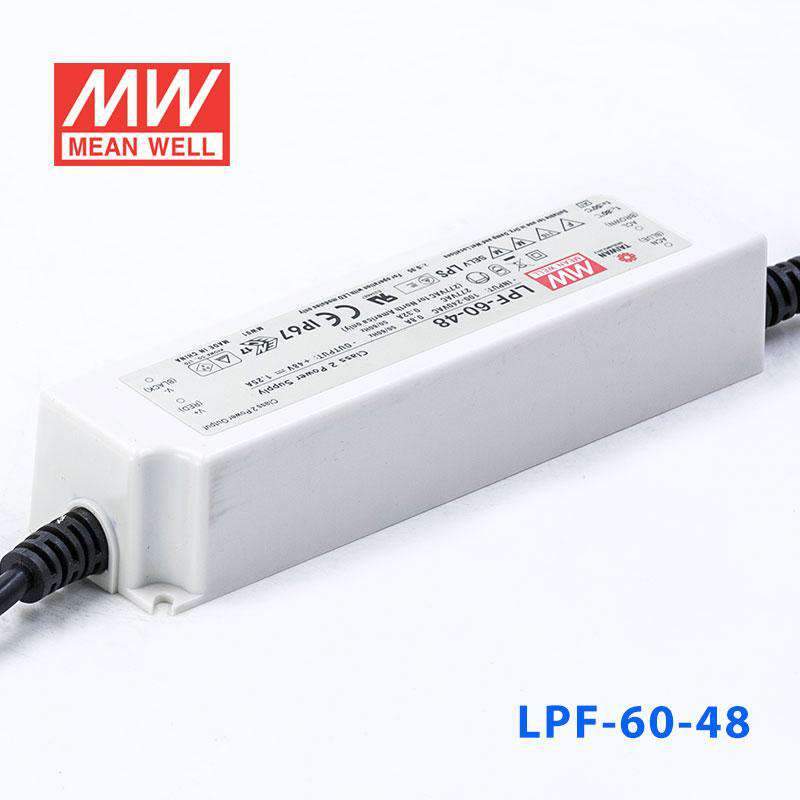

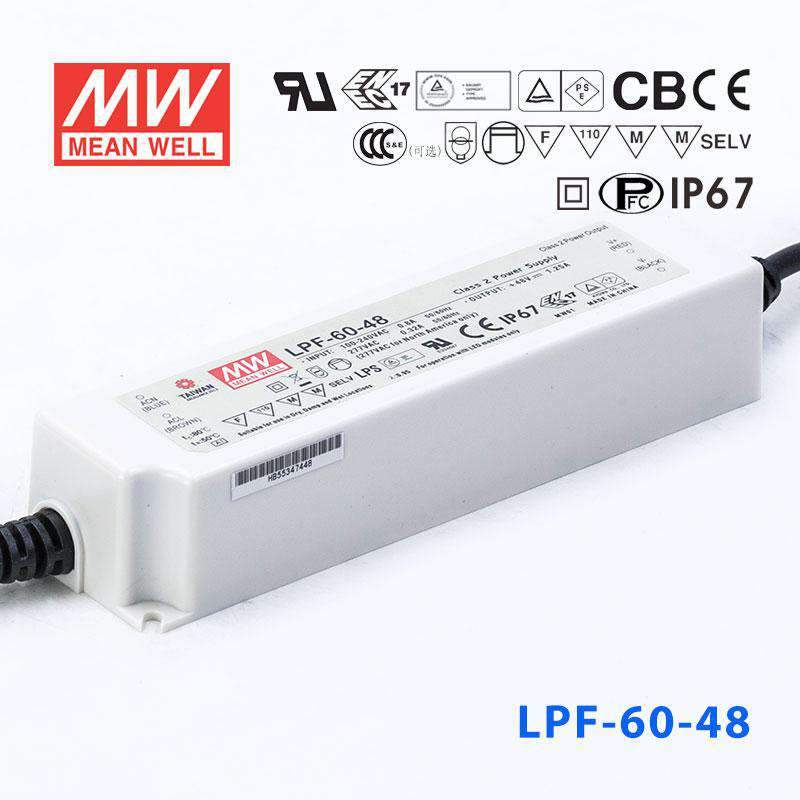

Mean Well LPF-60-48 Power Supply 60W 48V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-48 for a 48V LED strip lighting run?
Yes, if the 48V strip's total load stays within this driver's 60W maximum and 1.25A output. For strip sizing, divide 60W by your strip's rated watts per meter to estimate the maximum length, and check your strip rated power per meter before choosing a run length.
Is this 48V driver suitable for outdoor architectural lighting?
It can be used in outdoor lighting applications where a 48V load matches the driver's output and stays within 60W. The IP67 rating and -40°C to +80°C operating temperature make it appropriate for wet and demanding environments.
Can I use this power supply for 48V illuminated signage?
Yes, for 48V sign lighting loads that fit within 60W and 1.25A. It is intended for LED driver use, and its IP67 housing helps when the signage application is exposed to weather or washdown conditions.
Will the LPF-60-48 work for long-run 48V linear lighting?
It is often chosen for 48V linear lighting because the output is 48V with up to 60W available. Confirm the fixture or strip is compatible with the 48V output and that the total load does not exceed 1.25A or 60W.
Is the LPF-60-48 okay for wet or exposed locations?
Yes, this model is rated IP67, so it is suited to outdoor or wet-location use where water resistance is required. It also operates from -40°C to +80°C, which supports use in very cold and very hot conditions.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
