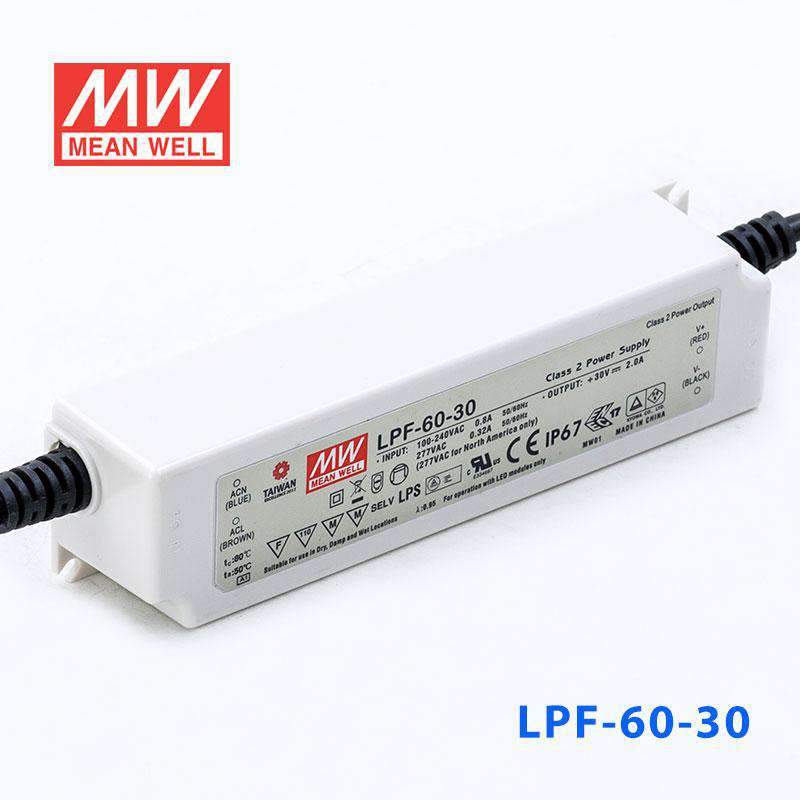

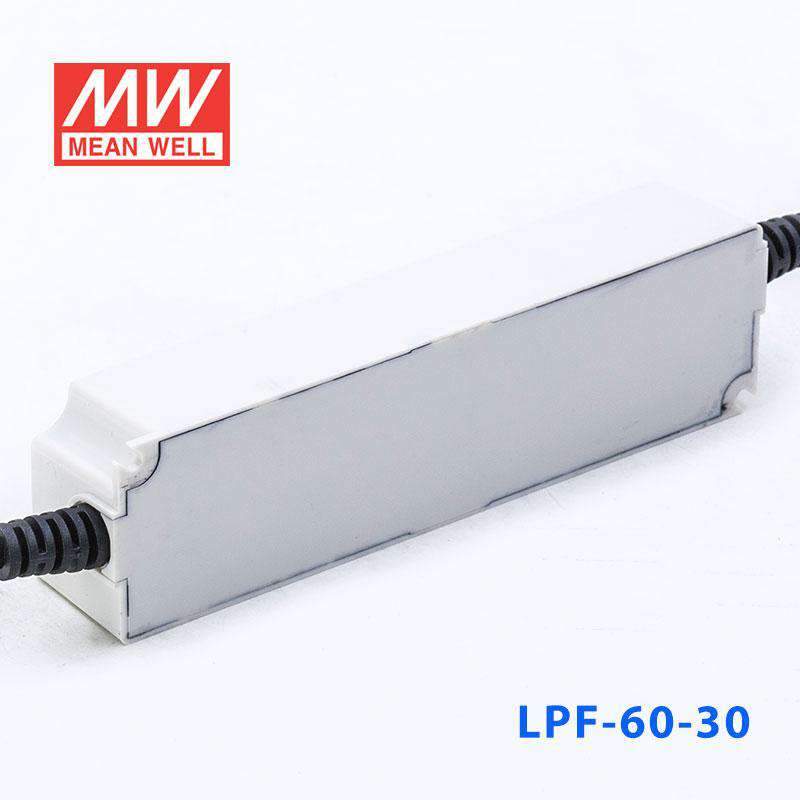

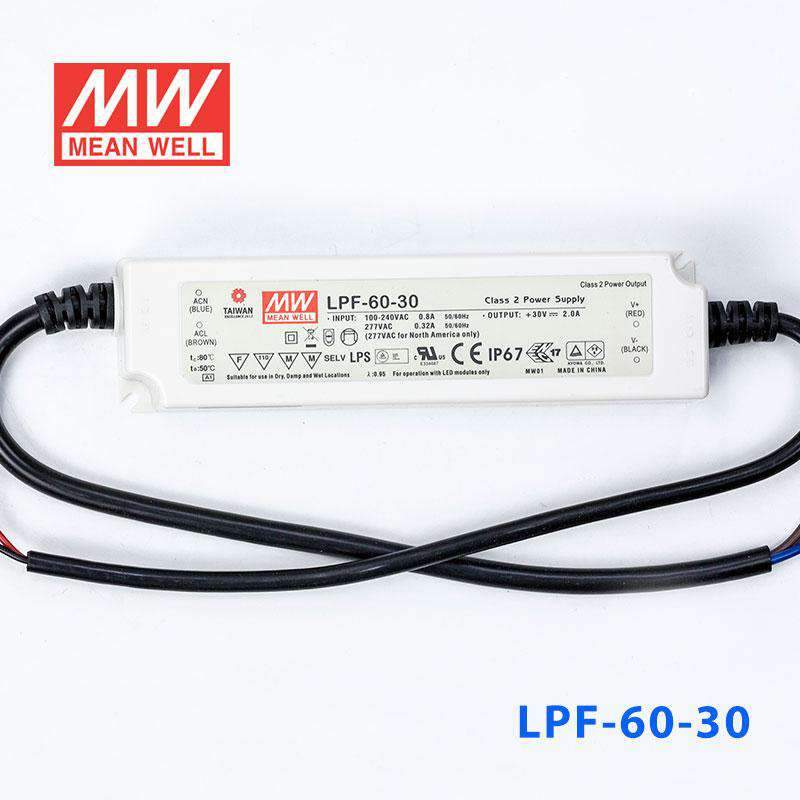

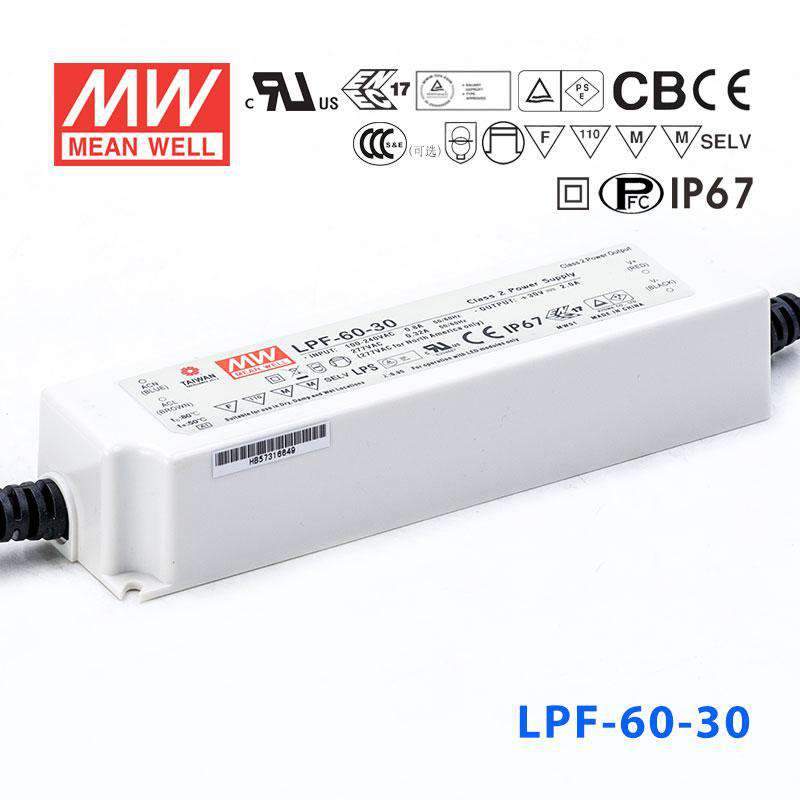

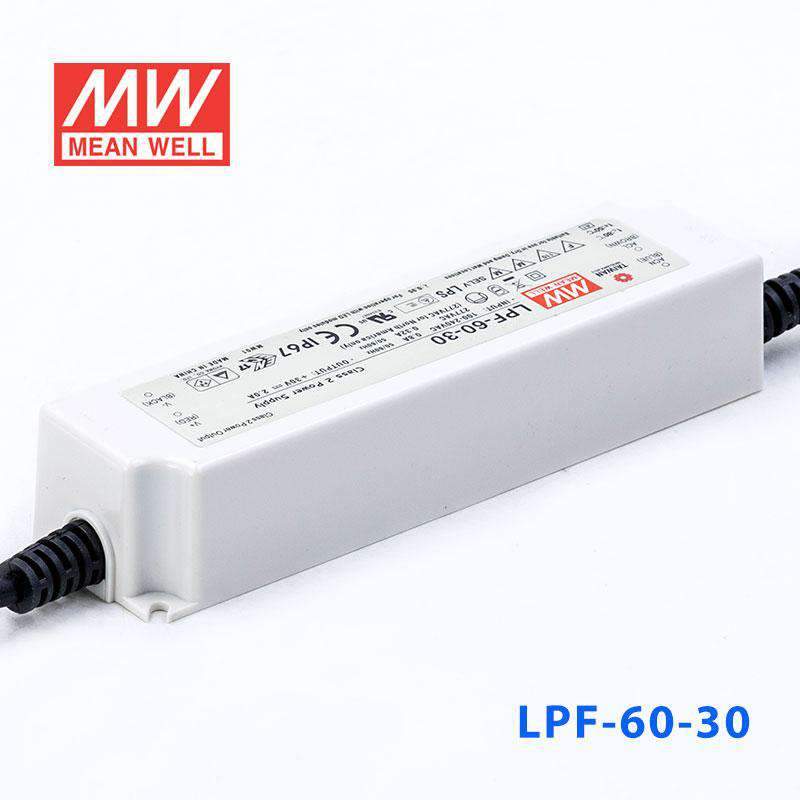

Mean Well LPF-60-30 Power Supply 60W 30V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-30 for a 30V LED lighting application?
Yes, if the 30V fixture, strip, or module is intended for constant current operation and does not exceed 60W or 2A. This model runs in constant current mode with an 18-30V range, so the connected load must match that requirement.
Is this driver suitable for 30V illuminated sign modules in outdoor conditions?
It can be suitable for 30V sign lighting when the load is constant current and stays within 60W and 2A. The IP67 waterproof rating supports outdoor use where the driver may be exposed to weather.
Can the LPF-60-30 be used for exterior accent or facade lighting?
Yes, for exterior accent or facade lighting products that are built for constant current operation within the 18-30V range. The driver is rated for -40°C to +80°C operation, which is relevant for exposed installations with wide temperature swings.
Does this model make sense for a compact sealed lighting assembly?
It can, since the housing is 162.5 x 43.0 x 32.0 mm and uses a fully isolated plastic case. That combination is useful where a sealed driver is needed in a relatively compact lighting assembly.
How much 30V LED strip can the LPF-60-30 support?
Its maximum output is 60W total at 30V, limited to 2A. To estimate strip length, divide 60W by the strip's watts per meter, and check your strip rated power per meter to confirm the final length is within the driver's capacity.
What are the LPF-60-30 alternatives in the same LPF-60 series?
The LPF-60 series is available as 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. Equivalent LPF-60D variants use the same listed output combinations.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
