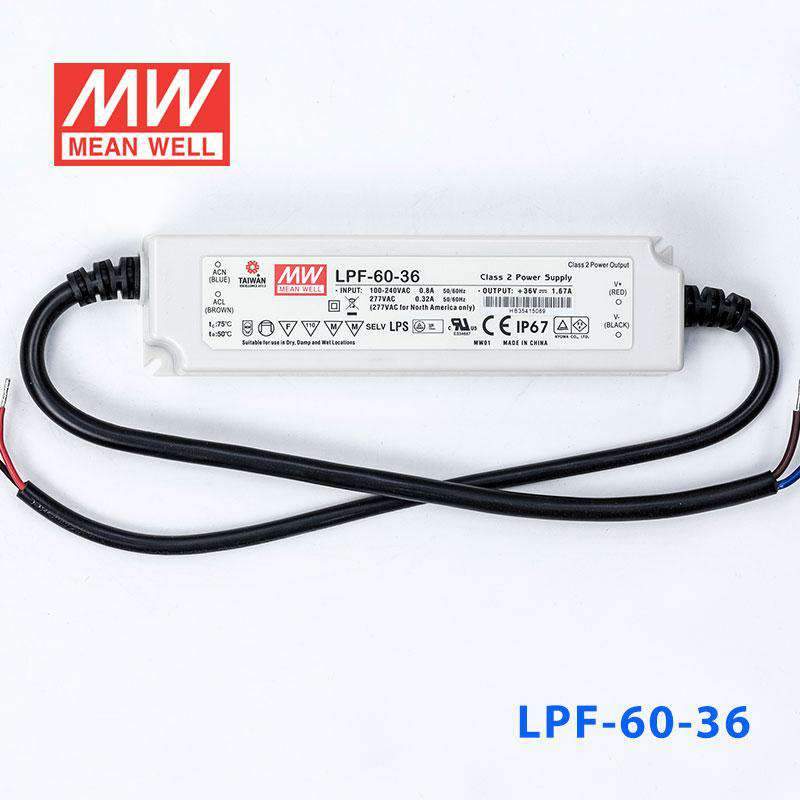

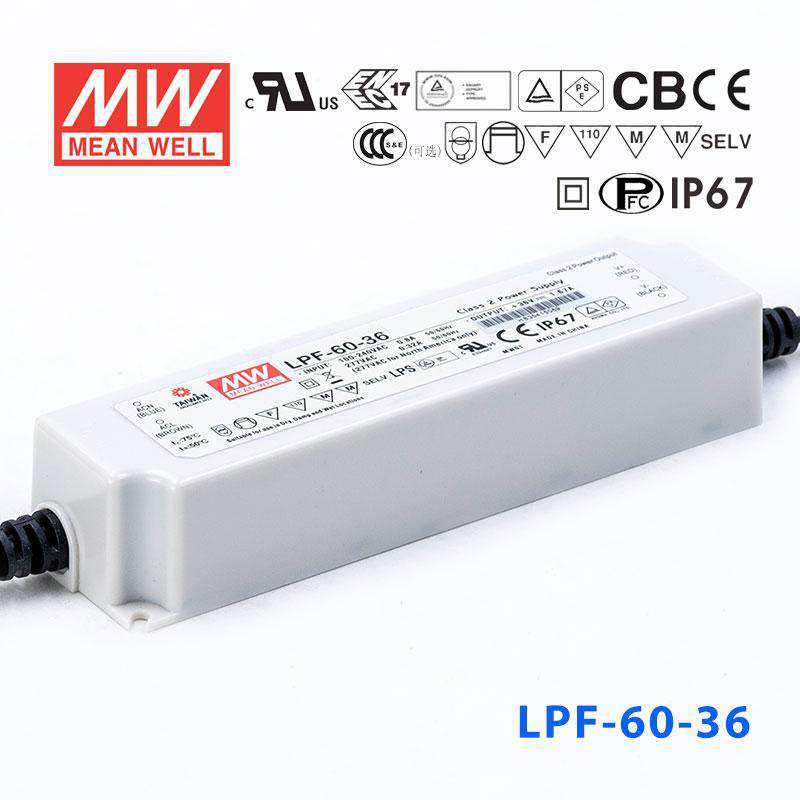

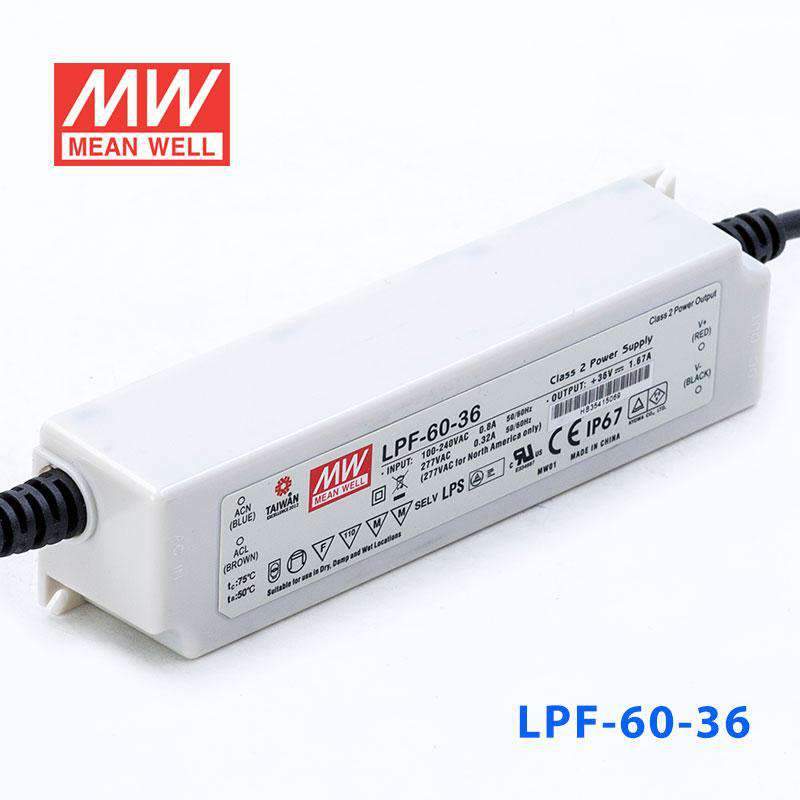

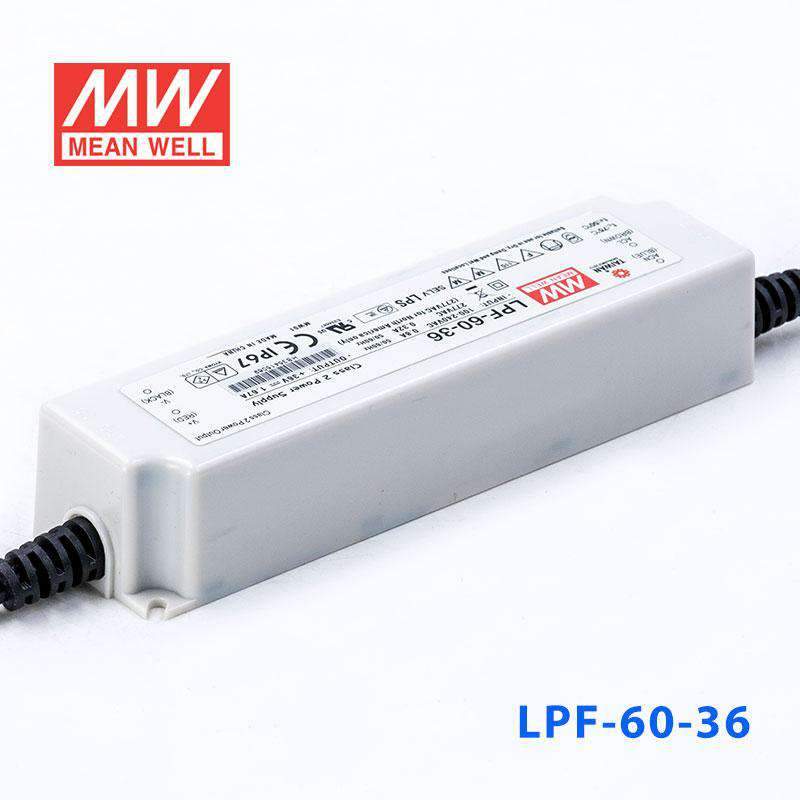

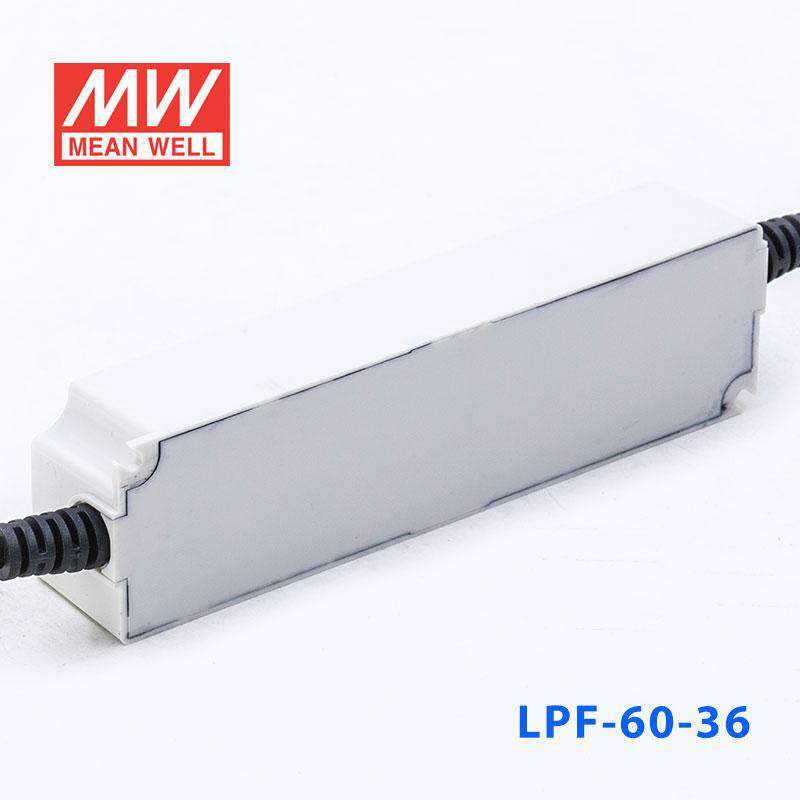

Mean Well LPF-60-36 Power Supply 60W 36V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.12 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-36 for a 36V constant-current LED strip or light engine?
Yes, if the 36V product is specified for constant current operation and the total load stays within 60.12W and 1.67A. This driver's CC range is 21-36V, so the lighting product needs to operate inside that range.
Is the LPF-60-36 suitable for 36V signage lighting in wet locations?
It is suitable when the signage modules are constant current and do not exceed 60.12W or 1.67A. The IP67 waterproof rating supports wet and outdoor environments where the driver needs a sealed housing.
Can this driver be used for outdoor linear lighting or facade details?
Yes, for outdoor linear lighting products that are designed for constant current input between 21V and 36V. The -40°C to +80°C operating temperature range also supports demanding climate conditions.
Would this work in a cold-weather or high-heat lighting project?
Yes, its operating temperature range is -40°C to +80°C. That makes it suitable for projects where the driver may experience very low or very high ambient temperatures within those published limits.
How do I calculate the maximum 36V LED strip length on this driver?
The available output power is 60.12W, with a maximum current of 1.67A. To estimate strip length, use 60.12W / strip watts per meter, and check your strip rated power per meter before final sizing.
How does the LPF-60-36 differ from the other 60W LPF outputs?
The LPF-60 group includes 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. D-series LPF-60D models follow the same voltage and current pattern.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
