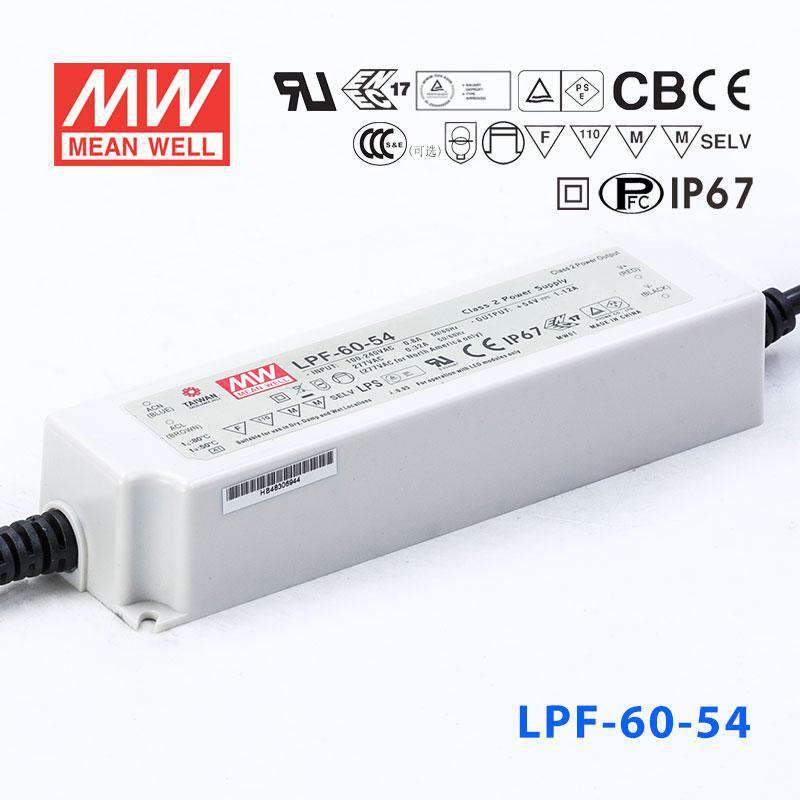

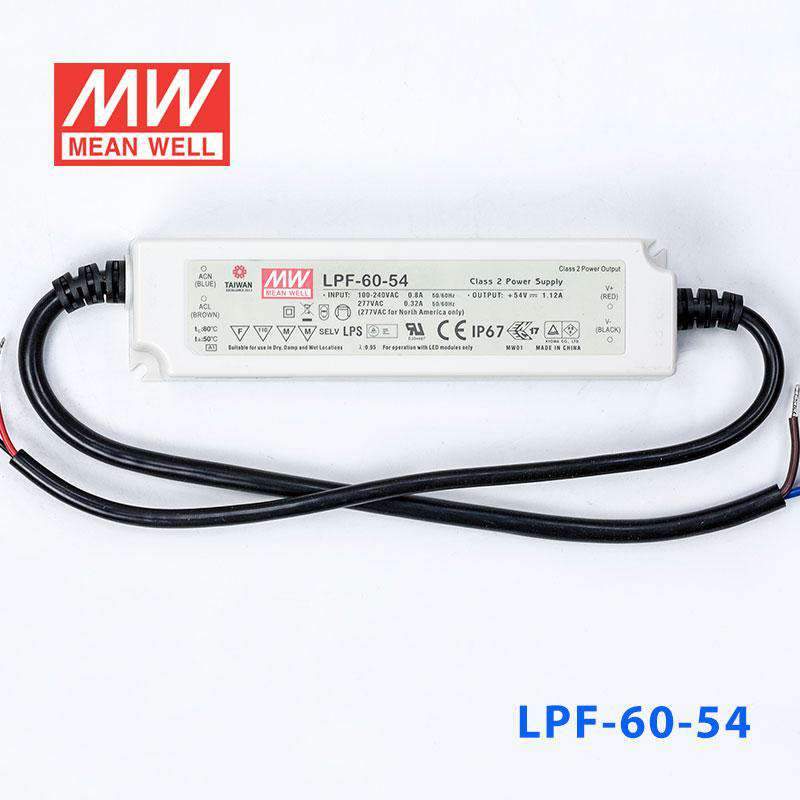

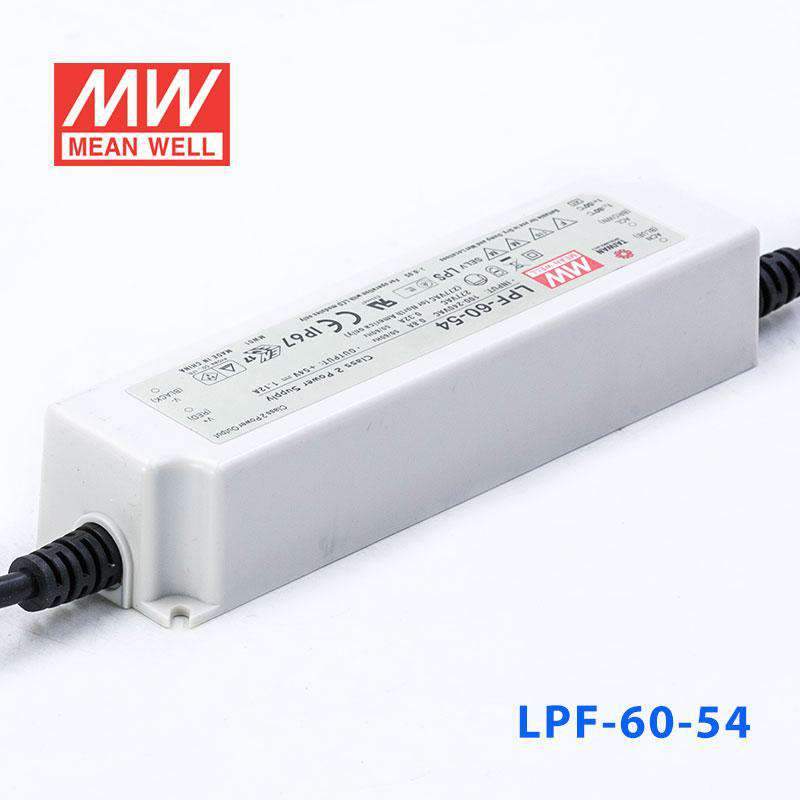

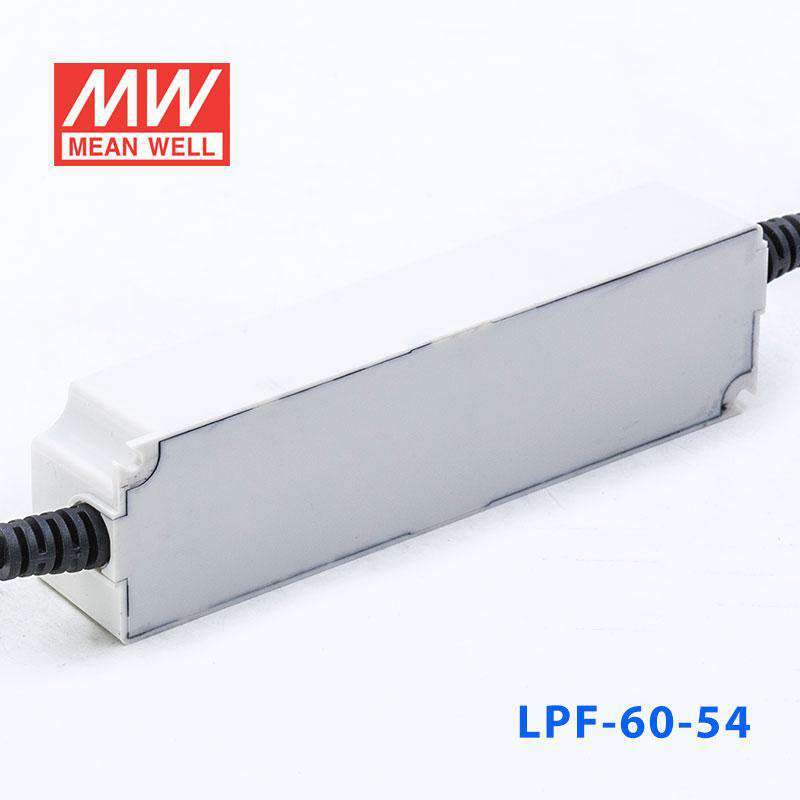

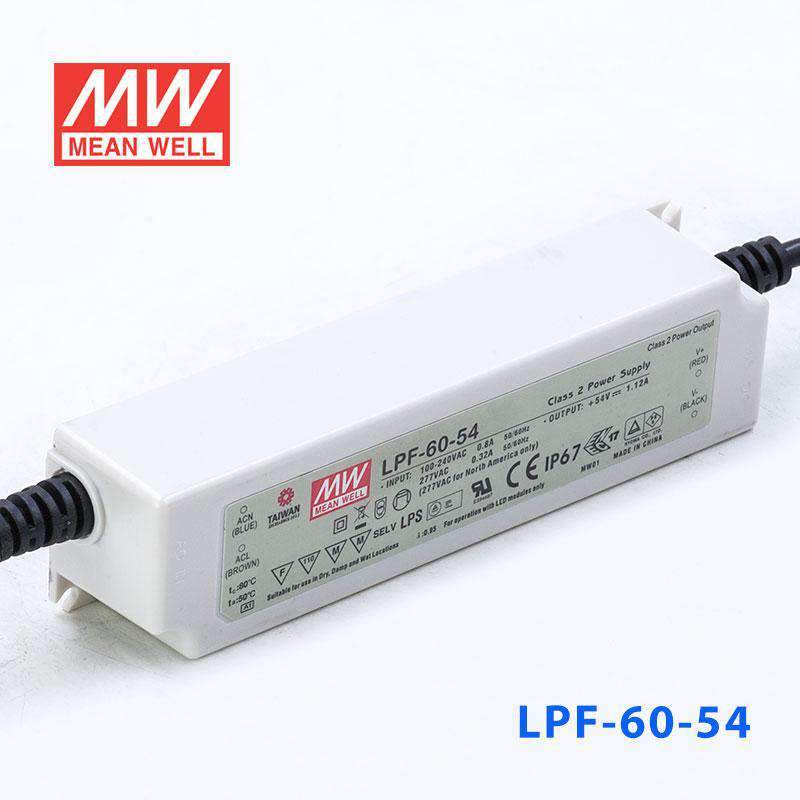

Mean Well LPF-60-54 Power Supply 60W 54V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-54 with a 54V LED strip or linear lighting product?
Yes, if the load is designed for 54V operation and stays within this model's 60.48W maximum and 1.12A output. To estimate strip length, divide 60.48W by the strip's rated watts per meter, and check your strip rated power per meter before sizing the run.
Is this a good choice for 54V signage lighting?
It can be used for 54V sign lighting loads that match the driver's output and remain within 60.48W. The IP67 waterproof rating also makes it suitable for signage exposed to weather.
Can the LPF-60-54 be used for outdoor facade or accent lighting?
Yes, for 54V LED lighting products that fit within the driver's 60.48W and 1.12A limits. Its IP67 rating and -40°C to +80°C operating range support outdoor conditions.
Would this driver suit a 54V LED lighting fixture that needs steady output?
This model provides 54V output with 1.12A current and up to 60.48W total power. It is suitable when the fixture's electrical requirements fall within the 32-54V constant current range and do not exceed the rated output.
Is the LPF-60-54 rated for wet environments?
Yes, it carries an IP67 waterproof rating, so it is appropriate for outdoor and wet-location use. The fully isolated plastic case also supports use in exposed environments where a sealed housing is preferred.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
