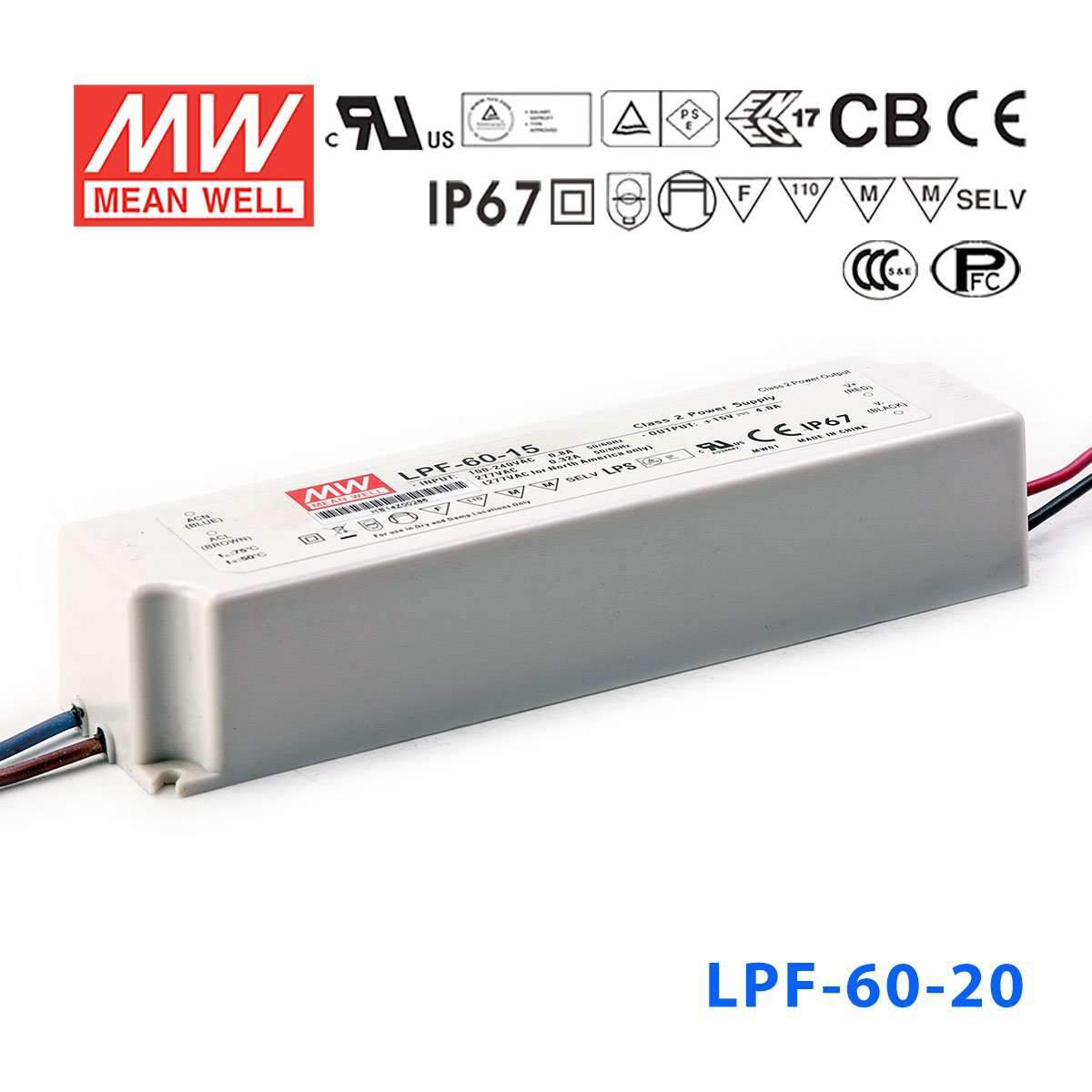

Mean Well LPF-60-20 Power Supply 60W 20V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage20 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-20 for a 20V LED strip or linear lighting run?
Yes, if the 20V strip or linear light is designed for constant current operation and its load stays within the driver's 60W, 3A output. This model operates in constant current mode with a 12-20V CC range, so the connected lighting product needs to match that behavior rather than require constant voltage.
Is this driver suitable for 20V illuminated signage or channel-style lighting modules?
It can be suitable for 20V signage lighting if the modules are constant current and the total load does not exceed 60W or 3A. The IP67 housing also supports signage projects where the driver may be exposed to rain or washdown conditions.
Can I use this power supply for a wet-location architectural lighting project?
Yes, the LPF-60-20 is rated IP67, so it is built for wet and outdoor environments. Its operating temperature range is -40°C to +80°C, which supports use in both cold and high-heat locations within that range.
Will the LPF-60-20 work for compact outdoor accent lighting where space is limited?
It is often used where a sealed driver is needed and the enclosure space is modest, since the body is 162.5 x 43.0 x 32.0 mm. The fully isolated plastic case and Class II design without FG are also relevant where a compact enclosed driver is preferred.
How much 20V LED strip can this driver support?
The maximum output is 60W at 20V and 3A. To estimate strip length, divide 60W by the strip's watts per meter; for example, the formula is 60W / strip W per meter, but you should check your strip rated power per meter and confirm it is a constant current 20V product.
What is the difference between the LPF-60-20 and other LPF-60 models?
Within the LPF-60 non-dimming range, the outputs are 12V 5A 60W, 15V 4A 60W, 20V 3A 60W, 24V 2.5A 60W, 30V 2A 60W, 36V 1.67A 60.12W, 42V 1.43A 60.06W, 48V 1.25A 60W, and 54V 1.12A 60.48W. Matching LPF-60D versions keep the same nominal output specs but add the D-series variant.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $31.45 | View |
