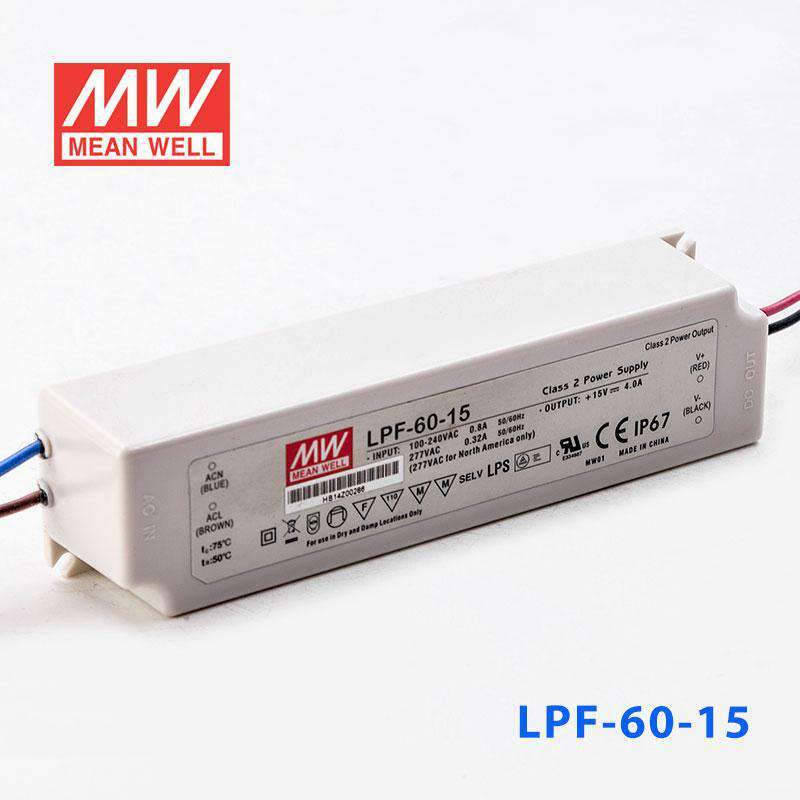

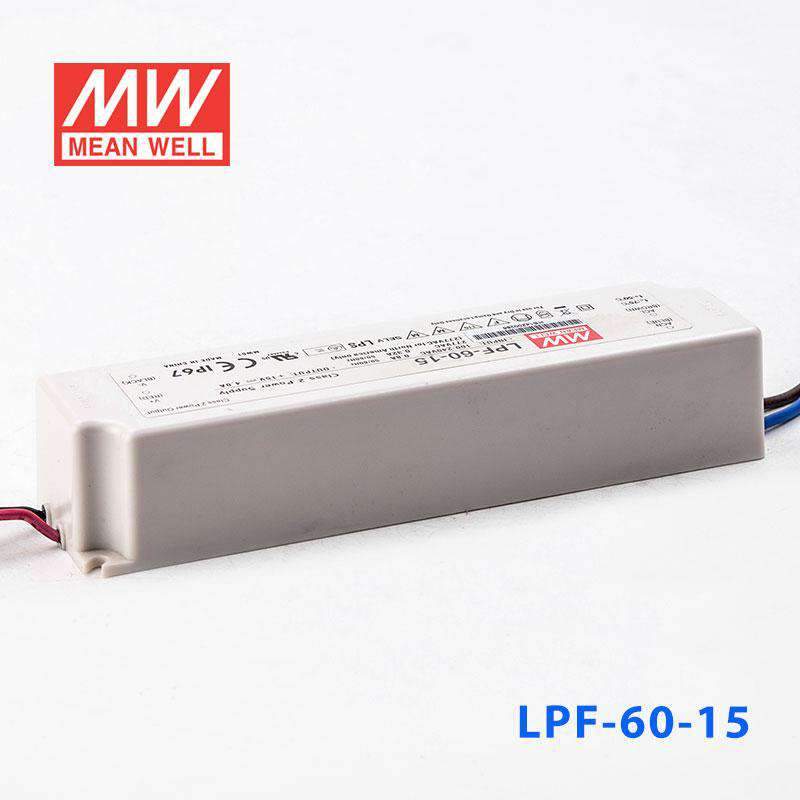

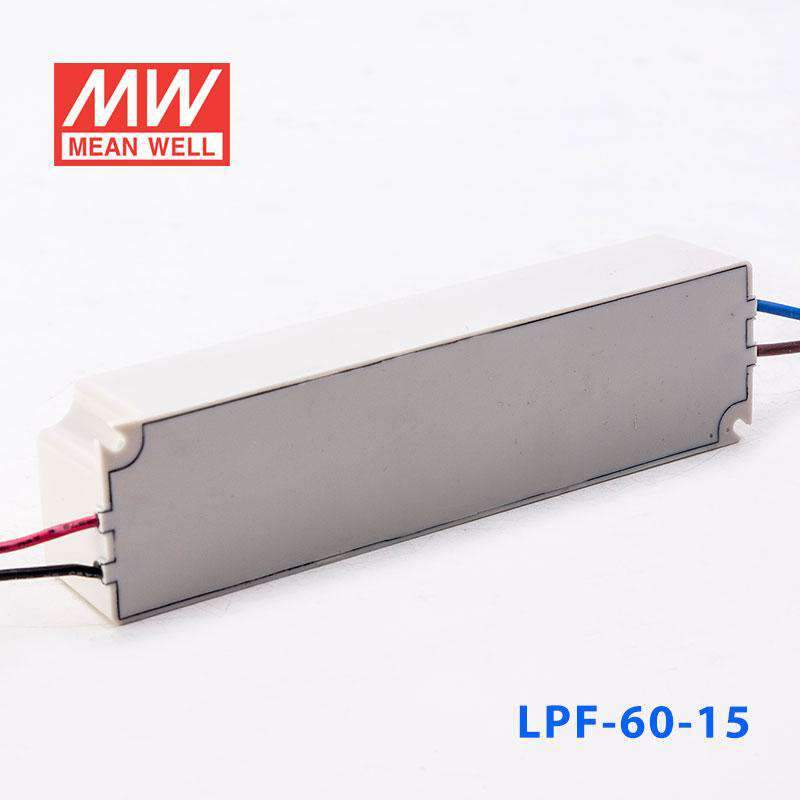

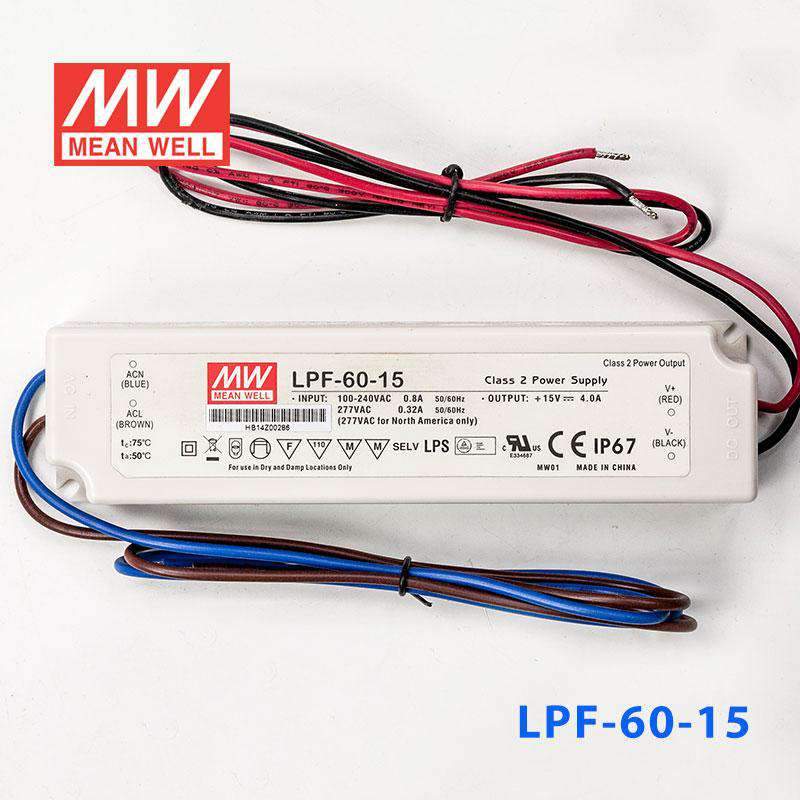

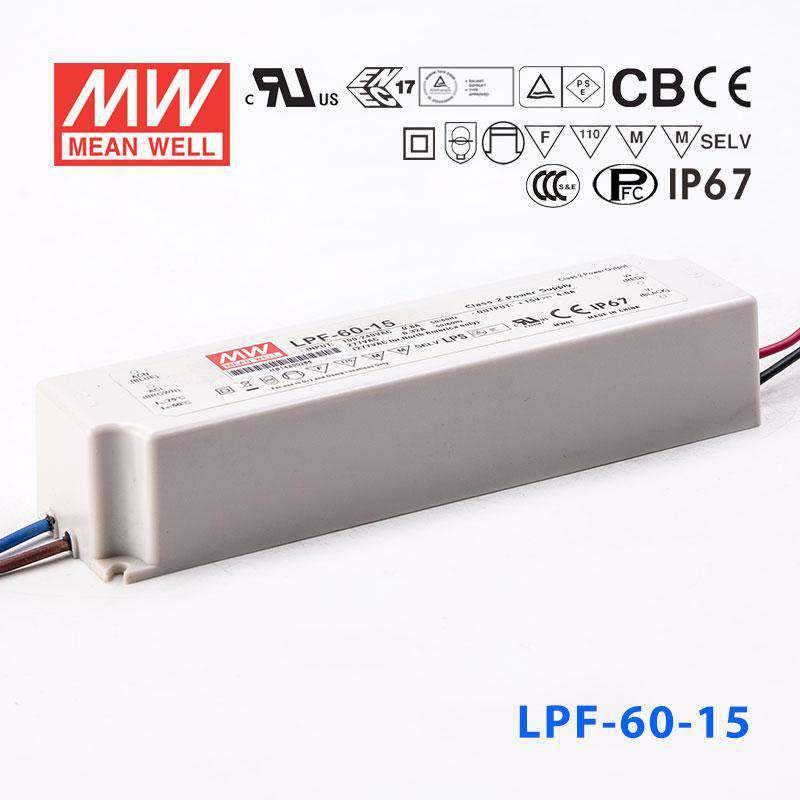

Mean Well LPF-60-15 Power Supply 60W 15V
Description
Description
The LPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.4 in
-
Width1.69 in
-
Height1.26 in
-
Weight0.99 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-60-15 for 15V LED strip or linear lighting?
Yes, for compatible 15V lighting loads up to 60W with an output current of 4A. The load should remain within the 9-15V range listed for this model.
Is this a good fit for 15V illuminated signs or display lighting?
It can be used for 15V sign or display lighting if the connected load is compatible and stays at or below 60W. The driver accepts 90-305VAC input, which is useful across a wide AC input range.
Can the LPF-60-15 be used for outdoor 15V lighting projects?
Yes, when the lighting load is a compatible 15V product and does not exceed 60W or 4A. The IP67 waterproof rating and -40°C to +80°C operating temperature make it suitable for outdoor conditions.
How do I calculate the maximum LED strip length for the LPF-60-15?
This model can supply up to 60W. Divide 60W by the strip's rated watts per meter to estimate the maximum length, and check your strip rated power per meter before finalizing the load.
What is the difference between the LPF-60-15 and other LPF-60 models?
In the LPF-60 series, the outputs are 12V 60W 5A, 15V 60W 4A, 20V 60W 3A, 24V 60W 2.5A, 30V 60W 2A, 36V 60.12W 1.67A, 42V 60.06W 1.43A, 48V 60W 1.25A, and 54V 60.48W 1.12A. The LPF-60-15 is the 15V, 4A version of that group.
Other LPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $32.31 | View |
| Mean Well LPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $32.31 | View |
| Mean Well LPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $31.45 | View |
| Mean Well LPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $34.16 | View |
| Mean Well LPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $34.16 | View |
| Mean Well LPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $34.16 | View |
| Mean Well LPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $31.45 | View |
| Mean Well LPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $31.45 | View |
