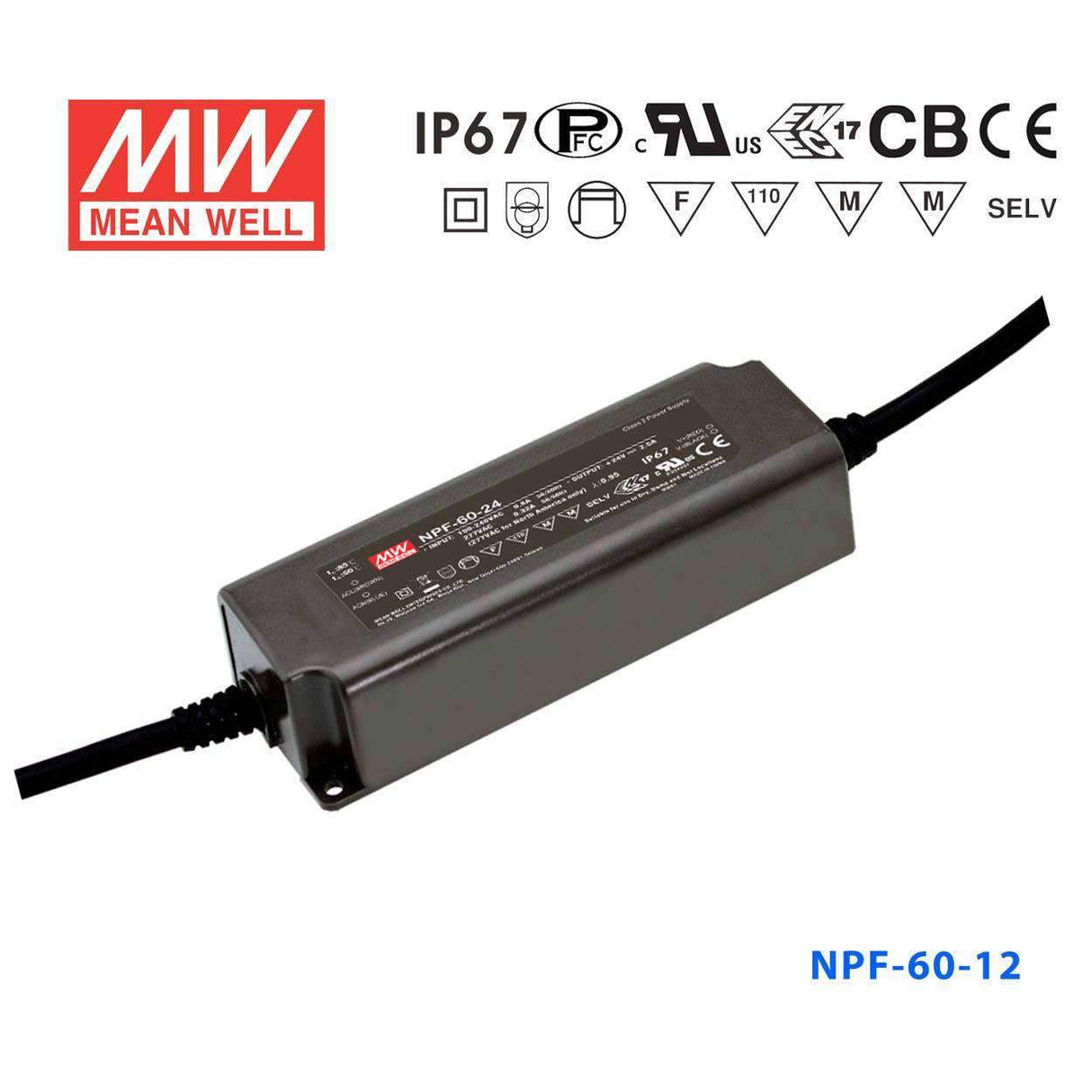

Mean Well NPF-60-12 Power Supply 60W 12V
The NPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can the NPF-60-12 power outdoor LED signage exposed to rain?
Yes. The NPF-60-12 carries an IP67 rating, meaning it is fully protected against dust and can withstand temporary immersion in water. Its operating temperature range of -40°C to +85°C also makes it suitable for outdoor environments with wide seasonal temperature swings.
Is 60W and 12V enough to drive a small commercial LED display or cabinet lighting?
The NPF-60-12 delivers 60W at 12V with a maximum output current of 5A, which is adequate for compact 12V LED display panels, retail cabinet lighting, or decorative accent arrays where total load stays within 60W. Its constant-current operation mode helps maintain consistent light output even as LED forward voltages vary slightly.
How does the NPF-60-12 differ from the NPF-90-12 and NPF-120-12 at the same 12V output?
All three run at 12V but differ in power capacity: the NPF-60-12 provides 60W at 5A, the NPF-90-12 provides 90W at 7.5A, and the NPF-120-12 provides 120W at 10A. Choose the NPF-60-12 for smaller loads up to 60W, and step up to the 90W or 120W models when the LED system draws more current.
Does the NPF-60-12 require an earth ground connection?
No. The NPF-60-12 uses a Class II design without a functional ground (FG), so no protective earth connection is required. Its fully isolated plastic case provides the required double insulation.
What input voltage range does the NPF-60-12 accept?
The NPF-60-12 accepts 90–305VAC, covering both standard North American 120VAC and European or industrial 230–277VAC supplies without any manual voltage switching.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $30.47 | View |
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
