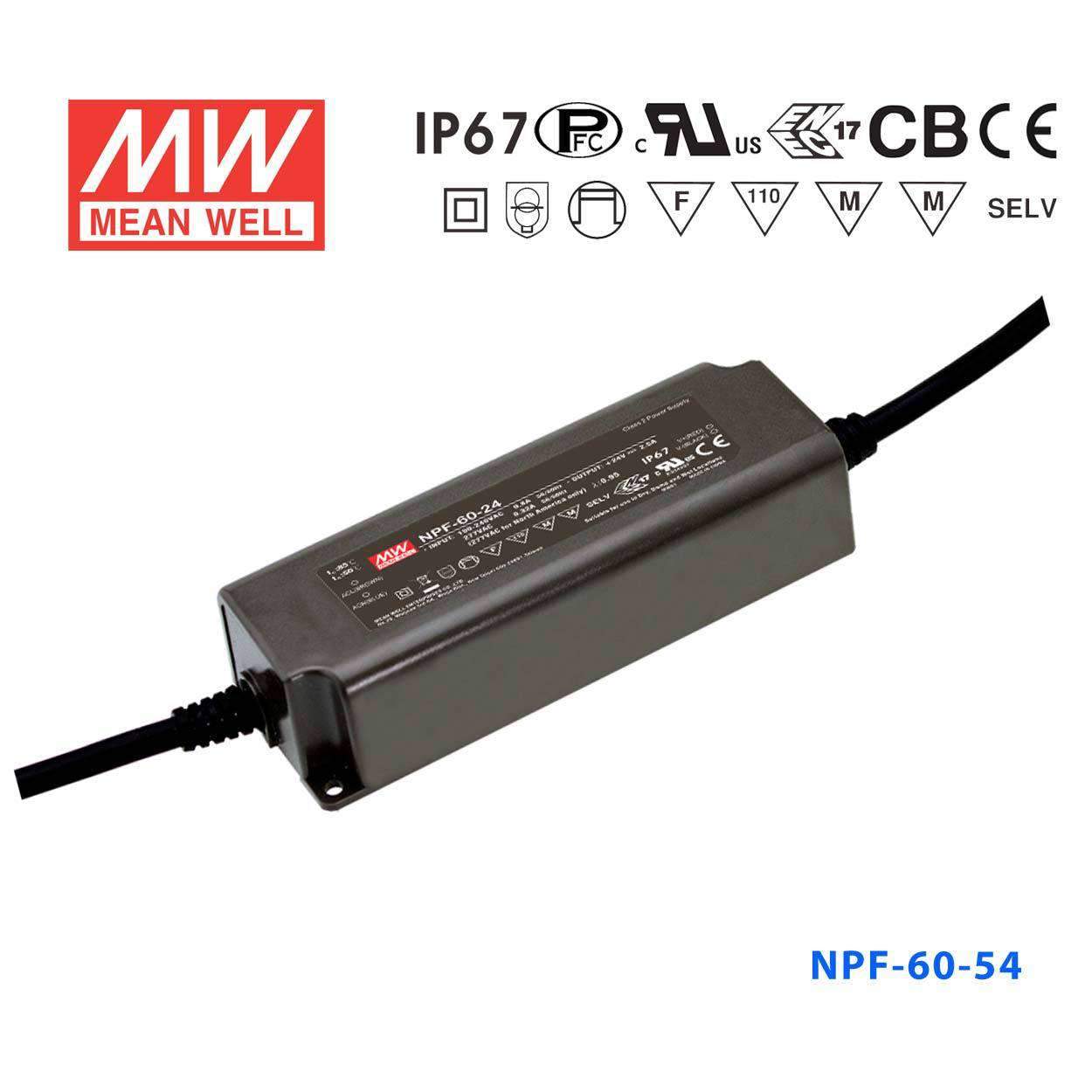

Mean Well NPF-60-54 Power Supply 60W 54V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the NPF-60-54 rated for outdoor use in wet locations?
Yes. The NPF-60-54 carries an IP67 rating, protecting it against dust and temporary water immersion. Its -40°C to +85°C operating temperature supports outdoor installations in both hot and cold climates without an additional protective enclosure.
What types of 54V LED fixtures can the NPF-60-54 drive?
The NPF-60-54 delivers 60.48W at 54V with a constant output current of 1.12A and a CC voltage range of 32–54V. It is suited for high-voltage LED strings used in outdoor bollard lighting, architectural wash lighting, or industrial bay fixtures that operate in the 32–54V forward voltage window.
How does the NPF-60-54 compare to the NPF-60-48 and NPF-60-42 within the 60W family?
The three high-voltage 60W variants are: NPF-60-42 at 60.06W and 1.43A (CC range 25–42V), NPF-60-48 at 60W and 1.25A (CC range 28–48V), and NPF-60-54 at 60.48W and 1.12A (CC range 32–54V). Each targets a different LED string voltage; choose based on the forward voltage of your LED load.
Is there a dimmable version of the NPF-60-54?
Yes. The NPF-60D-54 shares identical electrical specs (60.48W, 54V, 1.12A, IP67) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control signals.
What certifications does the NPF-60-54 hold?
The NPF-60-54 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering North American, European, and Asian compliance requirements. It includes a 5-year manufacturer warranty.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
