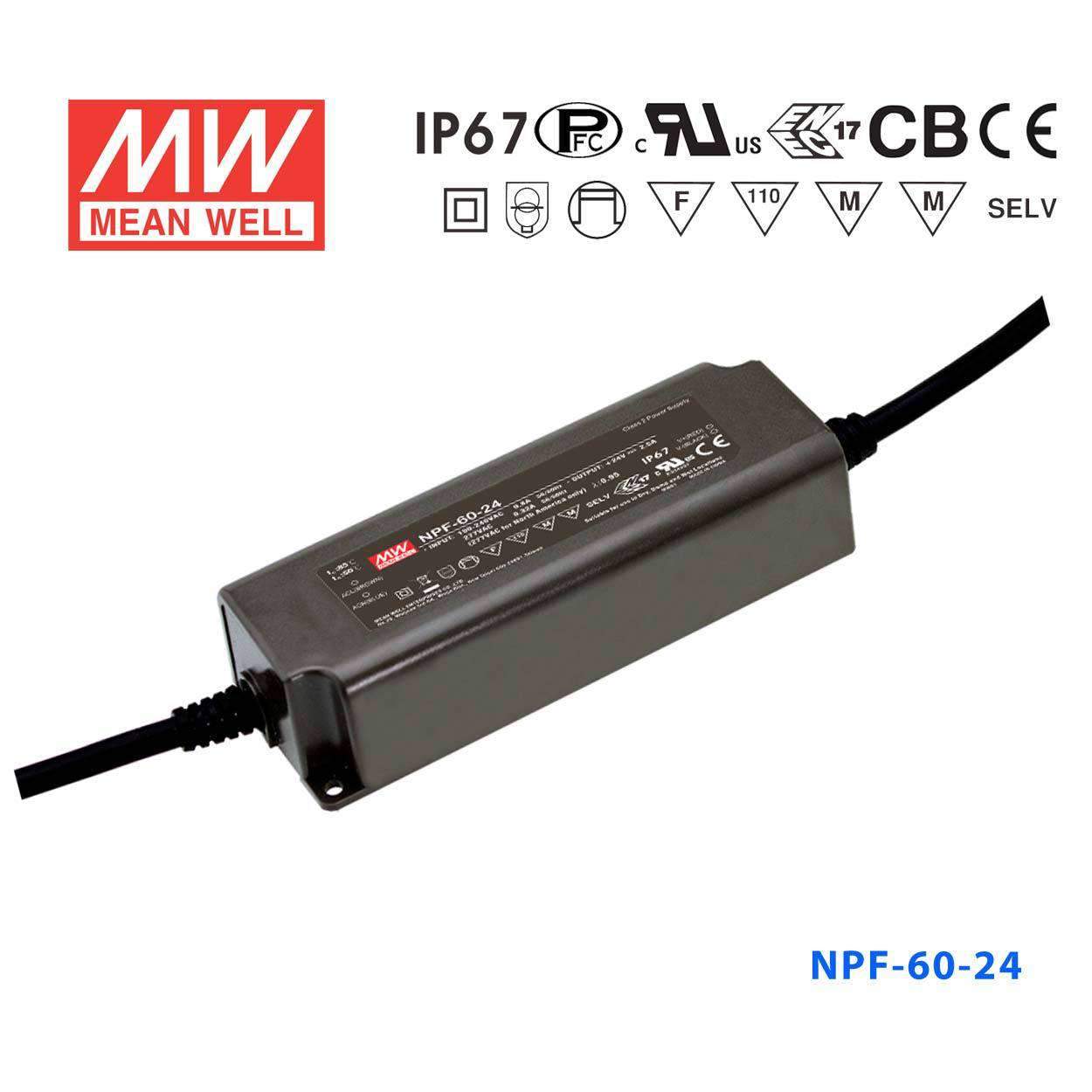

Mean Well NPF-60-24 Power Supply 60W 24V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NPF-60-24 be mounted inside a sealed outdoor junction box?
Yes, but the NPF-60-24 is already rated IP67, so it is independently protected against dust and temporary water immersion. It operates across -40°C to +85°C, covering most outdoor climatic conditions without needing an additional sealed enclosure.
Can I use the NPF-60-24 to drive 24V LED strip lighting in a commercial retail display?
The NPF-60-24 outputs 60W at 24V with a constant current of 2.5A, which supports 24V LED strip systems where total load stays within 60W. Its IP67 rating also makes it usable in display cases that may be exposed to occasional cleaning or moisture.
What is the difference between the NPF-60-24 and the NPF-60D-24?
The NPF-60-24 and NPF-60D-24 share identical output specs (60W, 24V, 2.5A) and IP67 rating, but the NPF-60D-24 adds built-in 3-in-1 dimming capability. Choose the NPF-60-24 for fixed-output installations and the NPF-60D-24 when dimming via PWM, 0–10V, or resistance control is required.
What certifications make the NPF-60-24 suitable for European projects?
The NPF-60-24 holds CE, CB, ENEC, and EAC certifications, satisfying European Union directive requirements and enabling sale and deployment across EU member states and EEA markets.
How many 24V LED modules can the NPF-60-24 support simultaneously?
The NPF-60-24 provides 60W total at 2.5A output current. The number of modules depends on each module’s wattage; for example, up to six 10W modules or three 20W modules can be driven, as long as the combined load does not exceed 60W and each module’s forward voltage falls within the CC range of 14–24V.
