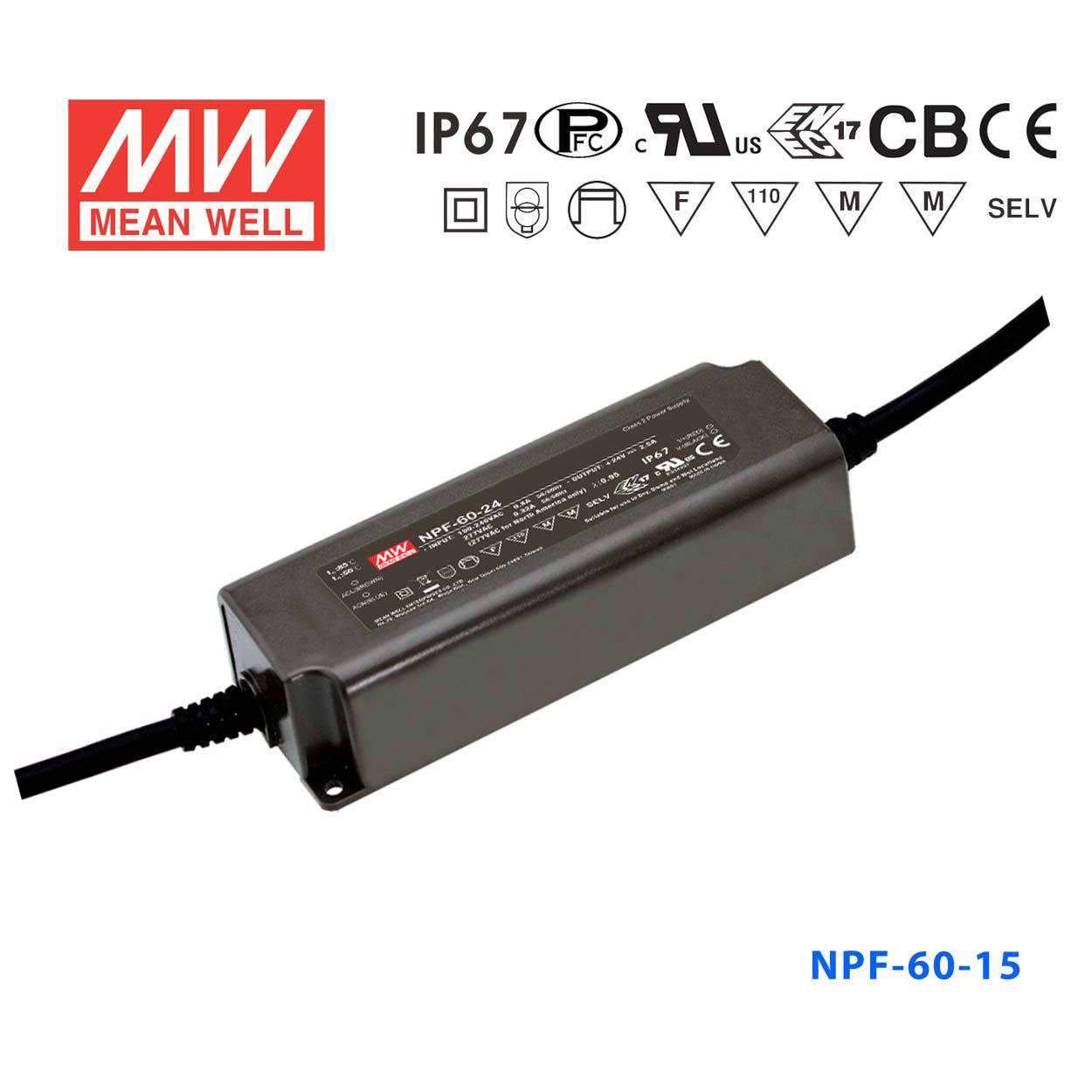

Mean Well NPF-60-15 Power Supply 60W 15V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NPF-60-15 be used outdoors in a waterproof enclosure for pathway lighting?
The NPF-60-15 is rated IP67 so it is dust-tight and can withstand temporary submersion, making it suitable for outdoor pathway or landscape lighting installations without an additional enclosure. It operates from -40°C to +85°C, covering cold-winter and hot-summer environments.
Is the NPF-60-15 appropriate for powering 15V LED drivers used in horticultural lighting?
Yes. The NPF-60-15 delivers 60W at 15V with a 4A output current, which suits compact horticultural or plant-growth LED modules that require a stable 15V constant-current supply. Its wide input range of 90–305VAC also supports various facility power configurations.
How does the NPF-60-15 compare to the NPF-60-12 and NPF-60-20 within the 60W family?
The three 60W variants differ only in output voltage and current: NPF-60-12 outputs 12V at 5A, NPF-60-15 outputs 15V at 4A, and NPF-60-20 outputs 20V at 3A. Select the model whose output voltage matches the rated forward voltage of your LED string or module.
What certifications does the NPF-60-15 carry?
The NPF-60-15 holds CB, CCC, CE, EAC, ENEC, and UL certifications, satisfying requirements for markets in North America, Europe, Russia, and China. It also carries a 5-year manufacturer warranty.
What is the CC voltage range of the NPF-60-15, and why does it matter?
The constant-current (CC) operating voltage range is 9–15V. The driver regulates current at 4A as long as the load voltage stays within this window, allowing it to accommodate LED strings with slight variation in forward voltage without losing current regulation.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $30.47 | View |
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
