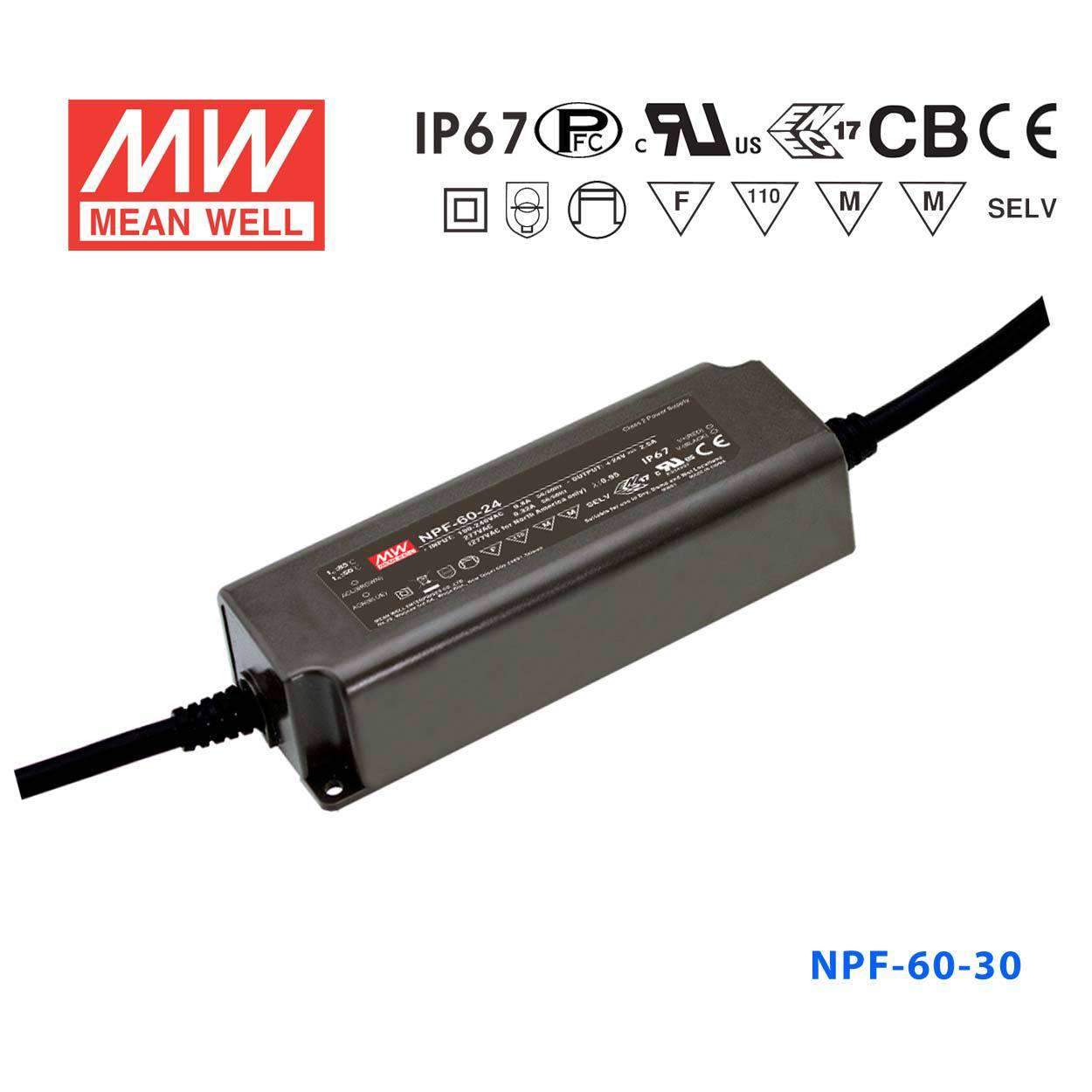

Mean Well NPF-60-30 Power Supply 60W 30V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage30 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the NPF-60-30 safe for use in outdoor horticultural tunnels where moisture is common?
Yes. The NPF-60-30 carries an IP67 waterproof rating, providing full dust protection and resistance to temporary submersion. Combined with its -40°C to +85°C operating temperature range, it is well suited for humid outdoor growing environments.
Can the NPF-60-30 power a 30V constant-current LED street light module?
The NPF-60-30 delivers 60W at 30V with a constant output current of 2A and a CC voltage range of 18–30V, which covers typical 30V LED street light modules. Its 90–305VAC input accommodates both single-phase residential and three-phase industrial power systems.
How does the NPF-60-30 compare to other 30V models in the NPF series?
The 30V NPF models differ by wattage: NPF-40-30 is 40.2W at 1.34A, NPF-60-30 is 60W at 2A, and NPF-90-30 is 90W at 3A. The NPF-120-30 steps up further to 120W at 4A. Select based on the total wattage the LED load demands.
Does the NPF-60-30 include dimming functionality?
No. The NPF-60-30 does not include dimming. If dimming is required at 30V and 60W, the NPF-60D-30 provides the same output specs with built-in 3-in-1 dimming support.
What is the physical footprint of the NPF-60-30?
The NPF-60-30 measures 150.0 × 53.0 × 35.0 mm and weighs 0.49 kg, sharing the same compact form factor as all other NPF-60 variants regardless of output voltage.
