Over 15 years experience of providing support of MEAN WELL Power Supplies

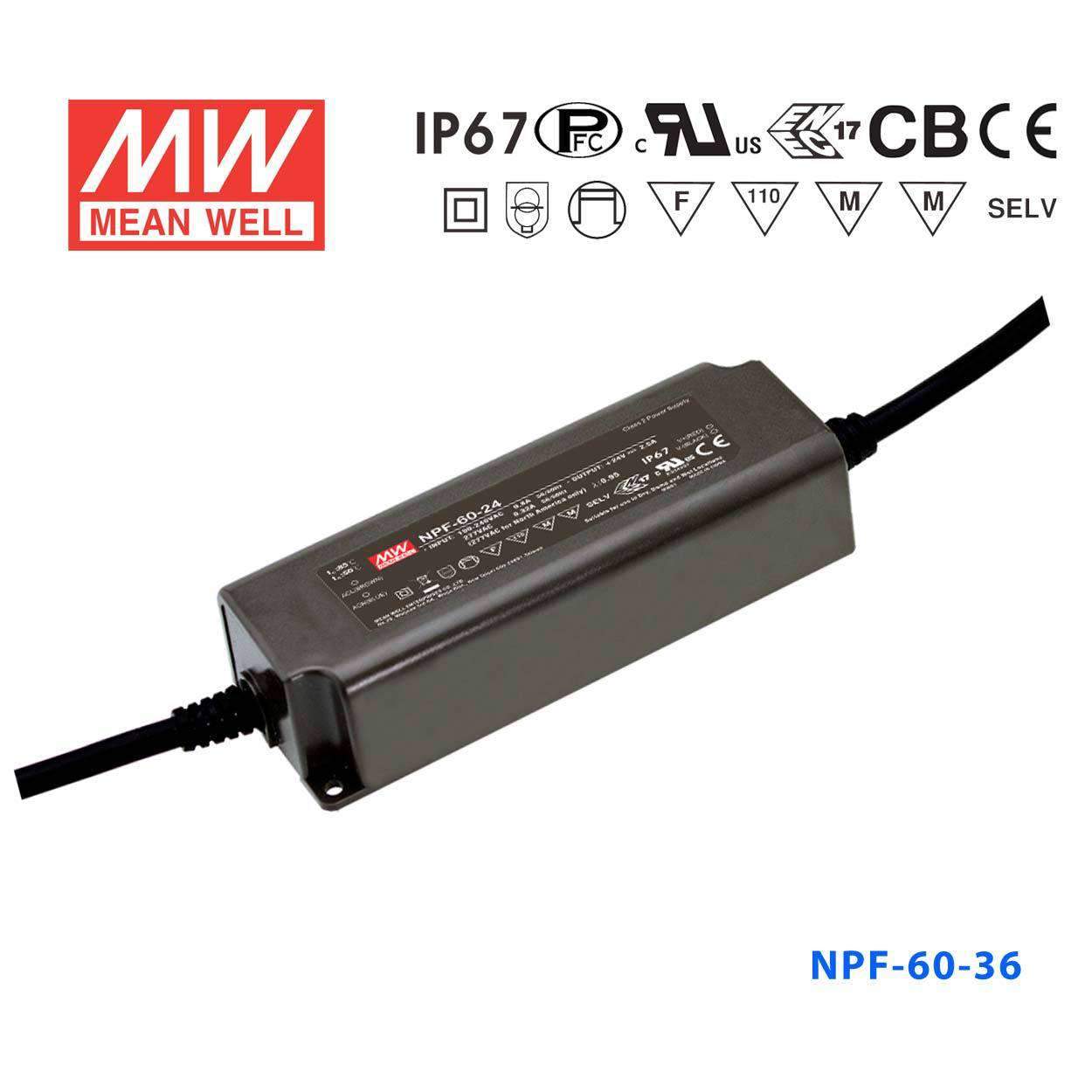

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well NPF-60-36 Power Supply 60W 36V
The NPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60.12 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Can the NPF-60-36 operate reliably in cold storage facilities with temperatures near -40°C?
Yes. The NPF-60-36 is rated for operation from -40°C to +85°C, making it appropriate for cold storage or freezer facility lighting. Its IP67 rating also protects against condensation and washdown moisture common in food-industry environments.
Is the NPF-60-36 a good match for 36V LED modules used in industrial task lighting?
The NPF-60-36 delivers 60.12W at 36V with a constant output of 1.67A, which suits 36V LED modules designed for high-bay or industrial task lighting where higher voltage strings reduce current and resistive losses over longer runs. Its CC voltage range is 21–36V.
How does the NPF-60-36 differ from the NPF-90-36 and NPF-120-36?
All three output 36V but at different power levels: NPF-60-36 is 60.12W at 1.67A, NPF-90-36 is 90W at 2.5A, and NPF-120-36 is 122.4W at 3.4A. Choose the NPF-60-36 for LED loads up to approximately 60W and step up to the 90W or 120W model for higher-wattage arrays.
What certifications apply to the NPF-60-36?
The NPF-60-36 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering major markets in North America, Europe, and Asia. It includes a 5-year manufacturer warranty.
Does the NPF-60-36 support dimming?
No. The NPF-60-36 has no built-in dimming. The NPF-60D-36 offers the same 60.12W, 36V, 1.67A output with built-in 3-in-1 dimming if adjustable output is needed.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $30.47 | View |
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
