Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

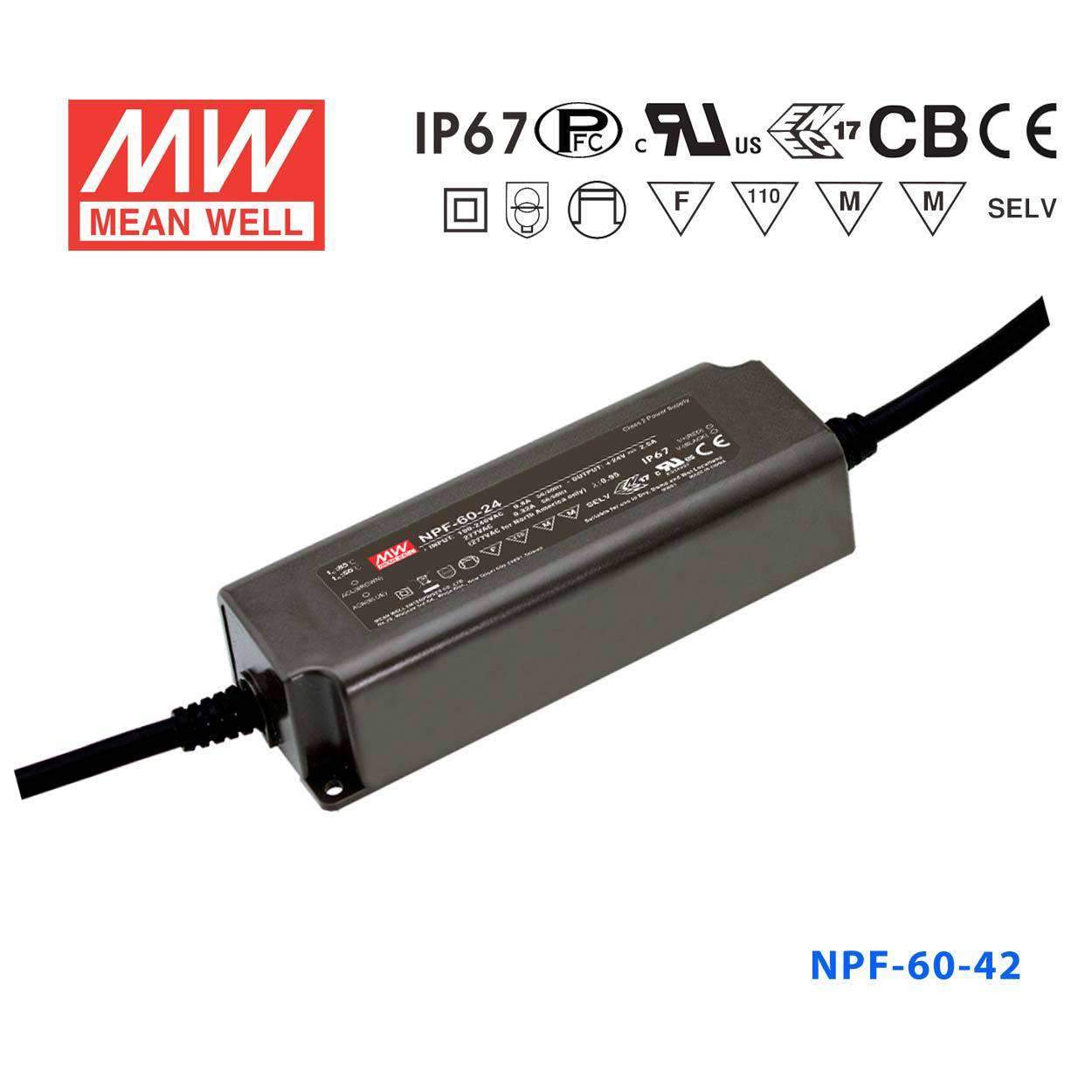

Mean Well NPF-60-42 Power Supply 60W 42V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60.06 Watt
-
Output Voltage42 Volt
-
Rated Current1.43 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NPF-60-42 survive outdoor installation in direct rainfall?
Yes. The NPF-60-42 is IP67-rated, meaning it is fully sealed against dust and protected against temporary immersion in water up to 1 metre. Its -40°C to +85°C operating range further supports outdoor deployment across a wide range of climates.
What LED systems are a good fit for the NPF-60-42?
The NPF-60-42 outputs 60.06W at 42V with a constant current of 1.43A and a CC voltage range of 25–42V, making it suitable for mid-voltage LED modules such as those used in outdoor area lighting fixtures, architectural facade lighting, or industrial panel illumination that operates in the 25–42V forward voltage range.
How does the NPF-60-42 compare to NPF-40-42 and NPF-90-42?
The 42V variants in the NPF series span three power levels: NPF-40-42 at 40.32W and 0.96A, NPF-60-42 at 60.06W and 1.43A, and NPF-90-42 at 90.3W and 2.15A. Pick the wattage tier that covers the LED load with a safe margin.
Is there a dimmable version of the NPF-60-42?
Yes. The NPF-60D-42 matches the NPF-60-42 electrically (60.06W, 42V, 1.43A, IP67) and adds built-in 3-in-1 dimming via PWM, 0–10V, or resistance control.
Does the NPF-60-42 require a separate ground wire?
No. The NPF-60-42 is a Class II device with a fully isolated plastic enclosure and no functional ground (FG) terminal, so no earth ground connection is needed.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $30.47 | View |
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
