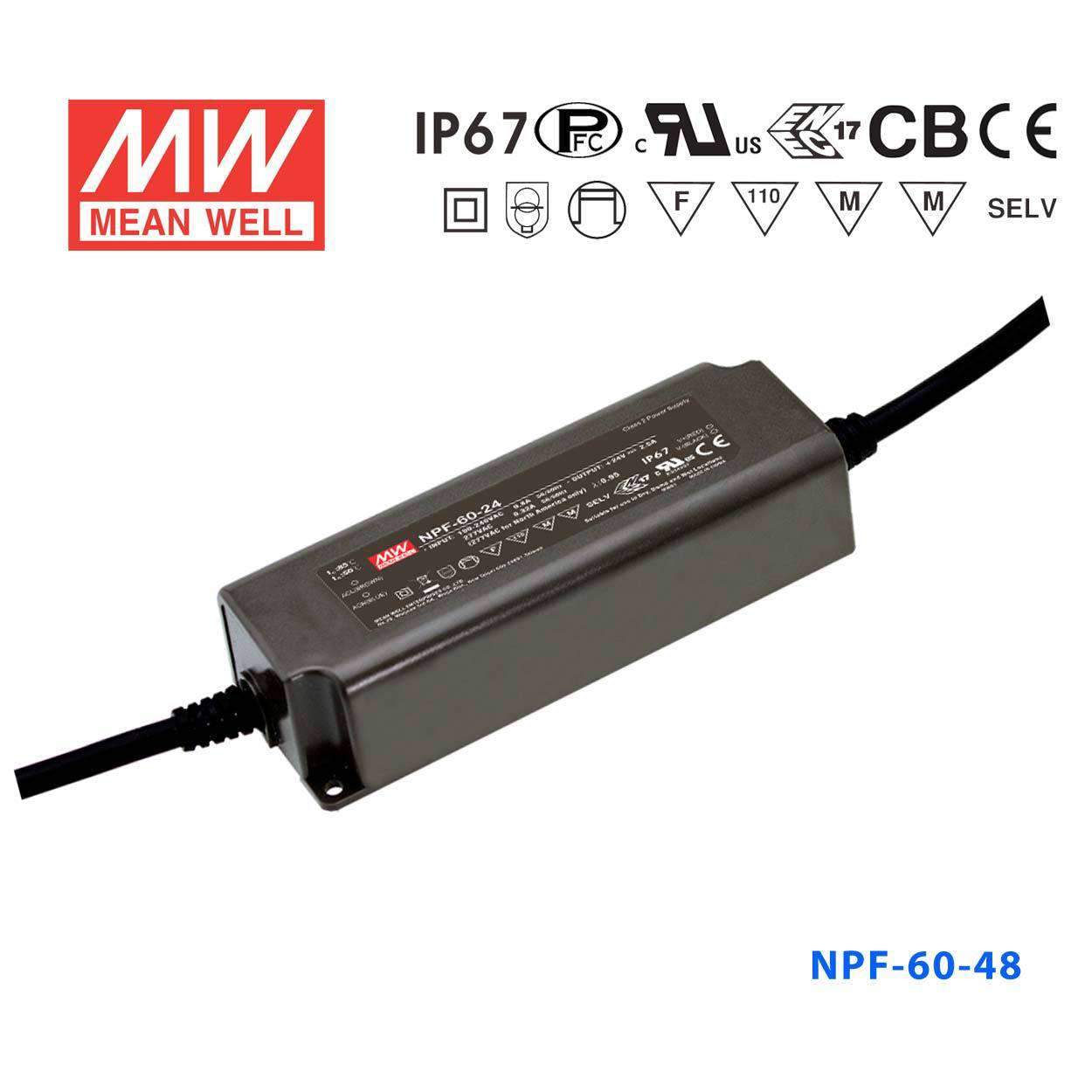

Mean Well NPF-60-48 Power Supply 60W 48V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.15W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending] |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SVT 18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the NPF-60-48 be installed without a weatherproof enclosure in outdoor signage?
Yes. The NPF-60-48 is rated IP67, providing complete dust ingress protection and resistance to temporary water immersion, so it can be installed in outdoor sign cabinets or exposed lighting channels without an additional waterproof housing. The operating range is -40°C to +85°C.
Is the NPF-60-48 appropriate for powering 48V LED panels in industrial inspection systems?
The NPF-60-48 provides 60W at 48V with a constant output current of 1.25A and a CC voltage range of 28–48V, which matches many 48V industrial LED inspection or machine vision panels. Its UL certification supports use in North American industrial facilities.
How does the NPF-60-48 compare to other 48V models in the NPF series?
At 48V, the NPF series offers NPF-40-48 (40.32W, 0.84A), NPF-60-48 (60W, 1.25A), NPF-90-48 (90.24W, 1.88A), and NPF-120-48 (120W, 2.5A). The NPF-60-48 sits in the mid-range tier, suitable for loads up to 60W.
Does the NPF-60-48 have a dimmable counterpart?
Yes. The NPF-60D-48 has identical output specs (60W, 48V, 1.25A, IP67) and adds built-in 3-in-1 dimming support for PWM, 0–10V, and resistance dimming methods.
What are the physical dimensions of the NPF-60-48?
The NPF-60-48 measures 150.0 × 53.0 × 35.0 mm and weighs 0.49 kg, consistent with all other NPF-60 voltage variants.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-54 Power Supply 60W 54V | 60.48W | 54V | 1.12A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
