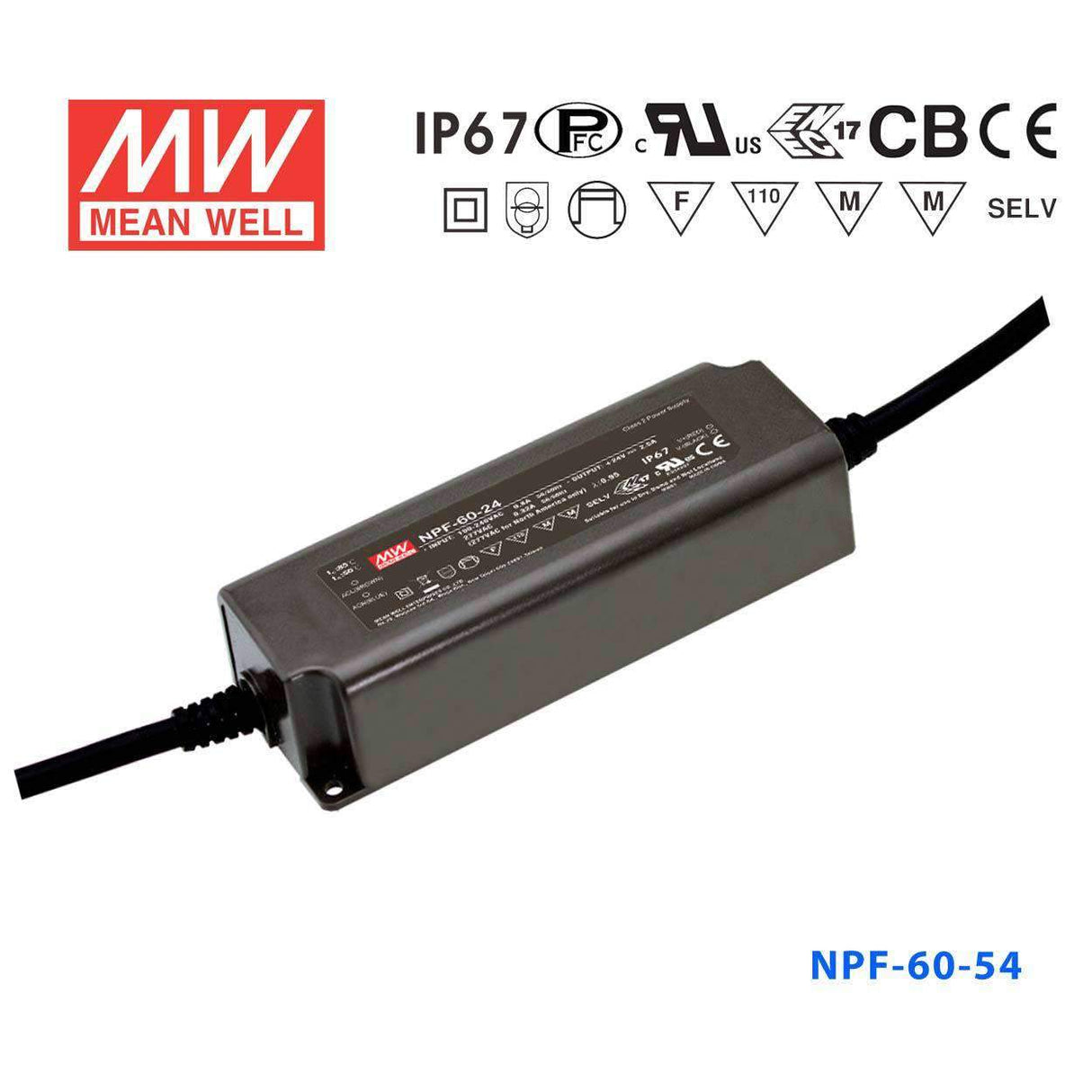

Mean Well NPF-60-54 Power Supply 60W 54V
The NPF-60 is a 60W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
Is the NPF-60-54 rated for outdoor use in wet locations?
Yes. The NPF-60-54 carries an IP67 rating, protecting it against dust and temporary water immersion. Its -40°C to +85°C operating temperature supports outdoor installations in both hot and cold climates without an additional protective enclosure.
What types of 54V LED fixtures can the NPF-60-54 drive?
The NPF-60-54 delivers 60.48W at 54V with a constant output current of 1.12A and a CC voltage range of 32–54V. It is suited for high-voltage LED strings used in outdoor bollard lighting, architectural wash lighting, or industrial bay fixtures that operate in the 32–54V forward voltage window.
How does the NPF-60-54 compare to the NPF-60-48 and NPF-60-42 within the 60W family?
The three high-voltage 60W variants are: NPF-60-42 at 60.06W and 1.43A (CC range 25–42V), NPF-60-48 at 60W and 1.25A (CC range 28–48V), and NPF-60-54 at 60.48W and 1.12A (CC range 32–54V). Each targets a different LED string voltage; choose based on the forward voltage of your LED load.
Is there a dimmable version of the NPF-60-54?
Yes. The NPF-60D-54 shares identical electrical specs (60.48W, 54V, 1.12A, IP67) and adds built-in 3-in-1 dimming for PWM, 0–10V, and resistance control signals.
What certifications does the NPF-60-54 hold?
The NPF-60-54 is certified to CB, CCC, CE, EAC, ENEC, and UL standards, covering North American, European, and Asian compliance requirements. It includes a 5-year manufacturer warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other NPF-60 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well NPF-60-48 Power Supply 60W 48V | 60W | 48V | 1.25A | IP67 | $30.47 | View |
| Mean Well NPF-60-42 Power Supply 60W 42V | 60.06W | 42V | 1.43A | IP67 | $30.47 | View |
| Mean Well NPF-60-36 Power Supply 60W 36V | 60.12W | 36V | 1.67A | IP67 | $30.47 | View |
| Mean Well NPF-60-30 Power Supply 60W 30V | 60W | 30V | 2A | IP67 | $30.47 | View |
| Mean Well NPF-60-24 Power Supply 60W 24V | 60W | 24V | 2.5A | IP67 | $33.17 | View |
| Mean Well NPF-60-20 Power Supply 60W 20V | 60W | 20V | 3A | IP67 | $30.47 | View |
| Mean Well NPF-60-15 Power Supply 60W 15V | 60W | 15V | 4A | IP67 | $30.47 | View |
| Mean Well NPF-60-12 Power Supply 60W 12V | 60W | 12V | 5A | IP67 | $30.47 | View |
