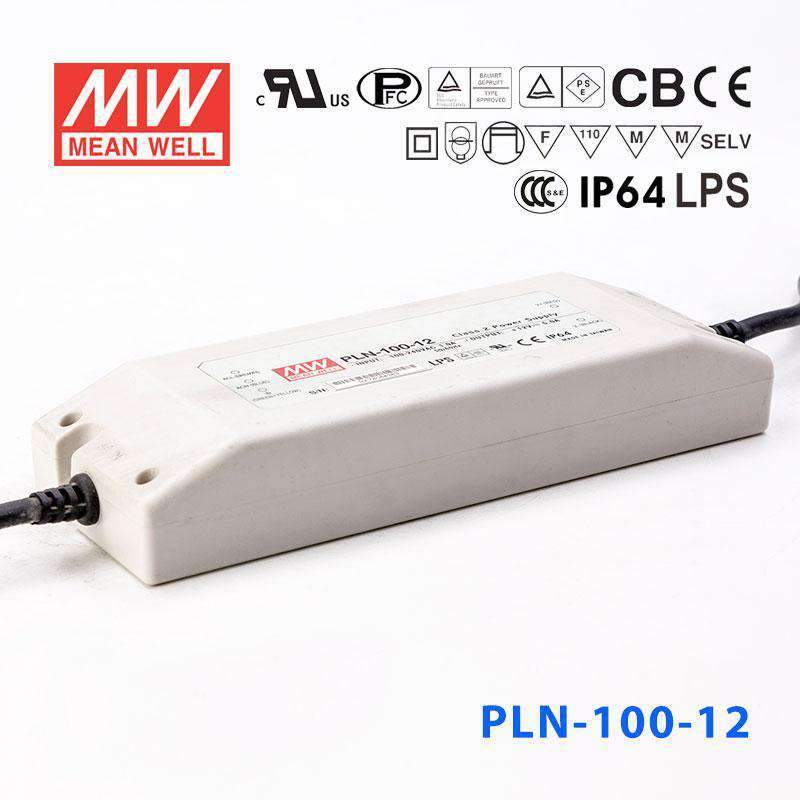

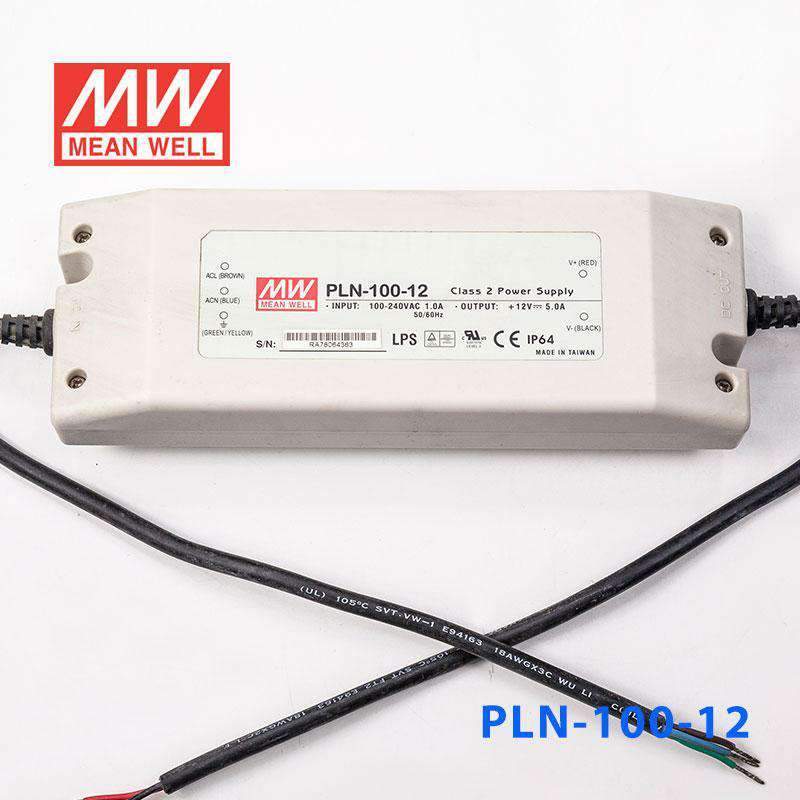

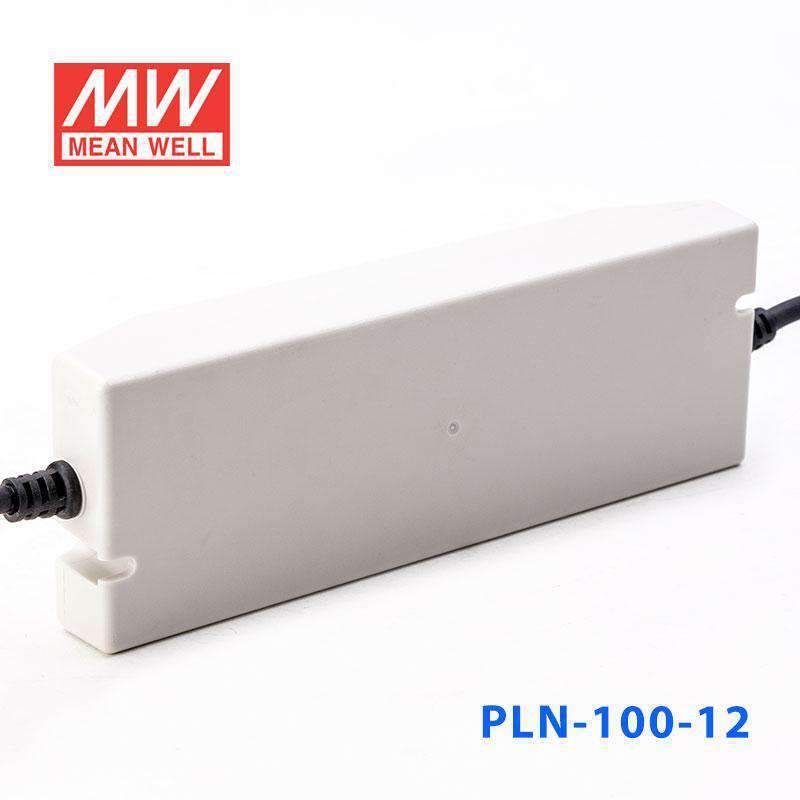

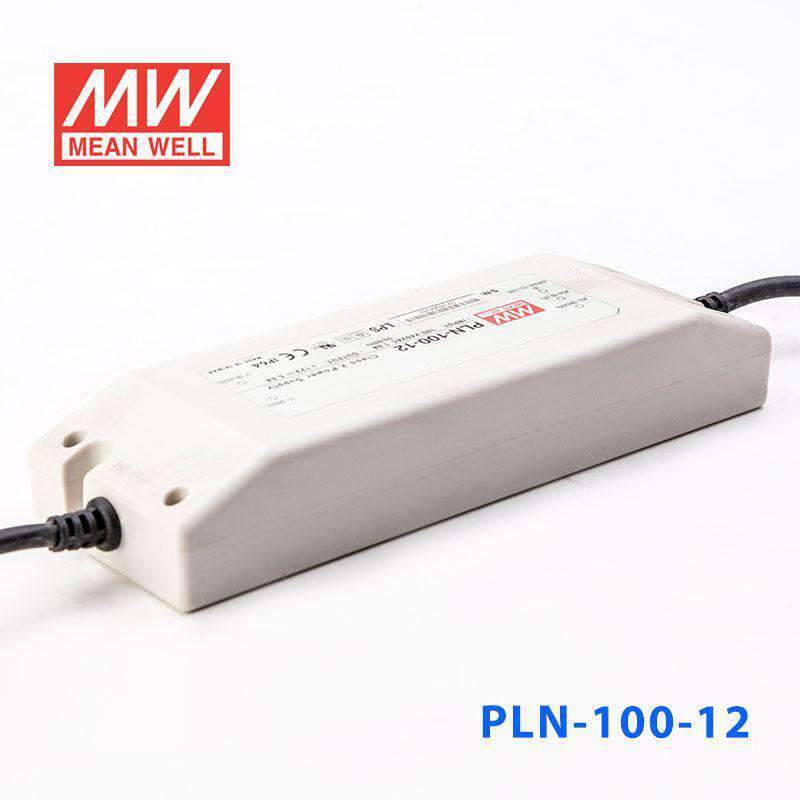

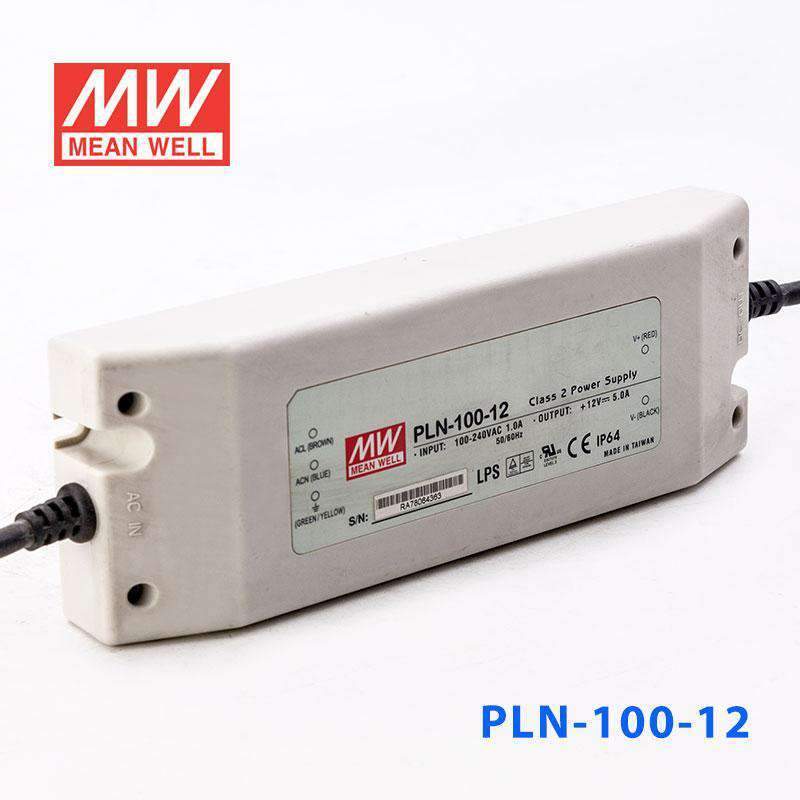

Mean Well PLN-100-12 Power Supply 60W 12V - IP64
The PLN-100 is a 100W Mean Well power converter (input range: 90~295VAC, operating temperature: -30~+50℃).
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+50℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPLN Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length7.87 in
-
Width2.78 in
-
Height1.38 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well PLN-100-12 for 12V LED signage?
Yes, this model is suitable for 12V LED signage as long as the load matches its 12V output and stays within 60W and 5A. Its IP64 rating and fully isolated plastic case also make it a practical option for signage applications where dust and splashing water are a concern.
Is the PLN-100-12 a good fit for 12V outdoor lighting?
It can be used for 12V lighting in environments where an IP64 power supply is appropriate. IP64 means protection against dust ingress and splashing water, so it is better suited to protected outdoor or damp locations than fully exposed wet conditions.
Can this power supply run 12V LED strip lighting?
It can power 12V LED strip lighting if the strip's total load does not exceed 60W or 5A and the strip's electrical requirements match this 12V output model. For sizing, maximum strip length = 60W divided by your strip's rated watts per meter, so check your strip rated power per meter before choosing the total length.
Is the PLN-100-12 suitable for signage or lighting in cold or hot environments?
This unit is rated for operation from -30°C to +50°C, so it can be used across a wide temperature range if the installation stays within those limits. That makes it more suitable for challenging indoor or sheltered outdoor conditions than products with narrower temperature ratings.
Can I use this for a 12V lighting load that needs up to 5A?
Yes, this model is rated for 12V output at up to 5A, with 60W total output power. That means it fits 12V lighting applications whose total demand is at or below 60W, and you should keep the connected load within that limit.
Is the IP64 rating enough for wet or exposed outdoor locations?
IP64 means the unit is protected against dust and splashing water, but it is not the same as a higher waterproof rating. It is better suited to protected outdoor use, signage, or damp environments where direct water exposure is limited.
