Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

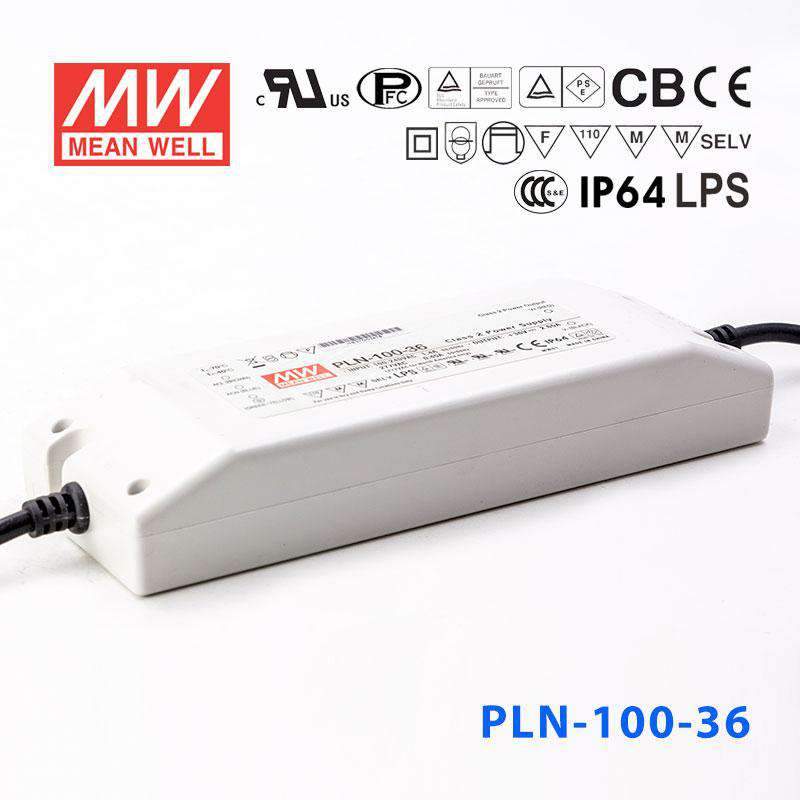

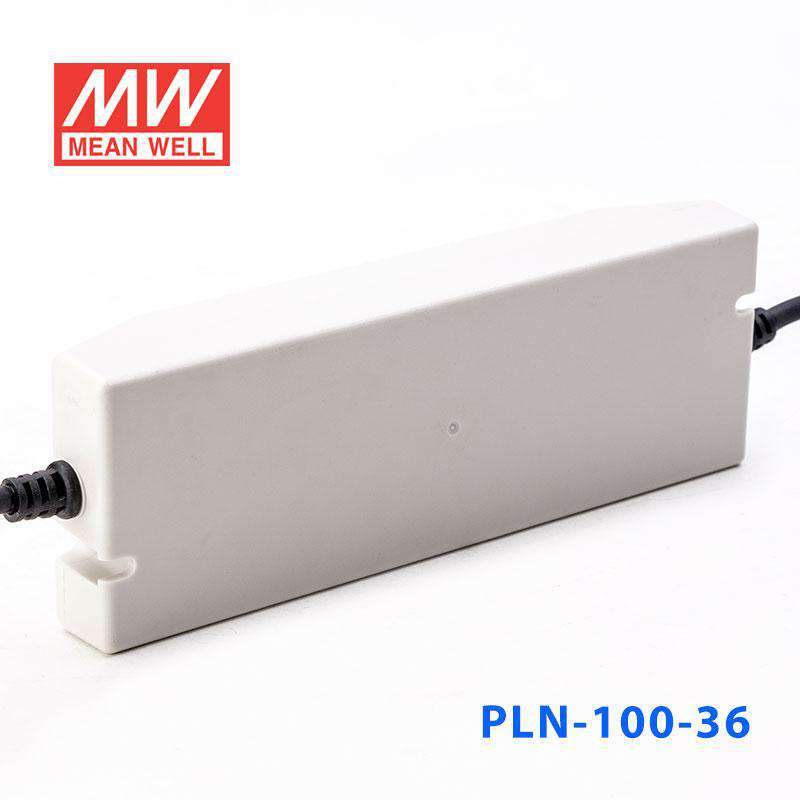

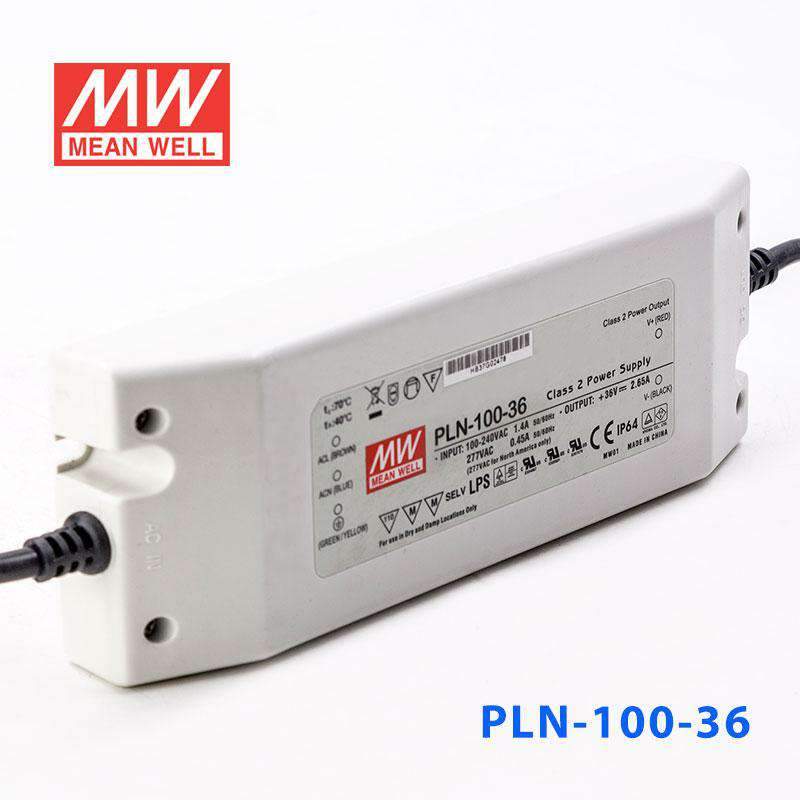

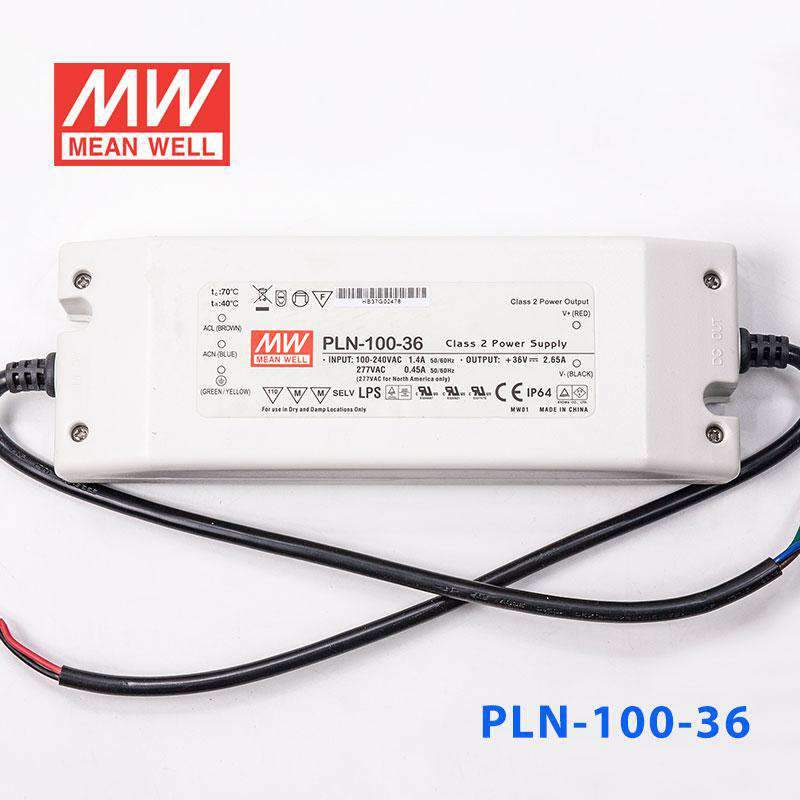

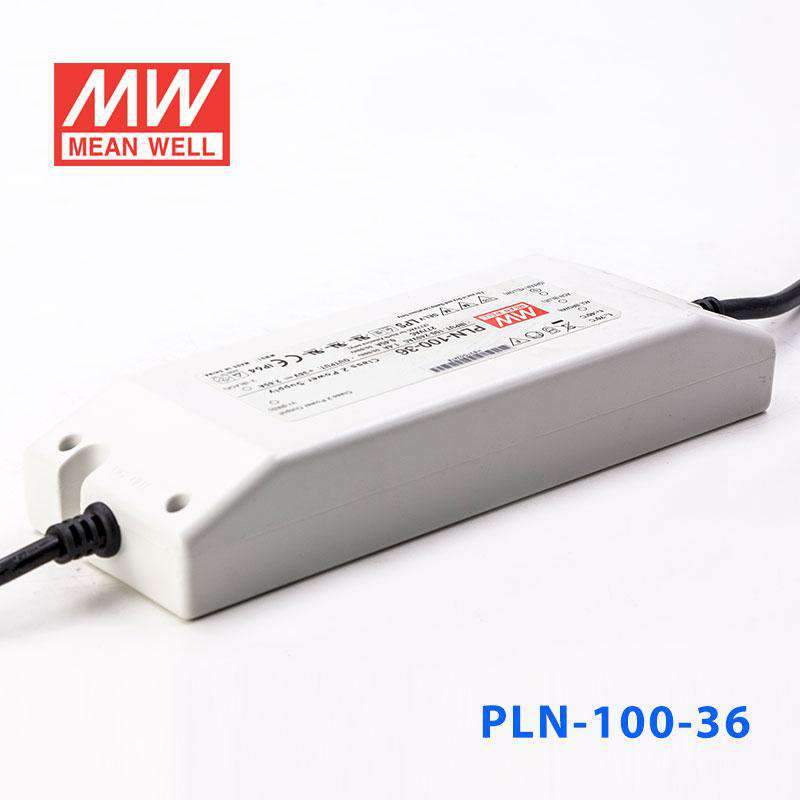

Mean Well PLN-100-36 Power Supply 100W 36V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-36

$48.14 USD ~~$168.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

95.4 Watt
Output Voltage

36 Volt
Rated Current

2.65 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-36 for 36V LED signage lighting?

Yes, this driver is stated to be suitable for signage applications and provides 36V output up to 95.4W and 2.65A. It should be paired only with 36V lighting loads that stay within that output capacity.

Is the PLN-100-36 suitable for 36V LED strip or linear lighting?

It can be used for 36V LED strip or linear lighting if the load is rated for 36V and does not exceed 95.4W or 2.65A. The CC voltage range is 27-36V, so the lighting load needs to be compatible with that driver range.

Can this model power higher-voltage accent lighting where lower current is preferred?

It is a 36V option with a 2.65A output, so it suits lighting applications that are designed around a higher output voltage and lower current than the 12V, 15V, 20V, 24V, or 27V versions. The maximum output power is 95.4W.

How much 36V LED strip can the PLN-100-36 run?

The sizing formula is based on the 95.4W maximum output: length = 95.4W ÷ your strip's rated power per meter. Check your strip rated power per meter and confirm the total load stays within the 2.65A output limit.

Can the PLN-100-36 be used in outdoor or splash-exposed locations?

Its IP64 enclosure is designed for dust protection and splashing water resistance, so it is suitable for outdoor or wet-area use where the driver will not be submerged. The specified operating temperature range is -30°C to +50°C.

How does the PLN-100-36 compare with other PLN series drivers?

The matching PLN-100 siblings are 12V 60W 5A, 15V 75W 5A, 20V 96W 4.8A, 24V 96W 4A, 27V 95.85W 3.55A, and 48V 96W 2A. The broader PLN family also includes PLN-20, PLN-30, PLN-45, and PLN-60 variants covering 19.2W to 62.4W across multiple voltages.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-100-24 Power Supply 100W 24V - IP64	96W	24V	4A	IP64	$49.62	View
Mean Well PLN-100-48 Power Supply 100W 48V - IP64	96W	48V	2A	IP64	$49.62	View
Mean Well PLN-100-27 Power Supply 100W 27V - IP64	95.85W	27V	3.55A	IP64	$49.62	View
Mean Well PLN-100-20 Power Supply 100W 20V - IP64	96W	20V	4.8A	IP64	$48.14	View
Mean Well PLN-100-15 Power Supply 75W 15V - IP64	75W	15V	5A	IP64	$48.14	View
Mean Well PLN-100-12 Power Supply 60W 12V - IP64	60W	12V	5A	IP64	$48.14	View
