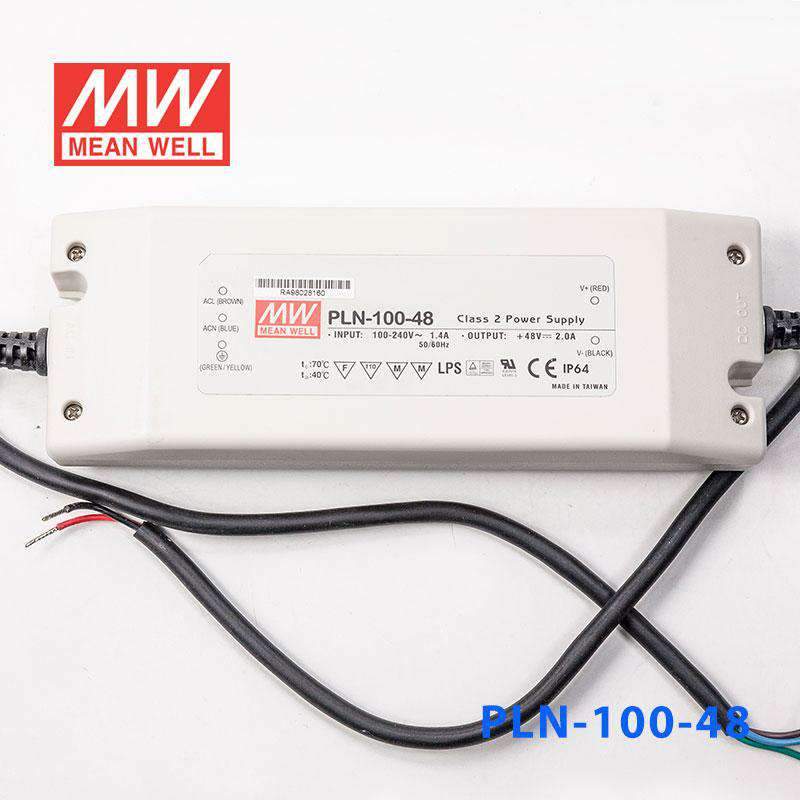

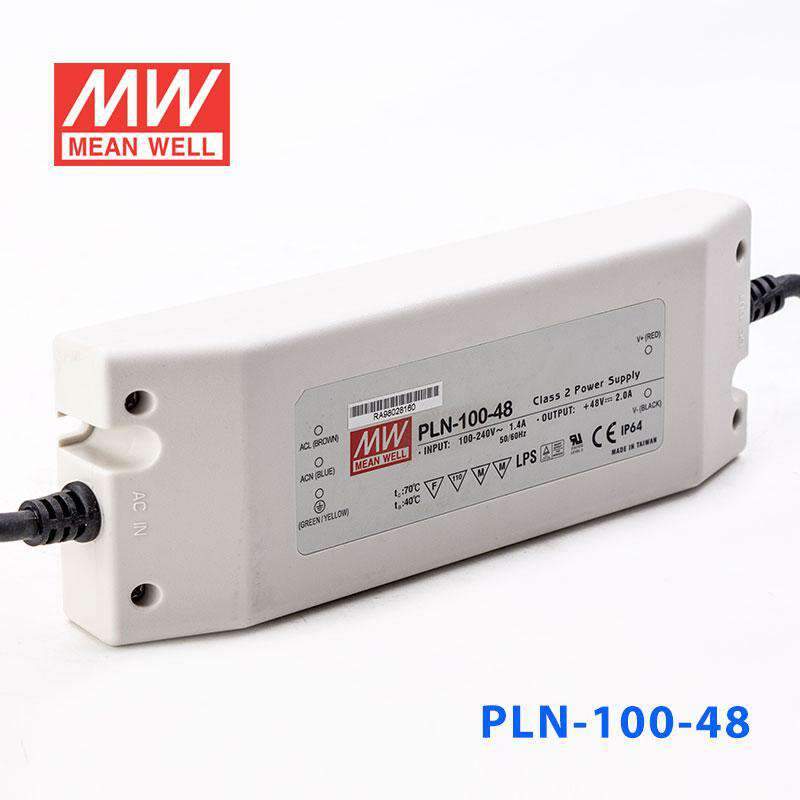

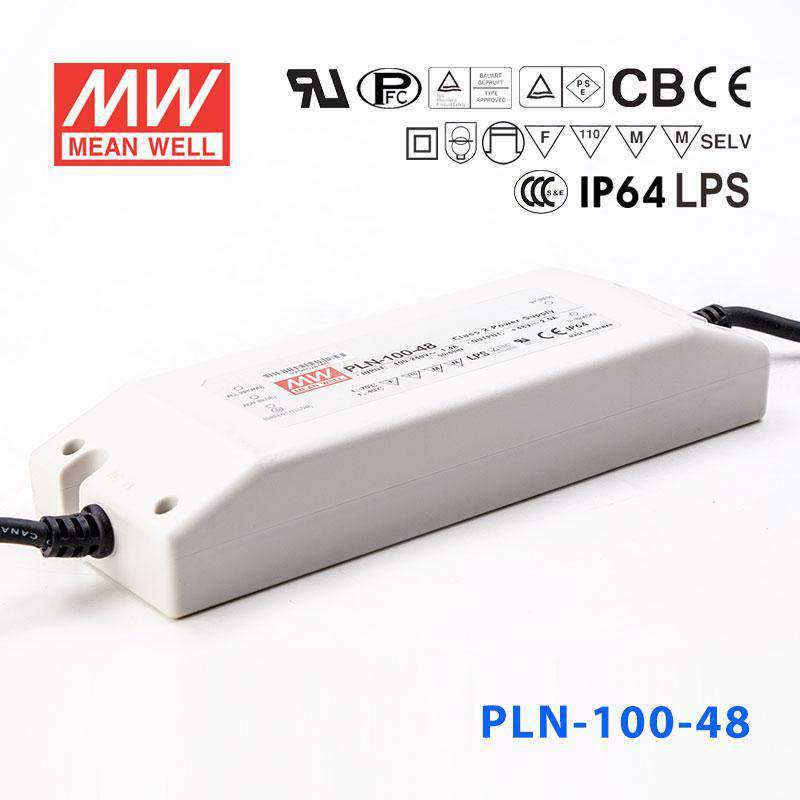

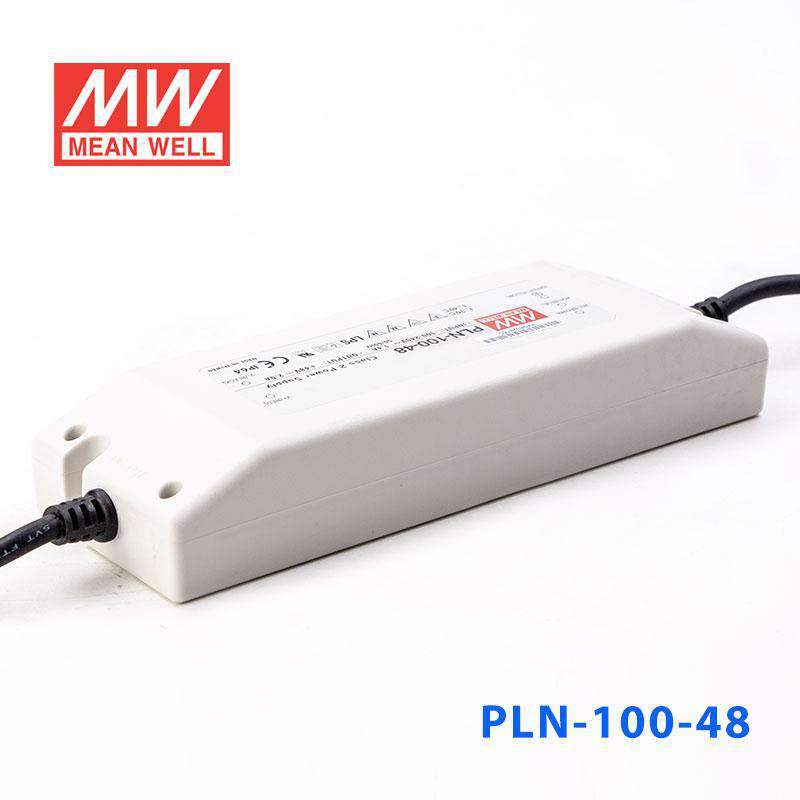

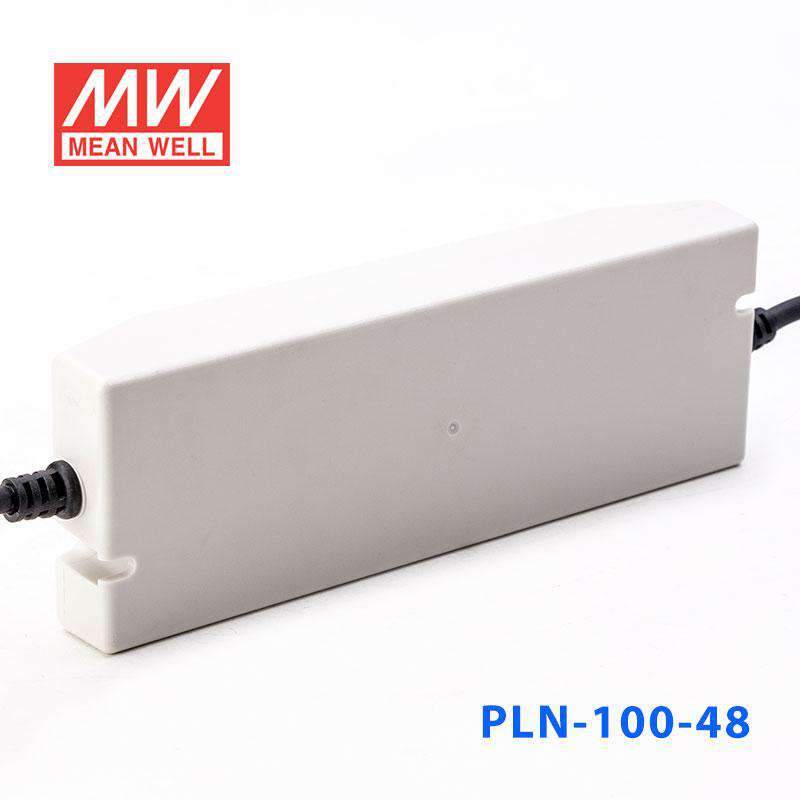

Mean Well PLN-100-48 Power Supply 100W 48V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-100-48

$49.62 USD ~~$168.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 40A at 230VAC
DC adjustment range	85%~100% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~102% constant current limiting, auto-recovery
Over voltage protection	107%~135% rated output voltage
Setup, rise, hold up time	1200ms, 80ms, 60ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, EN60950-1, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (31cm)
Connection Output	UL rated, SVT 18AWGx2C (31cm)
Dimension (LxWxH) (mm)	200x 70.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

96 Watt
Output Voltage

48 Volt
Rated Current

2 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.87 in
Width

2.78 in
Height

1.38 in
Weight

1.15 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-100-48 for 48V LED strip lighting in a commercial display?

It can be used with 48V LED lighting loads that fit its 96W, 2A output and stay within the 36-48V constant-current range. For display lighting, confirm the 48V product is compatible with constant-current operation rather than assuming any 48V strip will work.

Is the PLN-100-48 suitable for illuminated signage?

Yes, the listed features specifically say it is suitable for signage applications. Its 48V output, 96W capacity, and IP64 enclosure make it a fit for sign lighting loads that match the driver's electrical requirements.

Can this driver run longer 48V architectural lighting runs than lower-power PLN models?

Within the PLN series, this is the highest-power 48V version listed at 96W and 2A. That gives it more available output than the PLN-20-48 at 20.2W, the PLN-30-48 at 30.24W, the PLN-45-48 at 45.6W, and the PLN-60-48 at 62.4W for compatible 48V lighting loads.

How much 48V LED strip can the PLN-100-48 support?

Use the strip-length formula 96W divided by your strip's rated watts per meter. For example, the maximum supported length is 96W / W per meter, and you should check your strip rated power per meter and confirm it is a 48V load compatible with this driver's operating mode.

Can the PLN-100-48 be used in outdoor or damp locations?

Its IP64 rating means the enclosure is intended for environments where dust and splashing water are concerns, rather than full water immersion. The operating temperature range is -30°C to +50°C, so the location also needs to stay within that range.
